Product description: Voltcraft PM-40 measuring adapter
An adapter used tomeasurethe output voltage and current drawnby a device connected to a USB port. The Voltcraft PM-40 should be placed between the USB connector and the receiver. The meter has a USB type A socket to which you connect the device you want to measure, and on the other side there is a microUSB socket for plugging in the includedcable. On the side of the casing there is a switch to selectone of three operating modes. The PM-40 enables manual selection of displayed values: voltage and current.

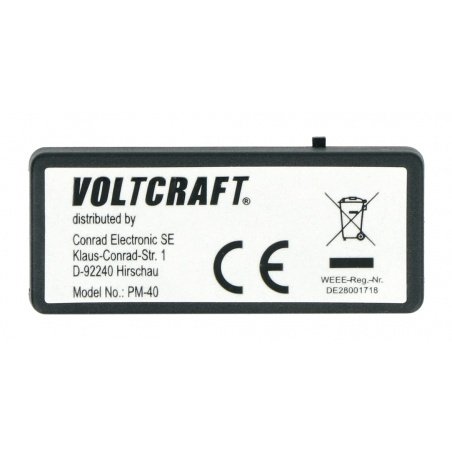

Voltcraft PM-40 measuring adapter.
Specification of the Voltcraft PM-40 measuring adapter
| Parameter | Range |
|---|---|
| Minimum measurement range of DC voltage | 3,5 V |
| Maximum measuring range of DC voltage | 5,8 V |
| Minimum measuring range of AC voltage | 0,03 A |
| Maximum measuring range of AC voltage | 3 A |
| Resolution of voltage measurement | 10 mV |
| Resolution for current measurement | 10 mA |
| Interfaces | USB 2.0, microUSB |
| Connection power | up to 15 W |
| Working environment temperature | 0°C to 70°C |
| Environmental humidity | 0% to 80% |
| Dimensions | 44 x 19 x 19 mm |
| Weight | 9 g |
Elements of the meter set.
Three Voltcraft PM-40 operating modes
- D- connection/transmission - mode used for measuring current consumption of a USB flash drive, USB hard drive or other USB device. During the measurement data transmission is possible (USB2.0/1.1)
- I- charging an Apple device (no data connection possible). This mode is used to provide a higher charging current to the Apple device
- S- charging an Android device (no data connection possible). This mode is used to supply an Android device (e.g. smartphone or tablet) with a higher charging current
Contents of the set
- Voltcraft PM-40 measuring adapter
- USB cable type A - microUSB
