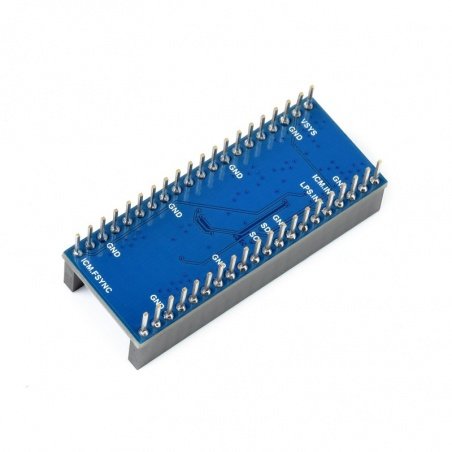

10 DoF IMU sensor - module with accelerometer, gyroscope and barometer - for Raspberry Pi Pico - Waveshare 19358

Index: WSR-18990 EAN: 5904422371180
An extension to the Raspberry Pi Pico from Waveshare in the form of a 10 DoF IMU sensor. It can be used to collect environmental data including temperature or barometric pressure. The module is based on ICM20948 and LPS22HB chips, which include an accelerometer, gyroscope, magnetometer and barometer. The resolution of the measurements is 16 bits.
10 DoF IMU sensor - module with accelerometer, gyroscope and barometer - for Raspberry Pi Pico -...
€26.02
€21.15 tax excl.
Available
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Waveshare

Product description: Sensor 10 DoF IMU - module with accelerometer, gyroscope and barometer - for Raspberry Pi Pico - Waveshare 19358

An extension to theRaspberry Pi Picofrom Waveshare in the form of a10 DoFsensorIMU. It can be used to collectenvironmentaldata includingtemperatureor barometric pressure. The module is based onICM20948andLPS22HBchips, which include an accelerometer,gyroscope, magnetometer and barometer. The resolution of the measurements is 16 bits.

Functional overview

  • Compatible withRaspberry Pi Pico
  • Equipped with 10 DoF IMU sensors - accelerometer, gyroscope, magnetometer and barometer
  • Uses I2C bus to communicate with main module
  • Programmed in C / C++ and MicroPython
  • Provides connectors for convenient connection to the Raspberry Pi Pico
  • Can be used to determine environmental parameters such as temperature, barometric pressure and spatial position
Czujnik 10 DoF IMU z akcelerometrem, żyroskopem i barometrem do Raspberry Pi Pico. Sensor 10 DoF IMU with accelerometer, gyroscope and barometer for Raspberry Pi Pico.Raspberry Pi Picomain module is not included in the kit, you can buy it separately from our store.

Moduł z interfejsem komunikacyjnym I2C.Module with I2C communication interface.

Compatible withRaspberry Pi Pico
Aproduct wikiis available on the manufacturer's website, which includes a user guide and a description of each pin of the overlay.

Technical specification

  • Operating voltage: 5 V
  • Communication interface: I2C bus
  • Accelerometer:
    • chip: ICM20948
    • resolution: 16 bits
    • measuring range: ±2 / ±4 / ±8 / ±16 g (configurable)
    • operating current: 68.9 µA
  • Gyroscope:
    • circuit: ICM20948
    • Resolution: 16 bits
    • measuring range: ±250 / ±500 / ±1000 / ±2000 °/s (configurable)
    • operating current: 1.23 mA
  • Magnetometer:
    • chip: ICM20948
    • Resolution: 16 bits
    • measuring range: ±4900 µT
    • operating current: 90 µA
  • Barometer:
    • circuit: LPS22HB
    • measuring range: from 260 hPa to 1260 hPa
    • accuracy of measurement: ±0,025 hPa
    • measuring speed: 1 Hz to 75 Hz
  • Linear voltage regulator:
    • RT9193-33: 3.3 V
    • RT9193-18: 1.8 V
  • Voltage converter: 4-channel, LSF0204PWR
  • Dimensions: 52 x 21 mm
