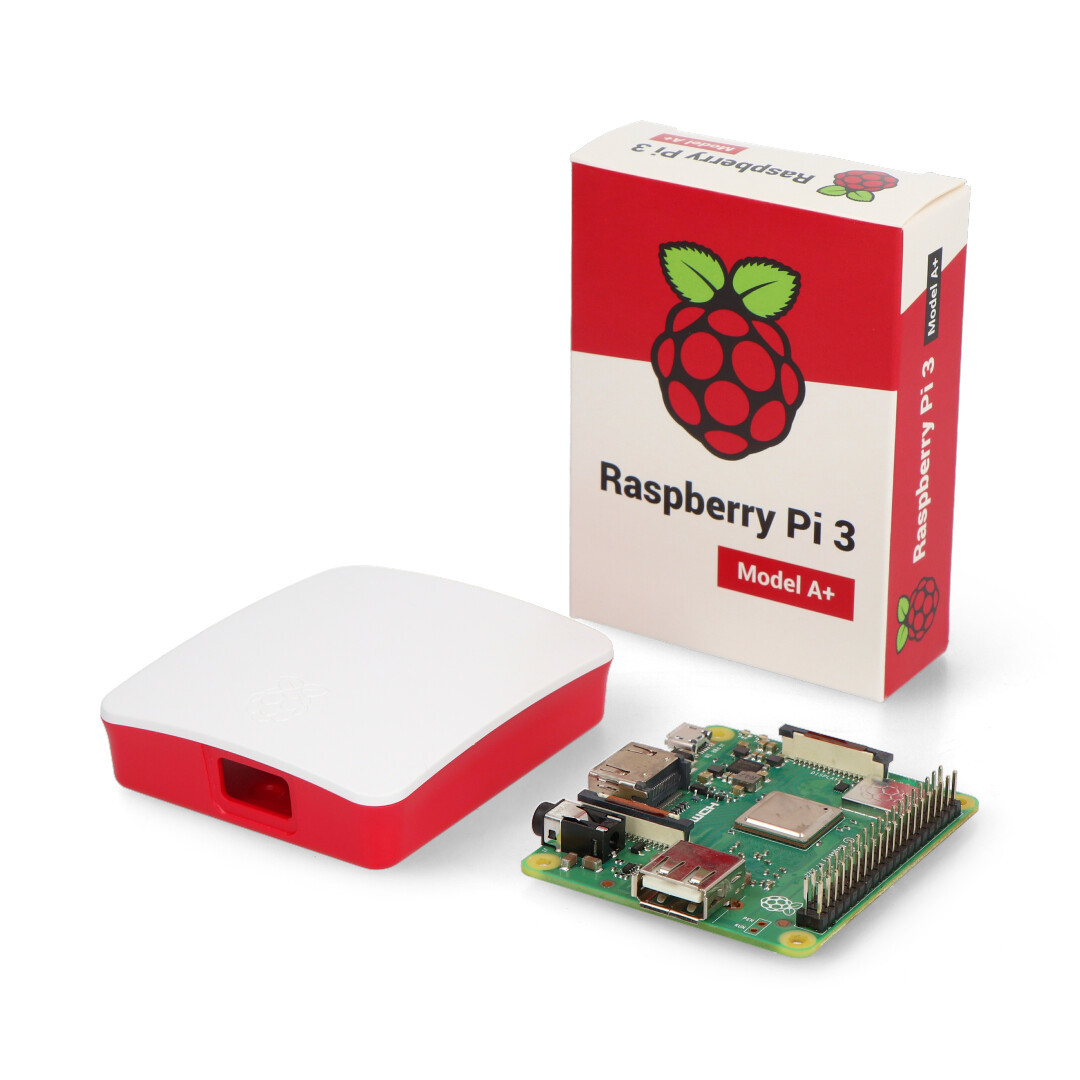

Product description: Raspberry Pi 3 model A+ WiFi Dual Band Bluetooth 512 MB RAM 1.4 GHz + free official case
The Raspberry Pi 3 Model A+ is a powerful minicomputer ideal for projects related to electronics, robotics, and IoT systems. Equipped with a Broadcom BCM2837B0 Cortex-A53 1.4 GHz processor, it offers enough computing power to handle a variety of applications. The A+ model is a simplified version of the Raspberry Pi 3B+, characterized by fewer ports, but greater performance and a lower price. The computer supports Dual Band WiFi (2.4 GHz and 5 GHz) and Bluetooth 4.2, which ensures fast wireless connections. It has one USB port, 40 GPIO pins, and HDMI and 3.5 mm audio connectors, making it an ideal solution for those who need a compact and flexible device. An official red and white case is also included as a free gift, which provides protection for the board and easy access to all ports and connectors. The housing made of durable ABS material has dimensions of 75 x 65 x 19 mm and allows for convenient disassembly of the flap, which increases the comfort of use.
Raspberry Pi 3 model A+ WiFi Dual Band Bluetooth 512 MB RAM 1.4 GHz + free official case.
The Raspberry Pi 3 Model A+ is a powerful minicomputer ideal for electronics, robotics, and IoT projects.Special Features
- Broadcom BCM2837B0 processor: 64-bit quad-core ARM Cortex-A53 with a frequency of 1.4 GHz ensures smooth system operation
- Dual Band WiFi: Supports 2.4GHz and 5GHz for higher data transmission speed
- Bluetooth 4.2: Built-in Bluetooth Low Energy (BLE) module for data transfer
- Comprehensive GPIO connectors: 40 GPIO pins for connecting sensors, motors and other devices
- Case included: red and white, provides protection and easy access to connectors
- Versatile: ideal for educational projects, IoT, robotics and home automation
Operating system
The Raspberry Pi disk is a microSD memory card . The operating system can be uploaded using a computer with a reader. Our store offers cards with the NOOBs program installed , which allows you to choose from the following systems when you first start it: Raspbian, Openelec, RaspBMC, OSMC Linux. Raspberry Pi A+ is compatible with the NOOBs system from version 2.9.0.
Power supply
The system uses a microUSB connector as a power source. The manufacturer recommends that the voltage supplied to the connector should be 5 V , while the current efficiency of the power supply used should be at least 2.5 A. Our offer includes dedicated power supplies .

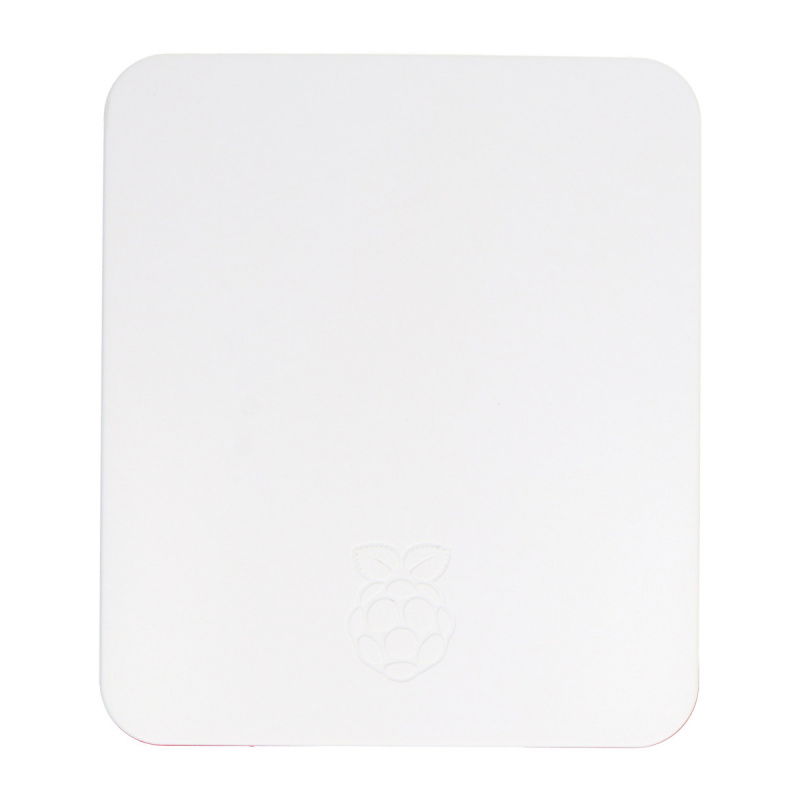

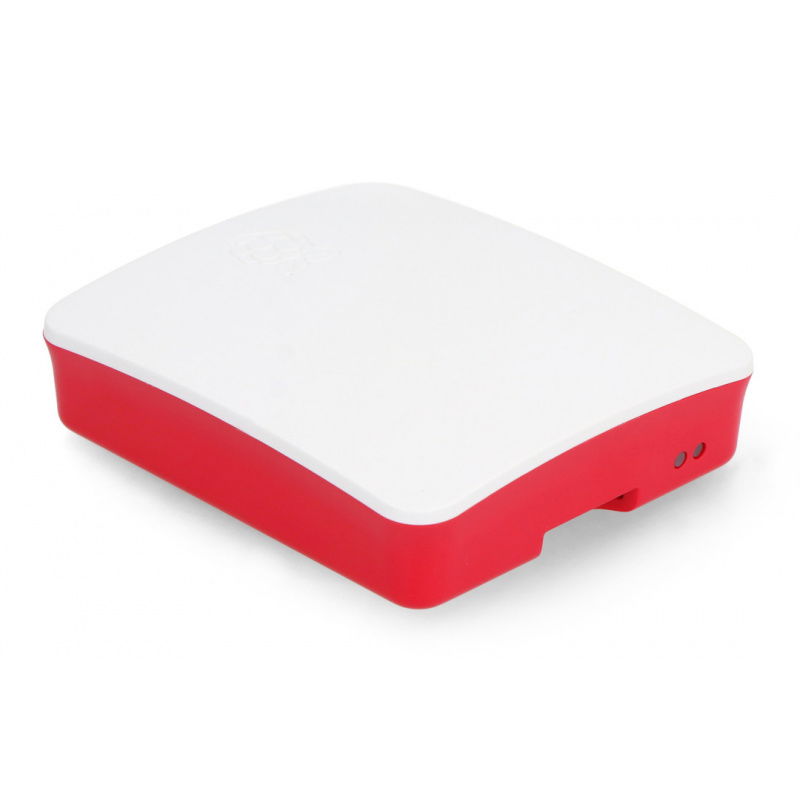

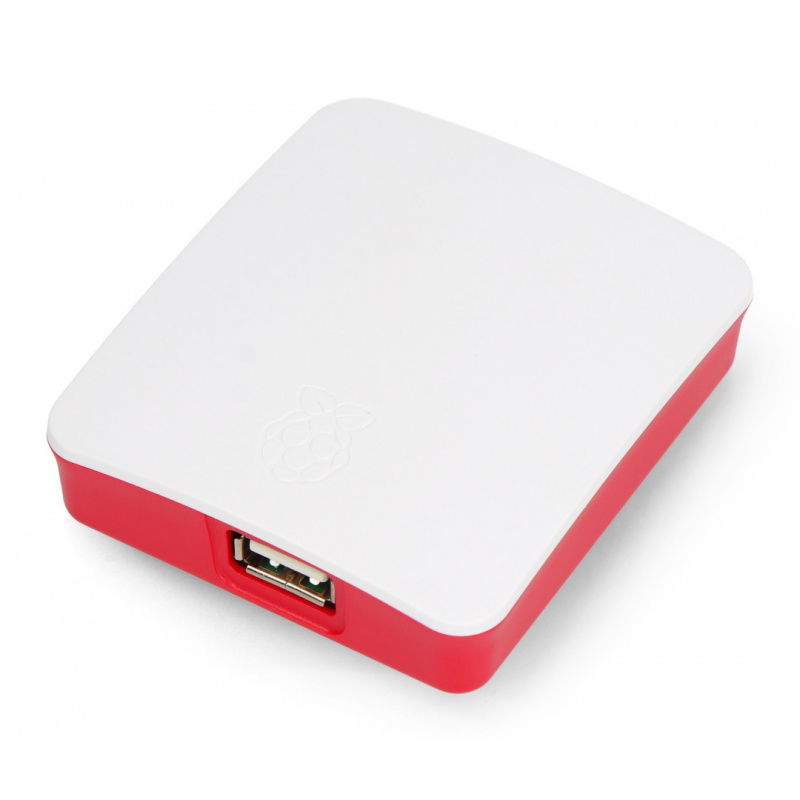

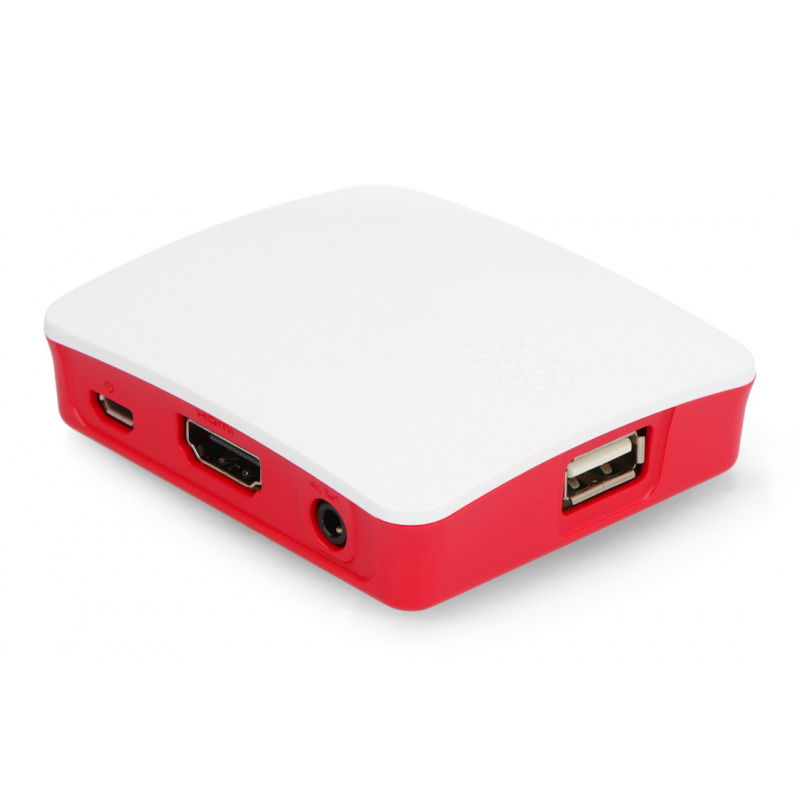

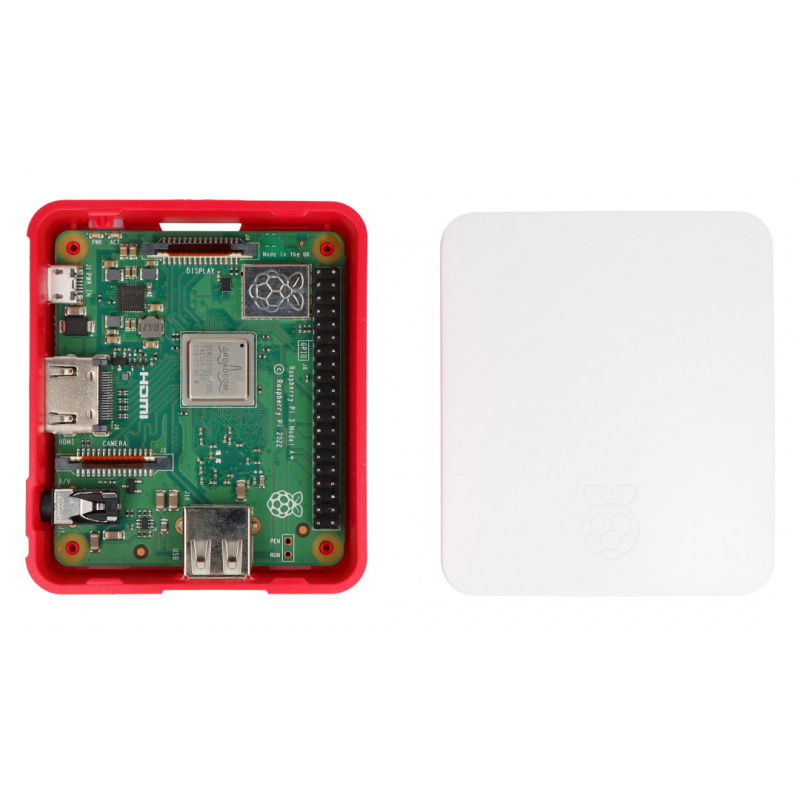

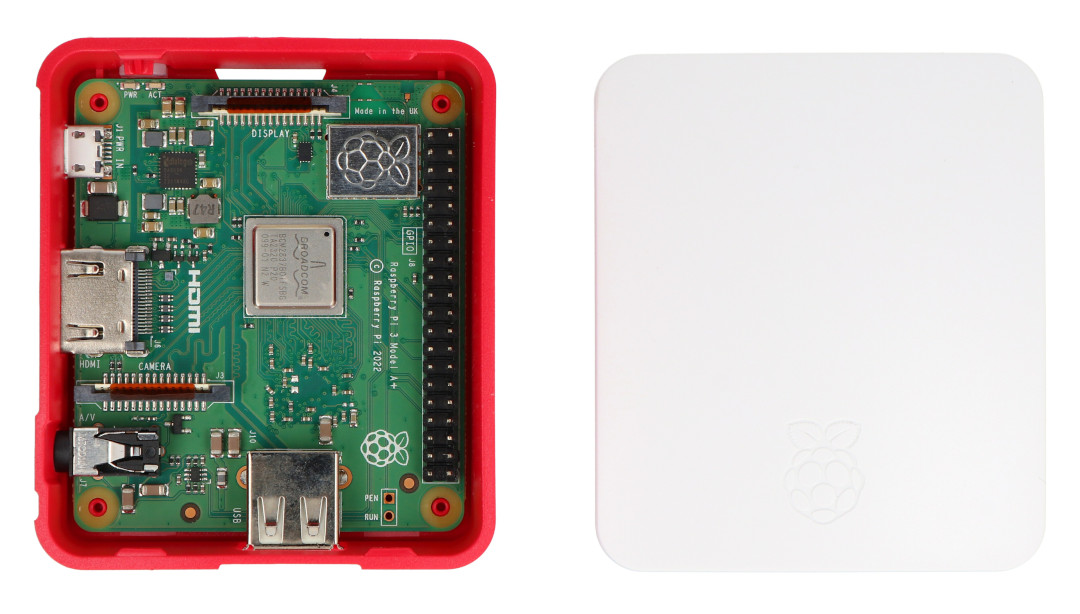

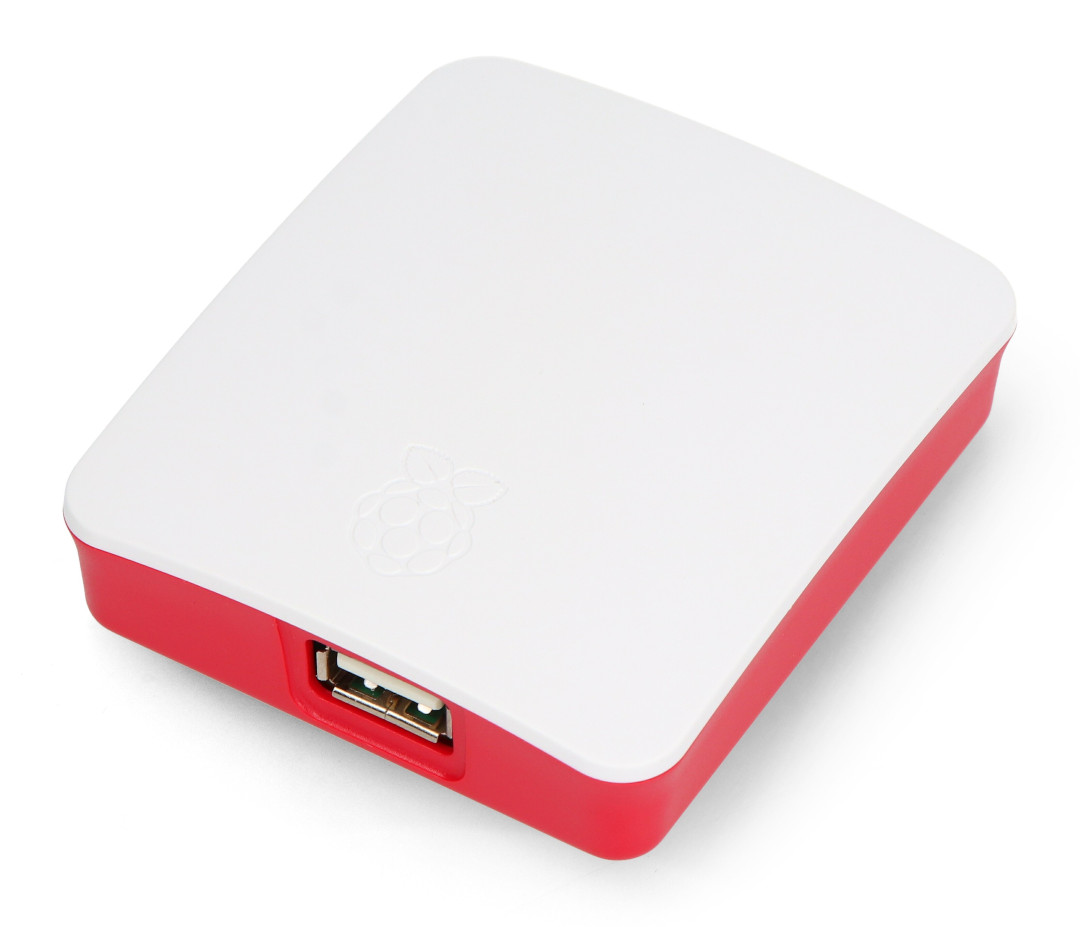

Also included as a free gift is an official red and white case that provides protection for the board and easy access to all ports and connectors. Technical specifications and model comparison
| Basic information | ||
|---|---|---|
 |  | |
| Model | Raspberry Pi 3 model A+ | Raspberry Pi 3 model B+ |
| Issue | 11 - 2018 | 3 - 2018 |
| Technical specification | ||
| Chipset Processor | Broadcom BCM2837 64bit | Broadcom BCM2837B0 64bit |
| Core | Quad-Core ARM Cortex A53 | Quad-Core ARM Cortex-A53 |
| Operating systems | Linux Raspbian Windows 10 lT | Linux Raspbian Windows 10 lT |
| Clocking | 1.4GHz | 1.4GHz |
| Architecture | ARMv8-A | ARMv8-A |
| RAM memory | 512MB LPDDR2 @ 900MHz | 1GB LPDDR2 @ 900MHz |
| Memory | microSD card | microSD card |
| GPIO socket | 40-pin connector (2x20 pin) 2.54 mm raster | 40-pin connector (2x20 pin) 2.54 mm raster |
| Power supply |
|
|
| Tile dimensions | 65x56x8.5mm | 85 x 56 x 17mm |
| Interfaces | ||
| USB interface | 1x USB 2.0 - type A socket | 4x USB 2.0 - type A socket |
| Network interface | lack | 100/1000 Mbps Ethernet port |
| Wi-Fi interface | Dual Band 2.4GHz and 5GHz 802.11b/g/n/ac | Dual Band 2.4GHz and 5GHz 802.11b/g/n/ac |
| Bluetooth | Low Energy, BLE 4.2 | Low Energy, BLE 4.2 |
| Camera | CSI nest | CSI nest |
| Touchscreen display | DSI socket | DSI socket |
| Video | HDMI HD 1080px / 30fps H.264 1080p30 OpenGLES 1.1, 2.0 | HDMI HD 1080px / 30fps H.264 1080p30 OpenGLES 1.1, 2.0 |
| Communication | UART, SPI, I2C, GPIO | UART, SPI, I2C, GPIO |
