Product description: Current transformer for MEW-01 - 400 A / 133.3 mA - WiFi - Zamel SC-36
The Zamel SC-36 current transformer is a specialized device designed to work with the MEW-01 monitor . It allows for accurate measurement of electricity consumption in three-phase systems and then transmits the data via Wi-Fi to a mobile app or the Supla Cloud panel. The device is easy to install and requires no complex electrical or telecommunications installation. The SC-36 enables precise energy consumption monitoring, offering data export in popular formats (XLS, ODS, HTML, CSV), as well as integration with API and MQTT systems. This allows you to monitor electricity in real time and obtain detailed reports, which is crucial for effective energy management.
A maximum of 3 transformers can be connected to the MEW-01 energy monitor. The transformers must be connected to the MEW-01 via the MRP-400A expansion module .

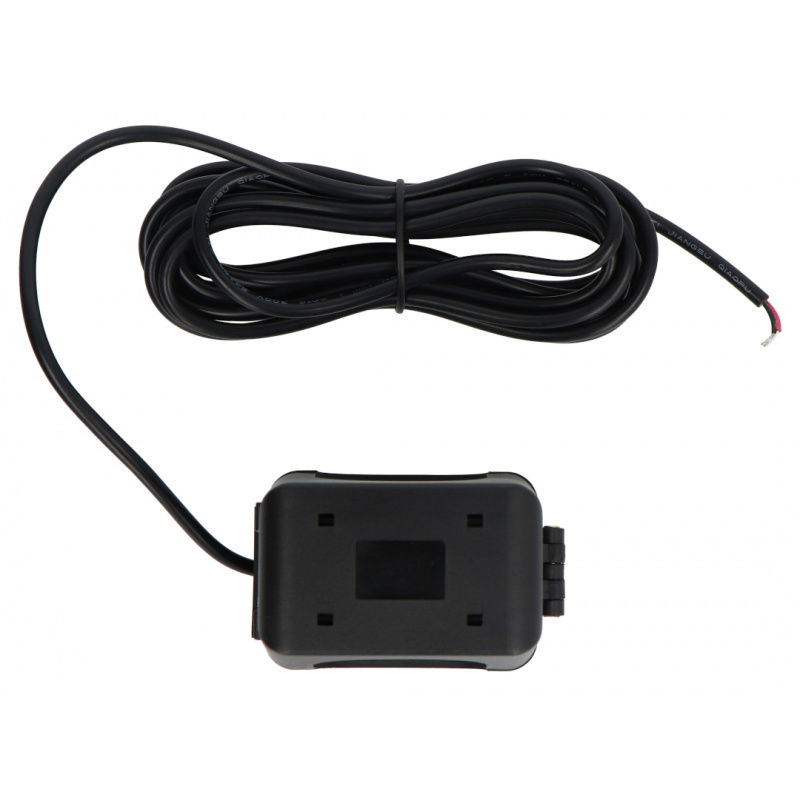

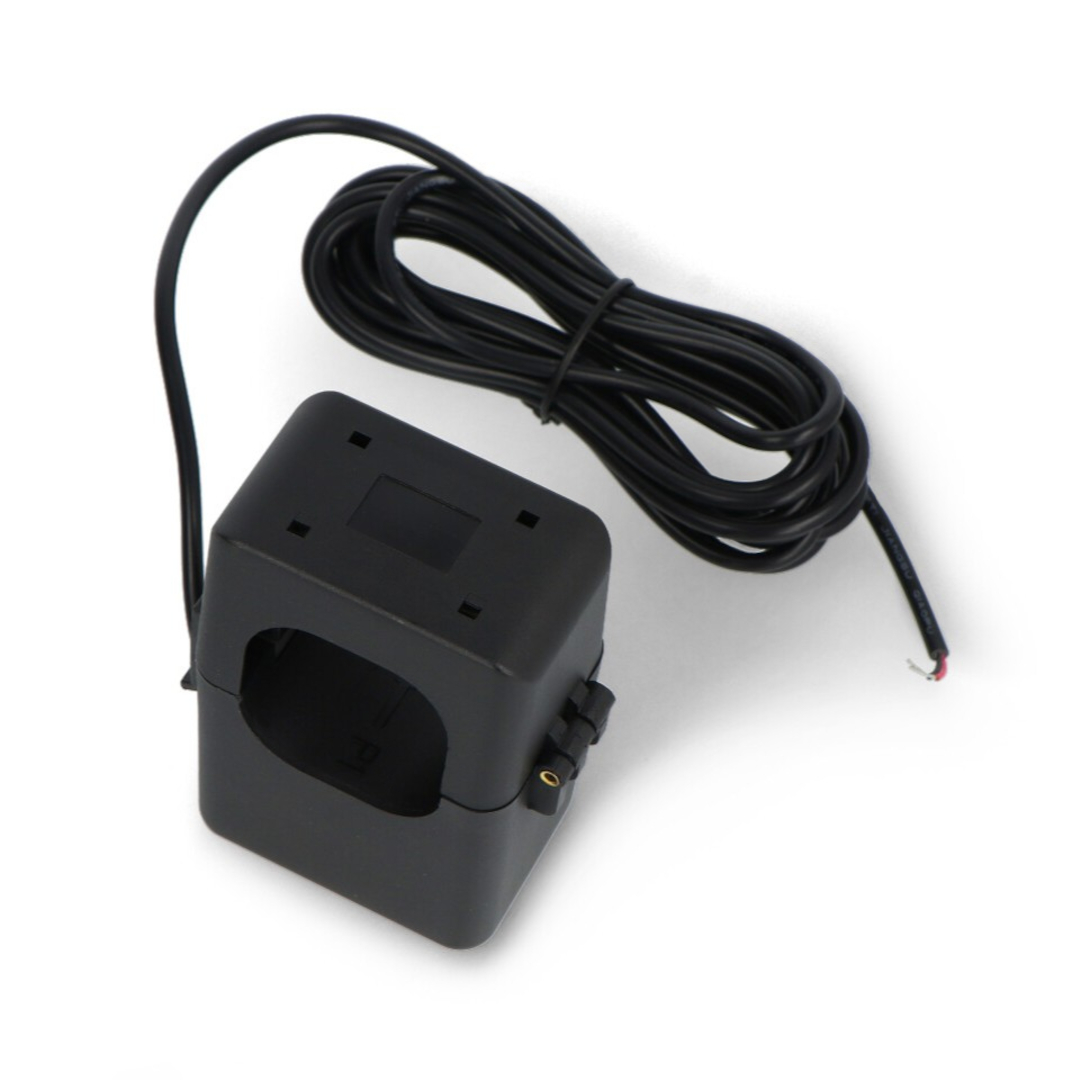

Current transformer for MEW-01 - 400 A / 133.3 mA - WiFi - Zamel SC-36.
The SC-36 current transformer must be connected to the MEW-01 via the MRP-400A expansion module.
Main features of a current transformer
- Expanded measurement capabilities: allows for measuring energy consumption in three-phase systems in cooperation with MEW-01
- Compatibility with the MRP-200A expansion module: facilitates integration and expansion of device functionality
- Mobile energy monitoring: data can be viewed in the mobile app and the Supla Cloud panel
- Data export: ability to export measurement data to popular formats such as xlsx, ods, html, csv
- API and MQTT integration support: enables advanced integration with other systems
- High measurement accuracy: accuracy class 1, ensuring precise results
How does the SC-36 current transformer work?
The SC-36 current transformer works in energy consumption monitoring systems, enabling current measurement in three-phase installations . The device transmits measurement data wirelessly to a mobile app or the Supla Cloud panel , allowing for real-time monitoring of energy consumption in the electrical system. It is a reliable solution for energy management systems, ensuring accuracy and ease of use thanks to integration with popular systems such as API and MQTT. Thanks to its precise design and easy installation, it allows for quick energy monitoring , providing full control over the performance of electrical systems. The ability to export measurement data to popular formats such as .xlsx or .csv facilitates the creation of reports and analyses in various work environments.
The kit allows you to analyze measurements in the mobile application and the Supla Cloud panel.
The current transformer allows you to control energy consumption.
Technical specifications of the SC-36 transformer
- Maximum continuous primary current: 400 A
- Secondary current: 133.3 mA
- Accuracy: Class 1
- Insulation voltage: 0.66 kV
- Phase angle: less than 2 degrees at 50% of rated current
- Frequency: 50 Hz to 60 Hz
- Operating temperature: -15°C to 60°C
- Pins: two-core cable: S1 - red, S2 - black
- Cable hole diameter: 36 mm
- Dimensions: 87 x 68 x 43 mm
- Weight: 0.401 kg
Contents of the set
- 1x Current transformer SC-36
