Product description: Shelly Wall Display X2 - intelligent control panel with 5 A relay and color display WiFi / Bluetooth - silver

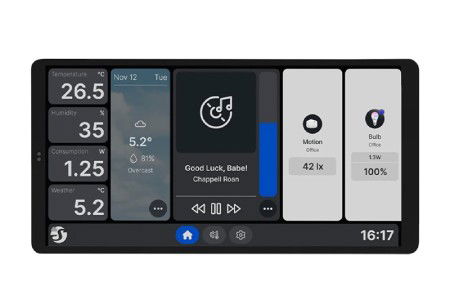

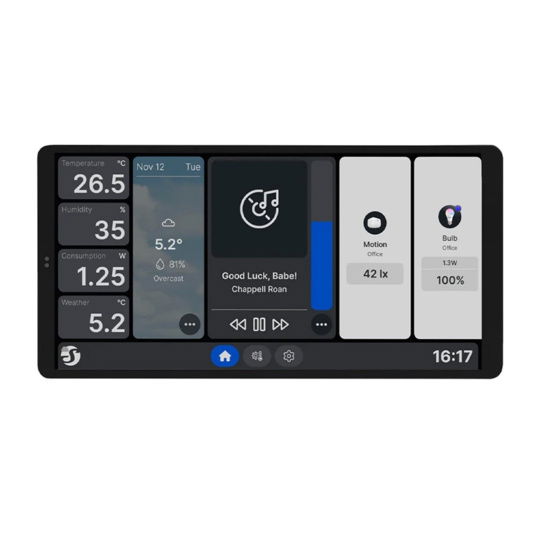

Shelly Wall Display X2 is a 6.95-inch control panel installed in a standard wall box, providing easy access to advanced home automation . The large touch screen allows for convenient management of devices in rooms, displaying scenes, groups and favorite functions, as well as monitoring temperature, humidity and light intensity. The panel works based on Android 8.1 and integrates with the Shelly ecosystem and Home Assistant . Thanks to the built-in 5 A relay , it allows direct control of electrical circuits.

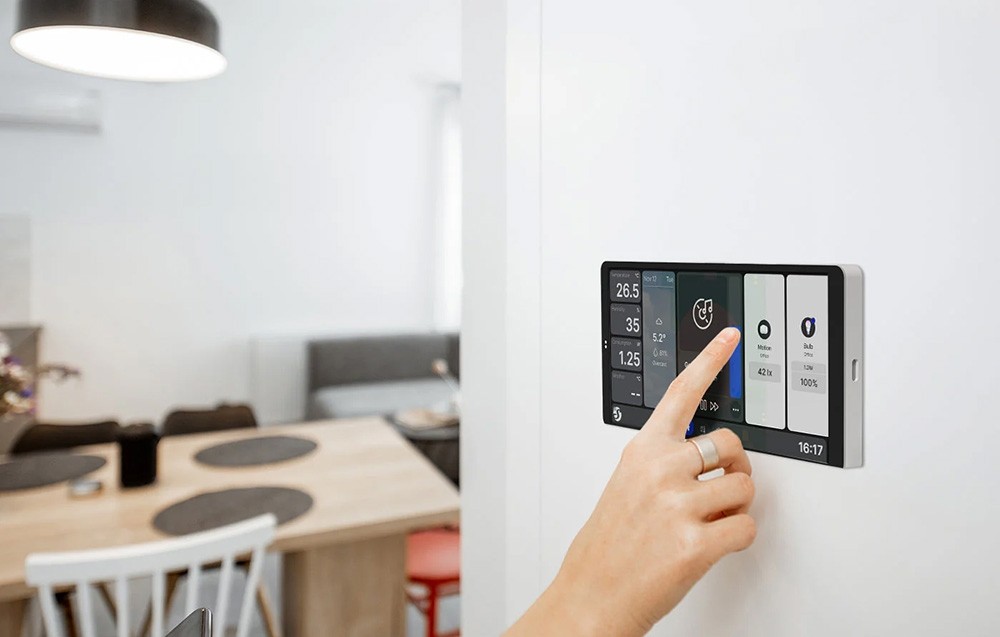

The control panel fits into standard wall boxes, so it can be easily mounted in place of a regular light switch.
Key Features of Shelly Wall Display X2
- 6.95'' touchscreen: capacitive, color display with customizable layout
- Built-in 5A relay: allows direct control of lighting and devices
- Environmental sensors: built-in temperature, humidity and light intensity sensors
- Android operating system: fast performance and easy automation
- Full integration with Shelly and Home Assistant: scenes, groups, schedules, notifications
- Stable connectivity: Supports WiFi 802.11 b/g/n and Bluetooth 5.0
Advanced automation scenarios and intelligent features of Shelly Wall Display X2
Shelly Wall Display X2 allows for full home screen personalization and quick access to favorite devices and scenes . You can assign devices to specific rooms, control their status in real time, and use automatic schedules, such as turning on the lights at sunset. Built-in sensors allow you to respond to environmental changes - start the fan when humidity is too high or the light when the intensity is low. All this is done without the need for additional control devices.

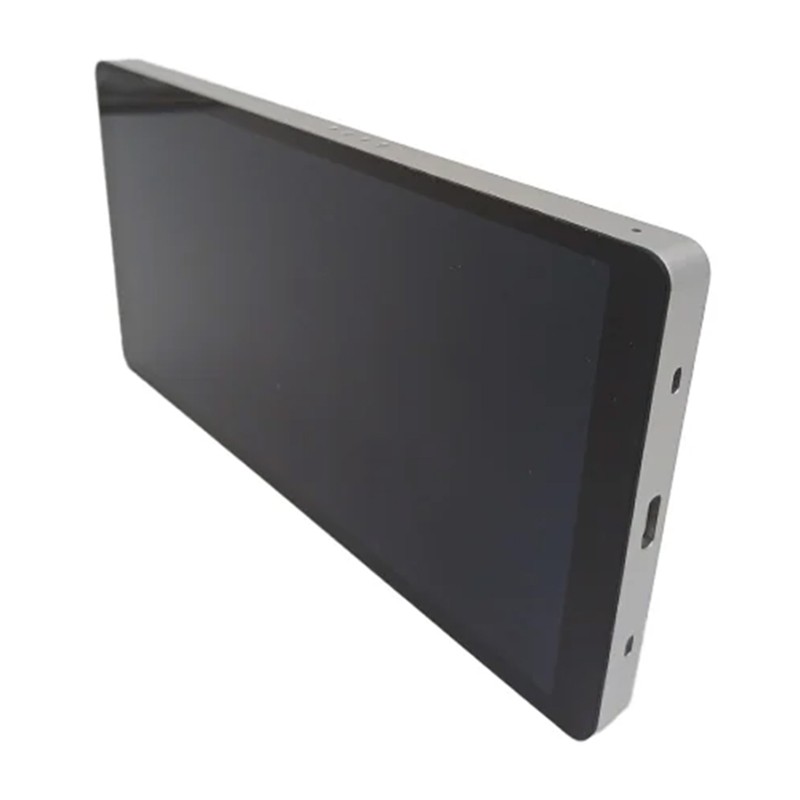

6.95'' touchscreen.
WiFi connectivity and the Shelly Smart Control app allow you to remotely monitor the status of your devices.
WiFi and Bluetooth - full control via the Shelly Smart Control app
The panel offers reliable wireless connectivity thanks to 2.4 GHz WiFi and Bluetooth 5.0 technology. Bluetooth facilitates quick pairing and configuration, and WiFi provides constant access to the device from anywhere in the world. In the Shelly Smart Control app, you can manage groups of devices, assign them to rooms, create scenes and schedules, and monitor energy consumption. The ability to connect to Home Assistant expands integration with even more devices and functions. This makes Shelly Wall Display X2 the centerpiece of your smart home.
Practical applications
Shelly Wall Display X2 is used as a central control device in Smart Home systems . It allows you to control lighting, ventilation, air conditioning, heating and other devices. Built-in sensors enable automatic response to changes in temperature, humidity and light intensity, e.g. by starting the fan, turning on the lighting or sending a notification. It is ideal for living rooms, bathrooms, kitchens, basements and offices.
Shelly Wall Display X2 allows you to monitor the energy consumption of connected devices.

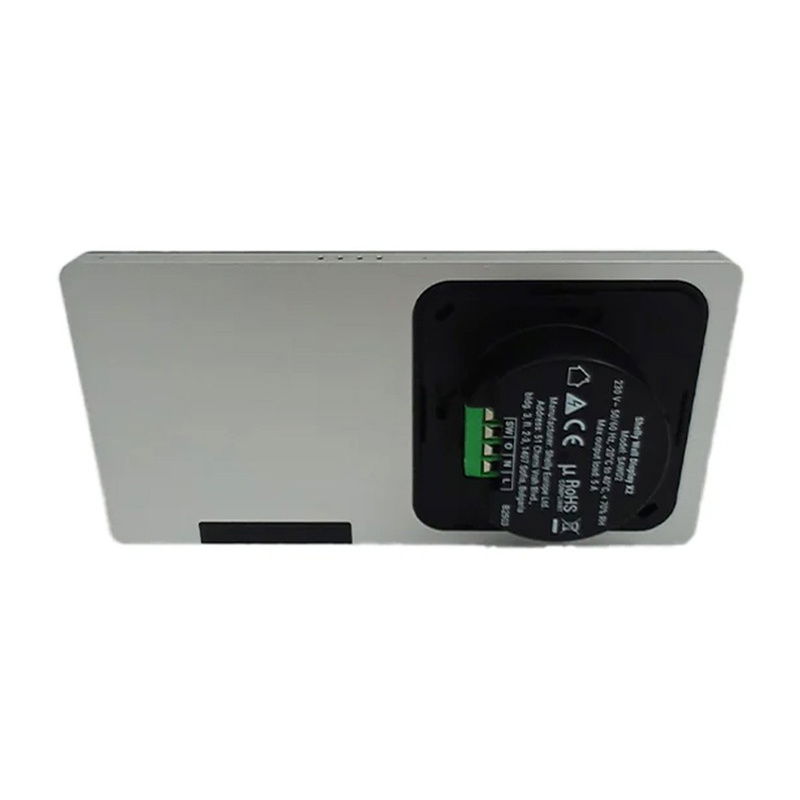

The panel is equipped with a relay with a maximum switching voltage of 230 V AC and a current of up to 5 A.
Technical Specifications Shelly Wall Display X2
- Screen: 6.95'', capacitive, 5-point
- Power supply: 230V AC 50/60Hz or USB Type-C 5V/1A
- Relay: 1 output, max. 5 A / 230 V AC
- Processor: SC7731E (Quad Core A7, 1.3 GHz)
- Memory: 1GB RAM, 4GB Flash
- Operating system: Android 8.1
- Connectivity: WiFi 802.11 b/g/n (2.4GHz), Bluetooth 5.0
- Sensors: ambient temperature, humidity, light, proximity, G-sensor, microphone
- Communication protocol: MQTT, Webhooks
- Supports: Up to 20 schedules and 20 webhooks with 2 URLs
- Dimensions: 87 x 178 x 33 mm
- Weight: 256 g
Kit Contents
- Shelly Wall Display X2 (silver)
- User manual
