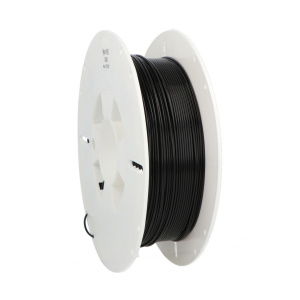

Product description: Filament Print-Me PA12 1.75 mm 0.45 kg - Black
Polyamide PA12, known as nylon , is a black 3D printing filament. It is characterized by high mechanical strength , flexibility in thin layers and resistance to temperatures up to 150°C . Thanks to low processing shrinkage ( below 1.5% ) and excellent layer bonding, is ideal for advanced users for industrial applications. PA12 is resistant to chemicals, oils and greases and has minimal moisture absorption, making it a versatile material for printing technical parts such as bushings, bearings and gears. The spool contains 0.45 kg net filament with a diameter of 1.75 mm .
Print-Me PA12 filament 1.75 mm 0.45 kg - Black.
Filament with a diameter of 1.75 mm, black.
PA12 filament properties
- Great adhesion between layers : guarantees solid and durable prints.
- Advanced material : designed for experienced users who demand high quality.
- Smooth finish : satin surface provides an aesthetic appearance.
- Minimal stringing : no unwanted fibers formed during printing.
- High precision : enables the production of dimensionally accurate components.
- Mechanical strength : excellent resistance to loads and wear.
- Industrial use : ideal for demanding technical applications.
- Dimensional stability: low moisture absorption and minimal distortion provide excellent dimensional accuracy and stability in harsh environmental conditions.
- Chemical resistance: high resistance to oils, greases, most chemicals and concentrated acids and alkalis.
- Thermal resistance: retains its mechanical properties at temperatures up to 150°C.
- Flexibility: In thin layers, the filament is flexible, allowing it to bend without being damaged.
Filament Applications
- Technical components: perfect for printing mechanical parts such as bushings, bearings, screws, gears.
- Automotive industry: ideal for producing durable parts with high abrasion resistance.
- Sports Equipment: Creating durable and flexible components for sports equipment.
- Electronics and electrical: use in applications requiring high chemical resistance and thermal insulation.
Suggested Filament Printing Parameters
| Head temperature | From 250°C to 280°C |
| Table temperature | From 80°C to 120°C |
| Print cooling | From 0% to 40% |
Due to differences in printer designs, the above data should be treated as guidelines and the appropriate values should be determined experimentally. |
Technical specifications and physical properties of Print-Me PA12 filament
| Parameter | Range |
|---|---|
| Filament diameter | 1.75mm |
| Filament dimensional tolerance | ±0.05mm |
| Color | Black |
| Material | PA12 |
| Density | 1g/cm3 |
| Thermal resistance | 150°C |
| Shore hardness | 70D |
| Notch V impact strength | 0.74 J/cm2 |
| Young's modulus | 651 MPa |
| Retraction | ±6mm |
| Nozzle diameter | ≥ 0.4mm |
| Print speed | From 30 to 80 mm/s |
| Material shrinkage | ~ 1.3% |
| Product weight | 450g net |
