Product description: LongWei LW-8586D 2in1 hot air and tip soldering station with fan in the iron - 700 W
The LW-8586D soldering station is an advanced 2-in-1 device that combines the functions of a soldering iron and hot air , making it a versatile tool in electronics. The tip iron offers 50 W of power and temperature regulation in the range from 200 ° C to 480 ° C , enabling precise soldering of through-hole and SMD components. The hot air iron is ideal for rework work, enabling precise desoldering of SMD components from PCBs. Digital temperature regulation in the hot air iron covers the range from 100 ° C to 500 ° C , and the smoothly adjustable air flow up to 120 l / min allows you to adjust the parameters to the needs of the work. The station is equipped with a brushless motor in the hot air iron, which ensures high durability, quiet operation and minimal vibration. In the case of the tip iron, on the other hand, quick temperature stabilization and comfortable work are ensured thanks to the ergonomic handle . Both flasks can be used independently or simultaneously , and switching between them is convenient thanks to the digital display that indicates both the set and actual temperature.
Our offer includes a large selection of soldering stations and accessories necessary for soldering.

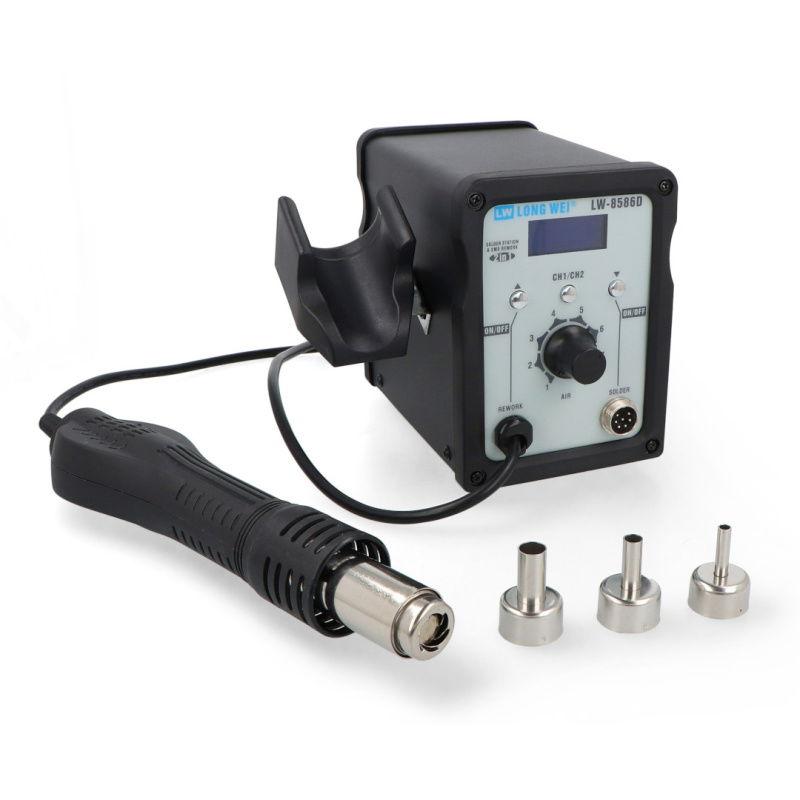

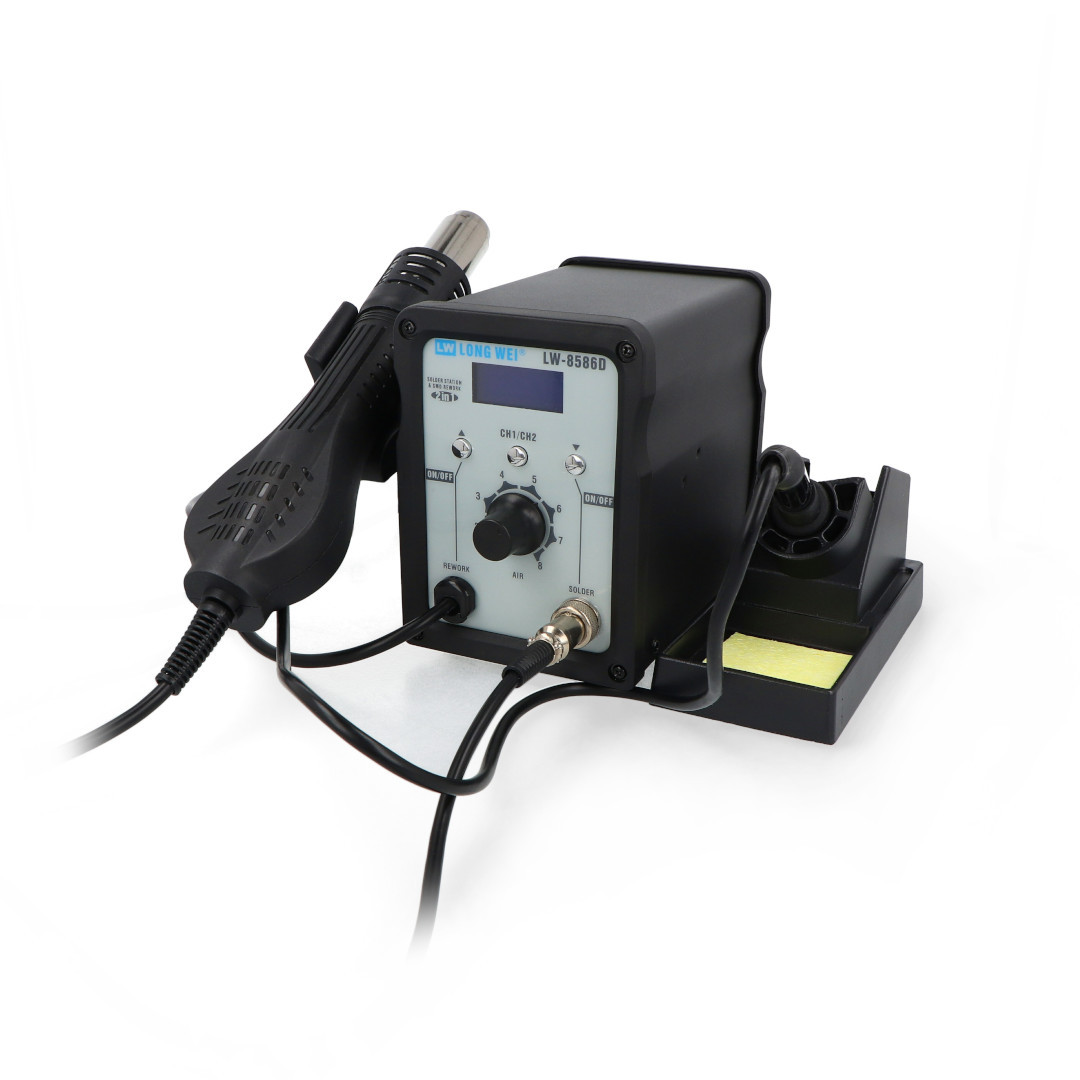

LongWei LW-8586D 2in1 hot air and tip soldering station with fan in the iron - 700 W.

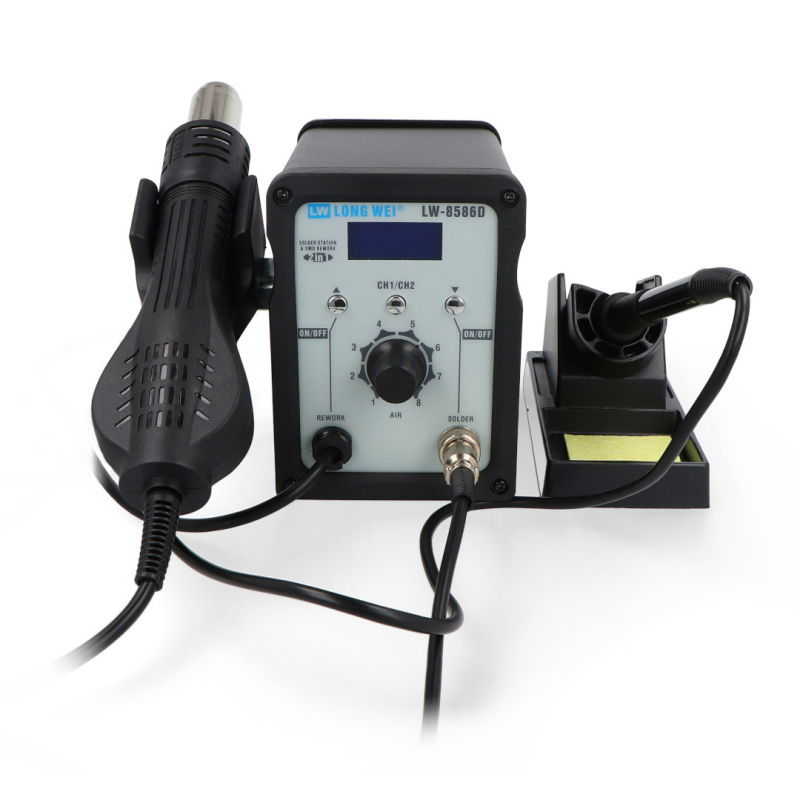

The soldering station has an LED display that allows you to read the temperature.
Key Features of the LongWei LW-8586D Soldering Station
- Dual function soldering station : combines a soldering iron and a hot air gun
- Soldering iron : 50 W power, temperature control from 200°C to 480°C
- Hot air gun : digital temperature control from 100°C to 500°C, smooth air flow control up to 120 l/min
- Brushless fan in the hot air gun : ensures quiet operation, high reliability and low vibration
- Digital LCD display : shows the set and actual temperature
- Overheating protection : when the hot air iron is placed on the holder, the device goes into "stand-by" mode and stops heating, turning on only the fan for cooling
- "SLP" display : when the temperature reaches 100°C, the display will show "SLP" and the device will stop working until it is used again
- Temperature control independently : the temperature of the hot air gun and the soldering iron are controlled separately, with digital temperature display. Microcomputer PID control ensures accuracy and improves work efficiency
- Interchangeable tips : wide range of soldering tips and hot air nozzles
- Ergonomic handles : light and comfortable to use
Tip soldering iron - features and functions
The soldering iron in the LW-8586D station provides precise soldering of electronic components thanks to the power of 50 W and a temperature range of 200 ° C to 480 ° C. Smooth temperature control allows for perfect adjustment to soldering of both through-hole and surface-mounted (SMD) components. Interchangeable tips from the 900M series allow you to choose the right tool for different tasks.
Hotair Soldering Iron - Features and Functions
The hot air iron in the LW-8586D station is ideal for precise desoldering of SMD components from PCBs . Digital temperature control in the range from 100°C to 500°C and smooth regulation of air flow up to 120 l/min provide full control over the process. Thanks to the brushless motor in the fan, the hot air iron is extremely durable, quiet and reliable. It is perfect for precise rework operations, such as desoldering integrated circuits, correcting cold solders or shrinking heat shrink tubing.

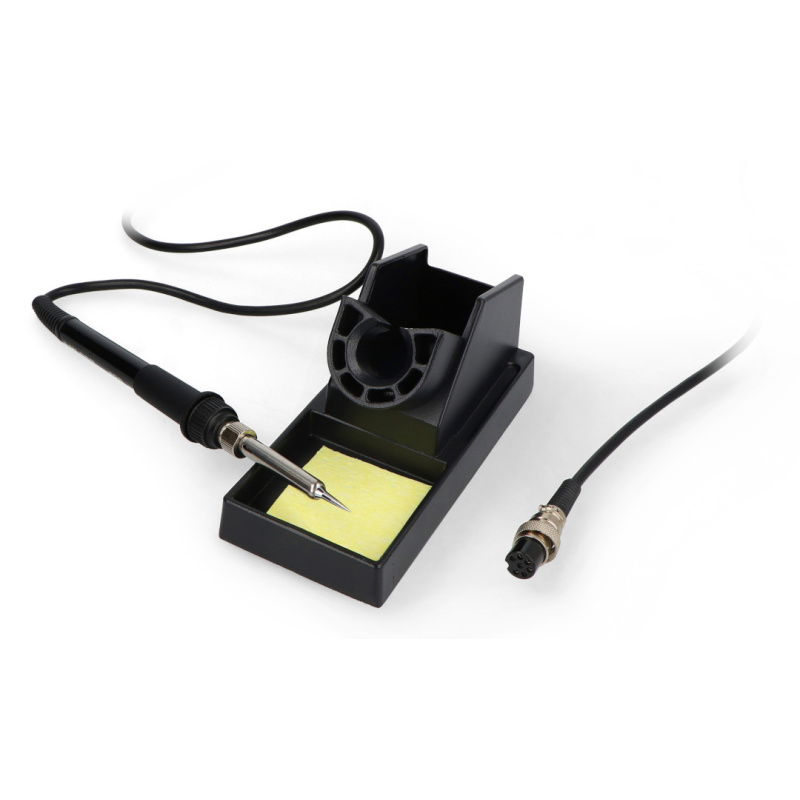

The soldering iron is equipped with a convenient stand for the iron.

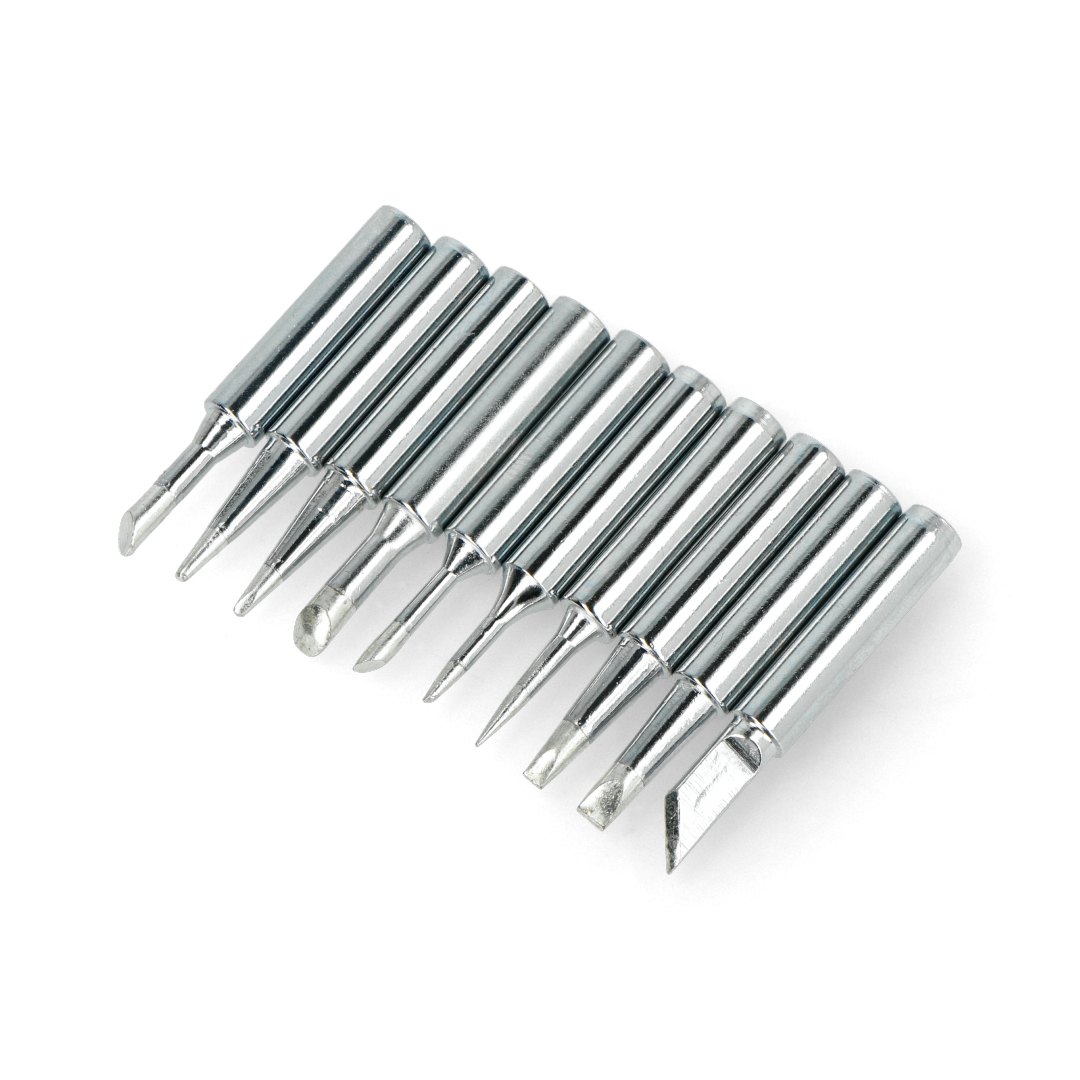

The soldering iron is compatible with 900M-T tips , which can be purchased separately.
Technical specification of the tip soldering iron
- Power: 50 W
- Temperature range: 200°C to 480°C
- Temperature stability: ±2°C
- Ground impedance: < 2 Ω
- Ground Voltage: <2mV
- Operating voltage: 26V AC
- Cable length: approx. 130 cm
- Soldering Tips: 900M-T Series
Technical specifications of the hotair soldering iron
- Power: 700 W
- Temperature range: 100°C to 500°C
- Air flow: 120 l/min (max)
- Operating voltage: 220 V AC
Technical specification of the soldering station
- Model: LW-8586D
- Power: 700 W
- Temperature control: digital, 1°C step
- LCD display: digital, with backlight
- Fan motor: brushless
- Operating voltage: 220 V AC
- Ambient temperature range: 0°C to 40°C
- Ambient humidity range: 0% RH to 80% RH
- Dimensions: 97 x 170 x 138 mm

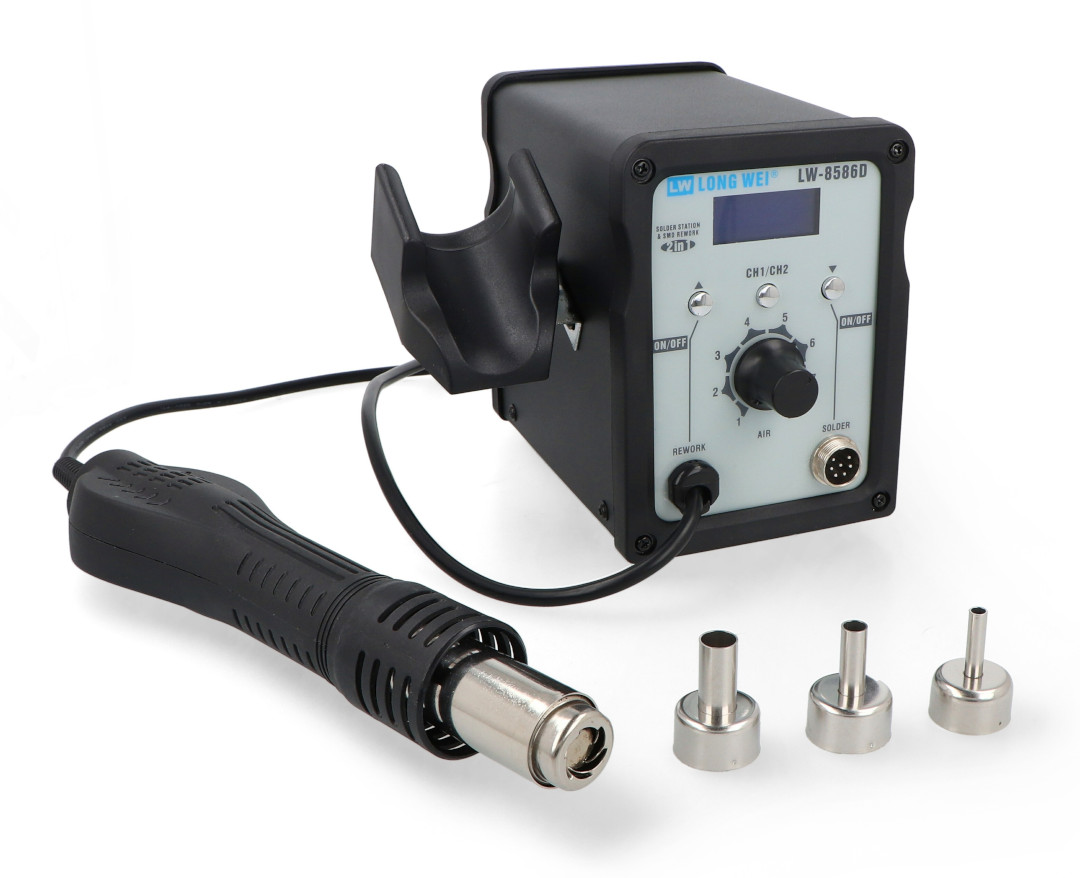

Kit Contents
- 1x Soldering station LW-8586D (central unit)
- 1x Soldering iron 907 with tip 900M-TI
- 1x Hot air gun (permanently connected to the unit)
- 1x Flask stand with sponge
- 1x Power cord
- 3x Hot air nozzles
