Product description: Nano USB adapter - Bluetooth 5.4 LE Audio LC3 - Edimax BT-8530
The compact Edimax BT-8530 Bluetooth 5.4 adapter is the perfect solution for those seeking a reliable wireless connection for computers, laptops, and embedded systems. Thanks to BQB certification and the modern LC3 codec, users can enjoy crystal-clear audio , low latency, and extended battery life. The device supports simultaneous BR/EDR and BLE connections , and thanks to its miniature design (17.4mm long), it's virtually invisible when plugged into a USB port.

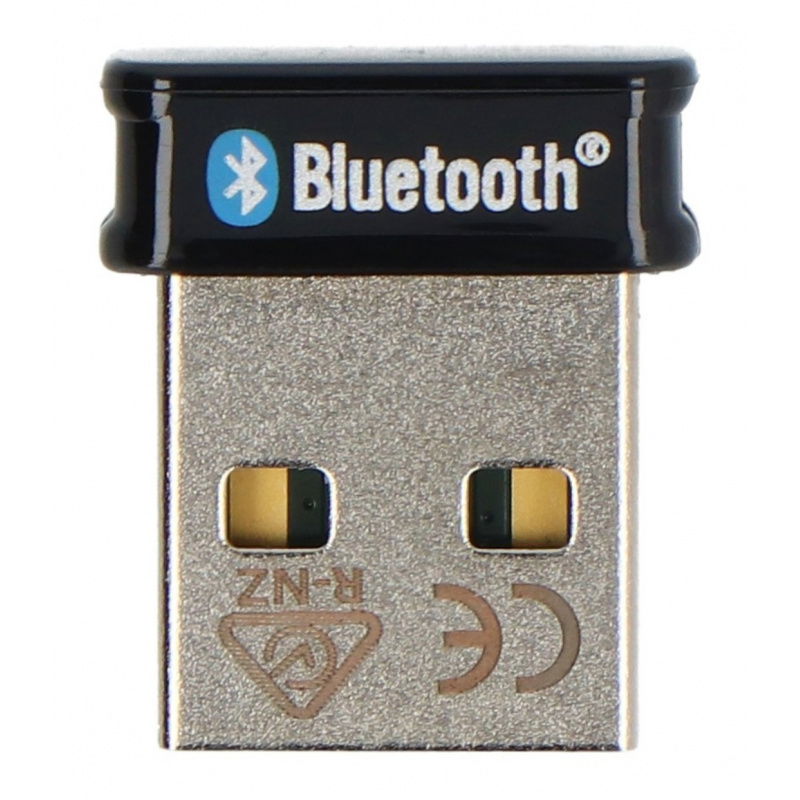

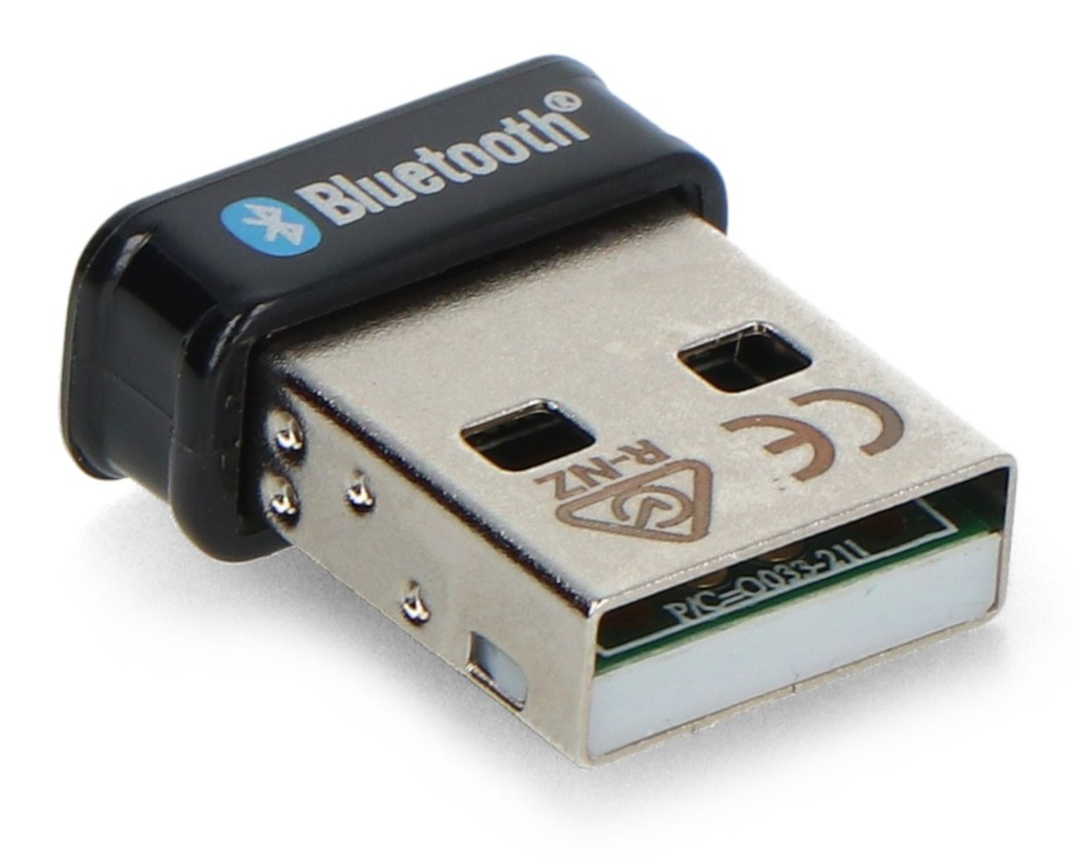

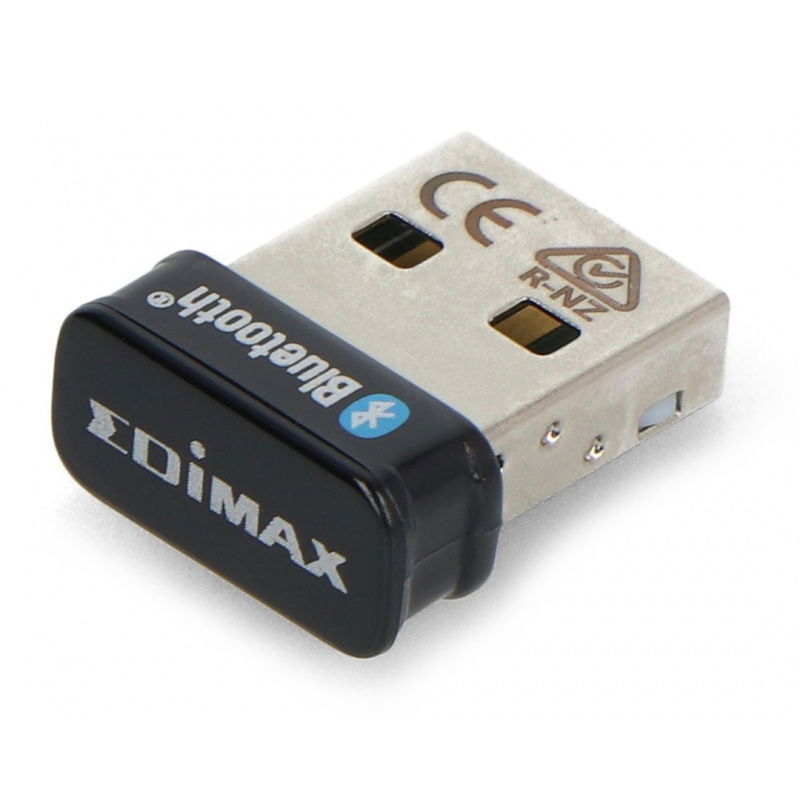

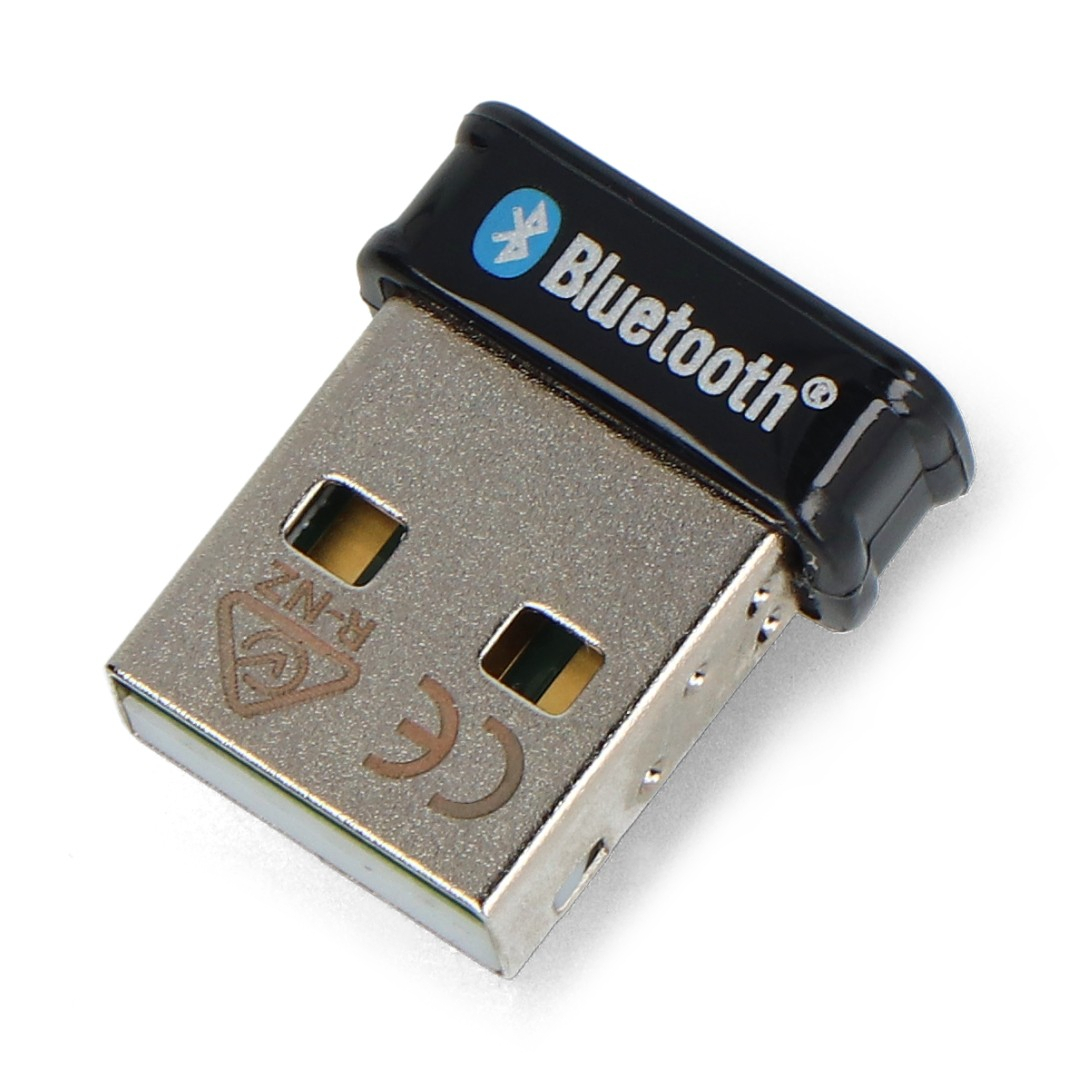

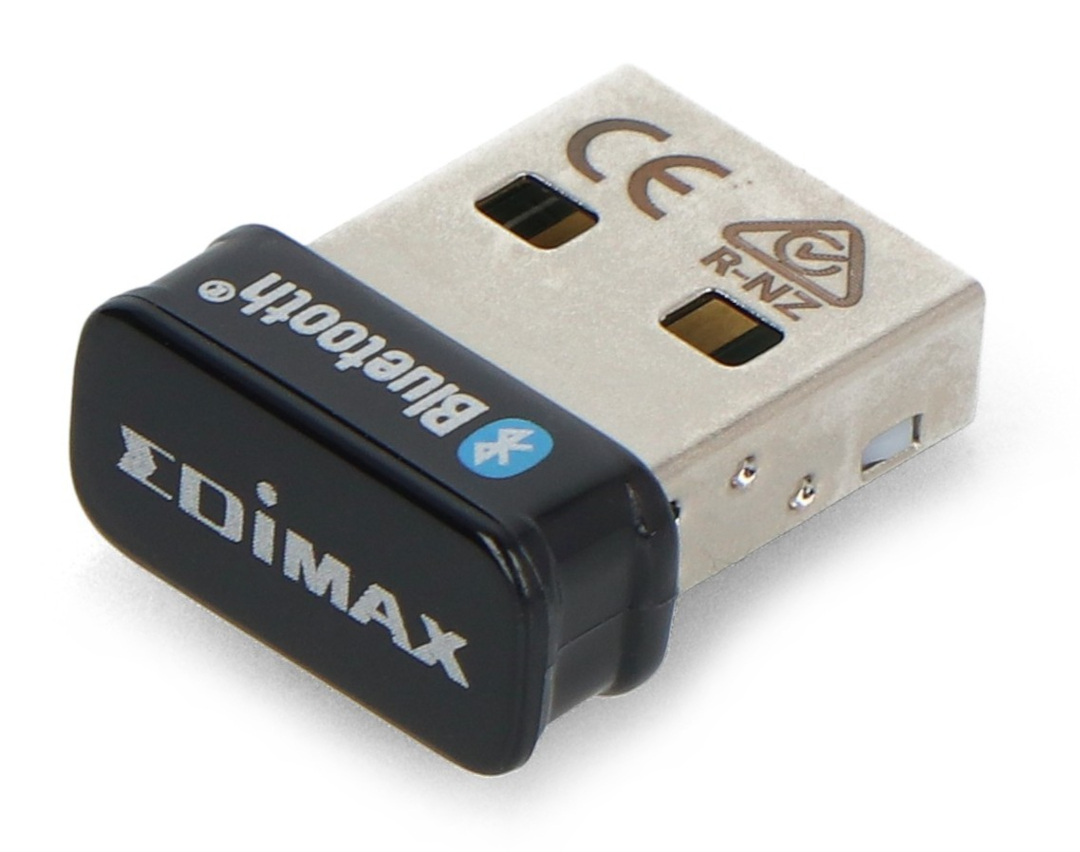

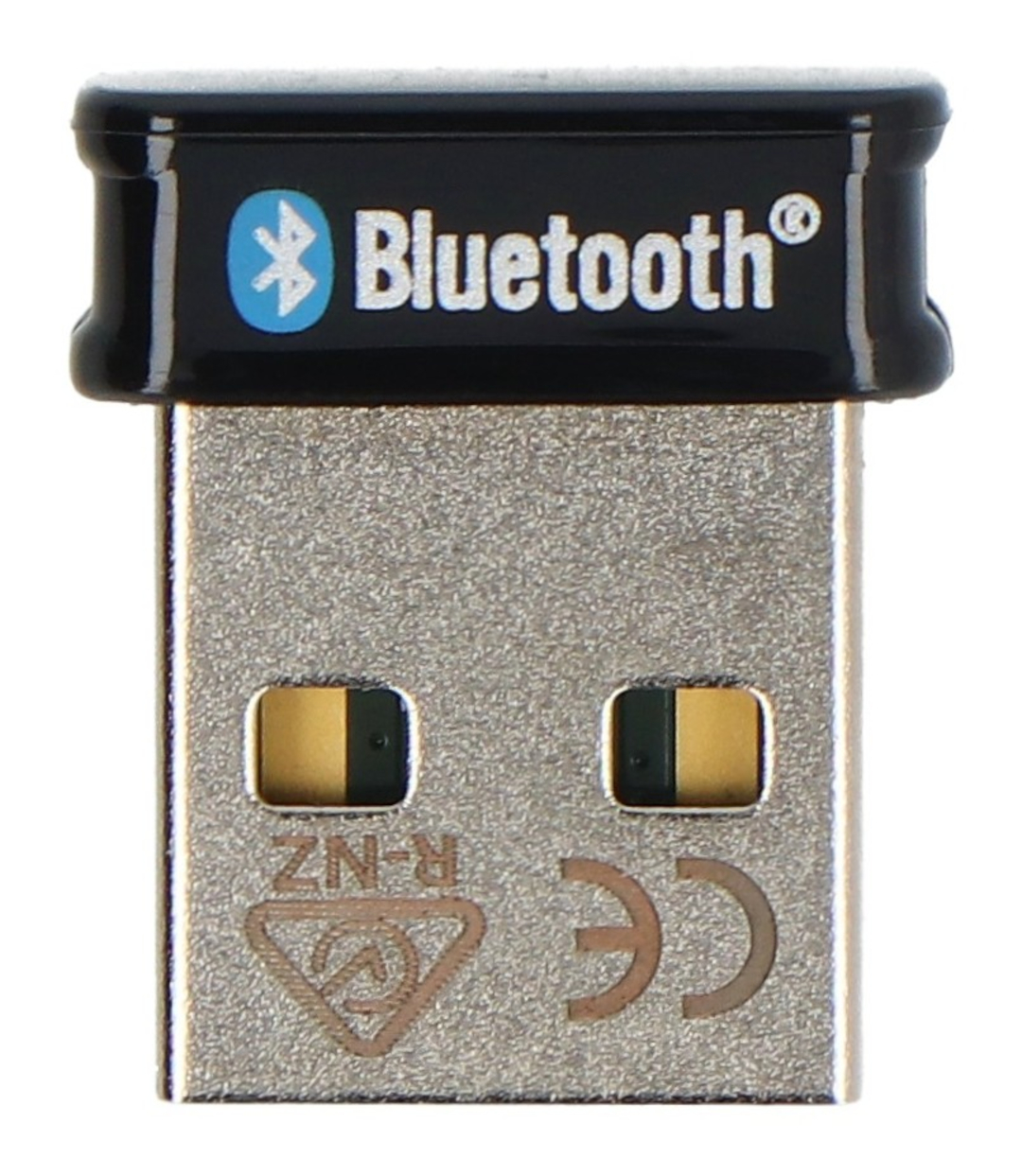

Nano USB - Bluetooth 5.4 LE Audio LC3 adapter - Edimax BT-8530.
BQB certified Bluetooth 5.4 ensures high compatibility and fast connections.
Main features of the Bluetooth module
- Bluetooth 5.4 with BQB certification : ensures high compatibility, security and fast pairing
- Dual mode BR/EDR + BLE : allows simultaneous operation of classic and energy-saving devices
- LE Audio with LC3 codec : high sound quality, low latency, longer battery life
- Broadcast audio to multiple devices : ideal for sharing audio, e.g. on group trips
- Support for 7 devices simultaneously : greater efficiency and flexibility of use
- Transmission range up to 40 meters : move freely without losing connection
- Ultra-compact nano form factor : only 17.4mm long - perfect for laptops
- Wide compatibility with operating systems : Windows 10 / 11 and Linux (kernel 2.6.32~6.5.5)
Bluetooth 5.4 - a new standard of wireless communication
Bluetooth 5.4 technology in the BT-8530 adapter offers a significant leap forward in transmission quality and efficiency. Dual-mode operation enables simultaneous operation of Bluetooth Classic (BR/EDR) and Bluetooth Low Energy (BLE) . Combined with the LC3 codec, Bluetooth 5.4 delivers improved sound quality with lower power consumption. LE Audio Broadcasting allows for simultaneous audio broadcasting to multiple devices , opening up new possibilities for applications in tourism, medicine, and education.
LC3 support ensures high sound quality, low latency and longer battery life.
Compatibility with systems
The Edimax BT-8530 is compatible with a wide range of operating systems , making it suitable for both home and industrial use:
- Windows 10 and Windows 11
- Linux (kernel from 2.6.32 to 6.5.5)
- Fedora (4.13.9 to 5.17.5)
- Ubuntu (3.19 to 5.8)
Support for different kernel versions enables use in embedded systems, POS terminals, industrial devices and IoT.
Technical specifications of the BT1Azcx1X38530 adapter
- Interface: USB 2.0 Type A
- Antenna: internal PIFA (gain up to 2.3 dBi)
- Bluetooth Standard: 5.4
- Band: 2402 MHz to 2480 MHz
- Data speed: up to 3 Mb/s (BR/EDR), 2 Mb/s (BLE)
- Audio codec: LC3 (Low Complexity Communications Codec)
- Audio broadcasting: LE Audio broadcasting
- RX Sensitivity: -94 dBm (2 Mbps EDR) to -99.2 dBm (1 Mbps BLE)
- TX Power: 10 dBm (BR/EDR/BLE)
- Operating systems: Windows 10 / 11, Linux (2.6.32~6.5.5), Ubuntu, Fedora
- Operating temperature: 0°C to 40°C
- Certificates: CE, BQB, FCC, NCC, BSMI, SRRC
- Dimensions: 7.1 x 14.9 x 17.4 mm
- Weight: 2 g
Kit contents
- 1x Bluetooth 5.4 BT-8530 Edimax Adapter

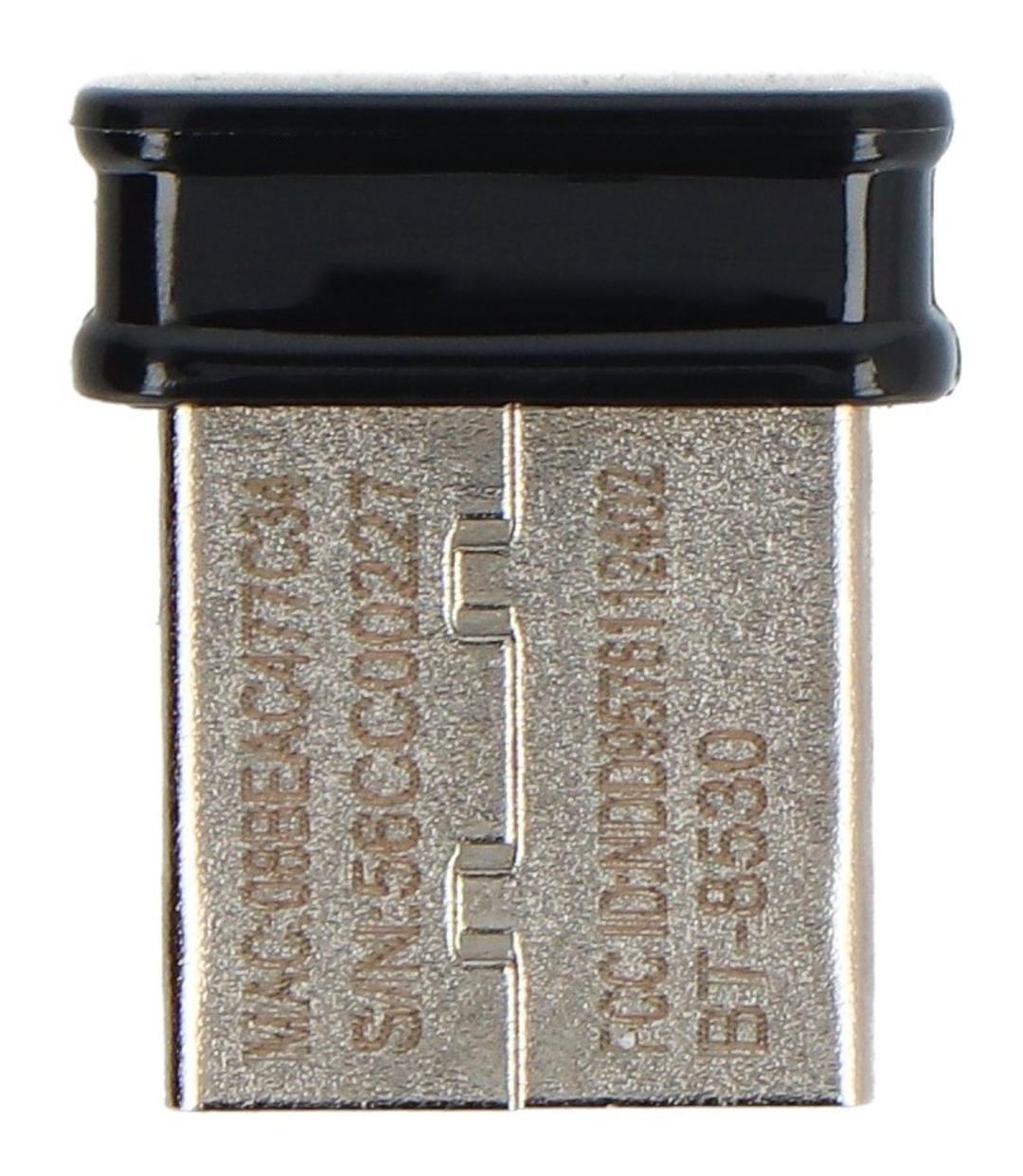

Thanks to its small dimensions, the card is almost invisible when connected.
