Mini OSD v1.1 - compatible with Arduino

Index: HBK-03907

Miniature OSD module compatible with Arduino with ATmega328P microcontroller. Adapted to ArduPilot Mega and MAVlink protocols. The device overlays text information on the video image.

Mini OSD v1.1 - compatible with Arduino
€26.90
€21.87 tax excl.
Unavailable
Discontinued product
PayPal payment
Manufacturer: OEM

Attention!

The sale of the product has been completed. Check otherdevices in this category.

Description

Miniature OSD module compatible with Arduino, adapted to ArduPilot Mega and MAVlink protocols. Mini OSD v1.1 is equipped with ATmega328P microcontroller with uploaded Arduino bootloader and MAX7456 module. Programming is done via 6-pin cable withUSB - UARTconverter, e.g. FTDI.

OSD is a device that imposes text information on the video image (similarly to TVs, volume level, channel displayed etc.). This type of devices are mainly used in modeling e.g. FPV (first person view).

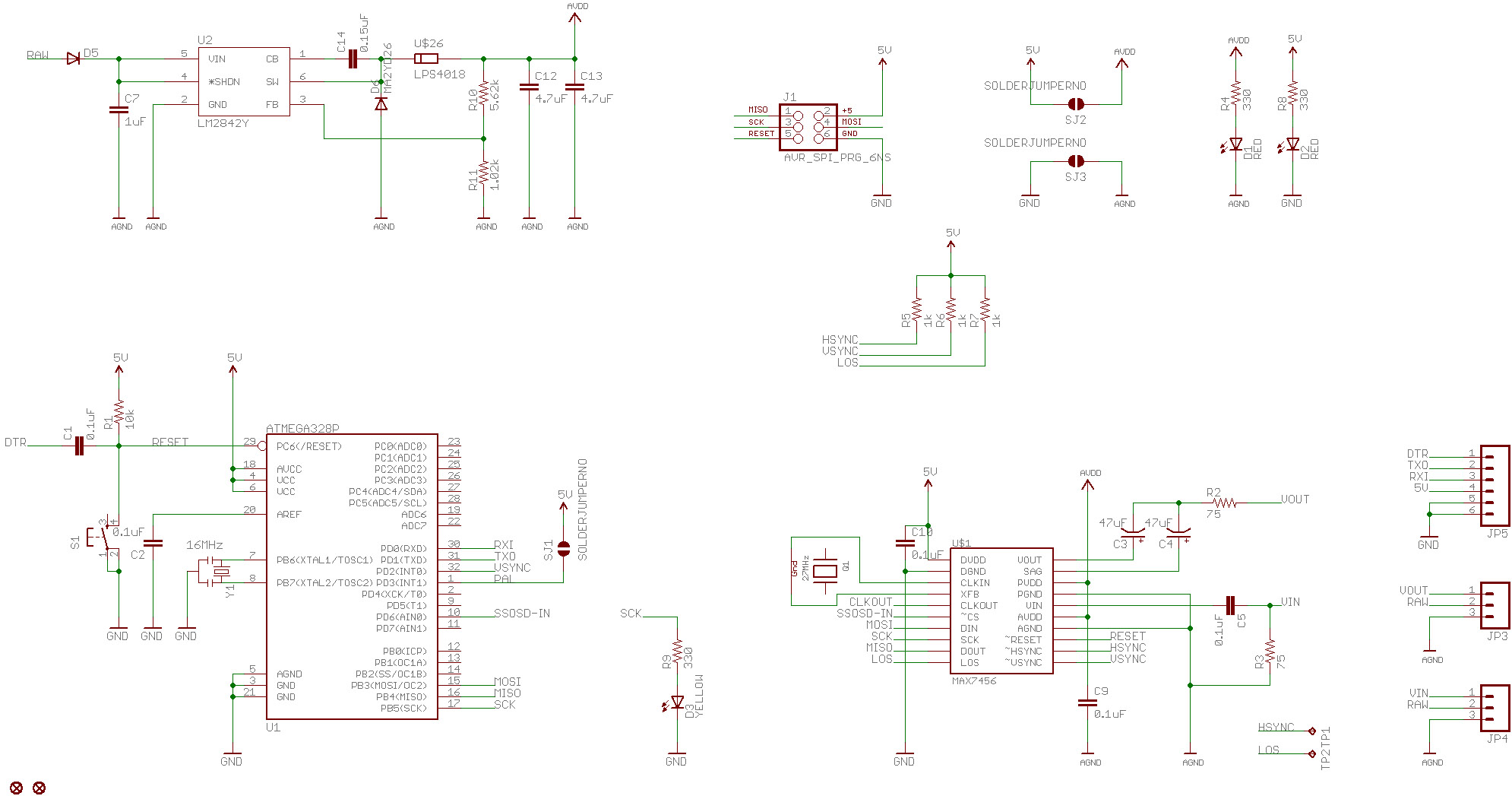

Mini OSD - płytka - moduł - rozszerzenie - max7456 - UART - schemat - nakładka wideo

Mini OSD - top view.

It has two independent power supply tracks:

  1. 5 V through FTDI for ATmega microcontroller and digital part of module.
  2. 5 V through video input for the analog part of the OSD, the controller tolerates input voltage up to 12 V

Specification

  • ATmega328P with Arduino bootloader uploaded
  • Built-in MAX7456 - monochrome OSD module
  • Compatible withUSB - UART convertersbased on FTDI chip
  • Two independent power supply sections with LED indication for each
  • Regulator with +5 V and 500 mA with an input voltage up to 12 V
  • Connection cables are included
  • Dimensions: 50 x 18 x 10 mm
  • Weight: 5 g
