Product description: Touch panel display iTouchSystem Raio 10.1 R4 V4 capacitive LCD TFT 10.1'' 1280 x 800 px in a steel housing for Raspberry Pi 4B/5
A 10.1" capacitive touchscreen panel with a 1280 x 800 px resolution designed for the Raspberry Pi 4B/Raspberry Pi 5 minicomputer. It works with the Linux family of systems. The display is housed in a steel housing . The screen supports VESA 100 x 100 mm mounting. The display is housed in a powder-coated steel housing. The device's design allows for the construction of a panel computer based on the Raspberry Pi 4B/Raspberry Pi 5 minicomputer. The set is adapted for operation in halls, warehouses, and harsh industrial conditions. It has all the minicomputer ports, plus a power switch and an antenna connector .

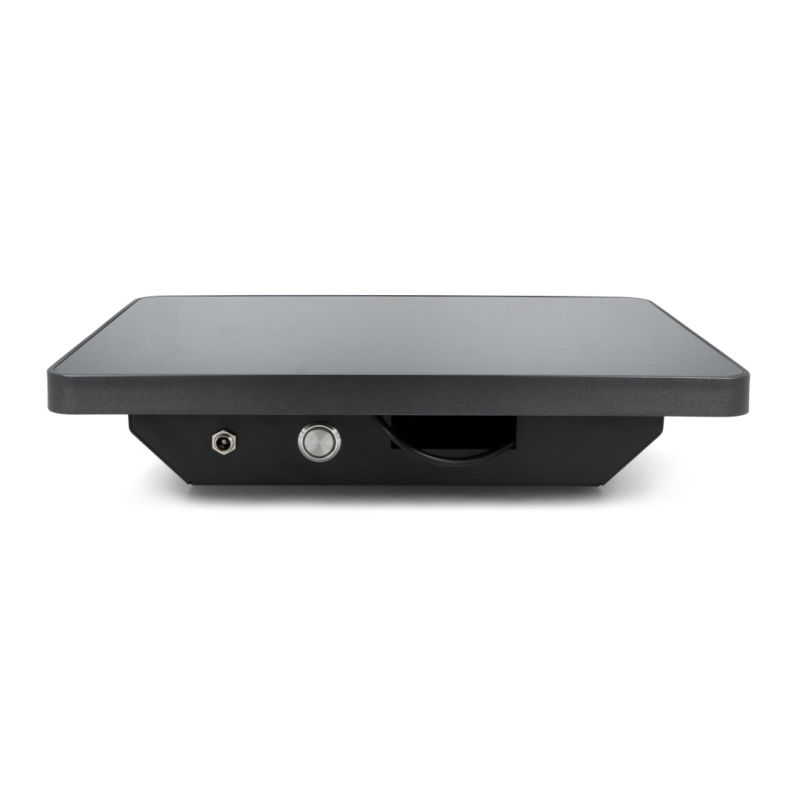

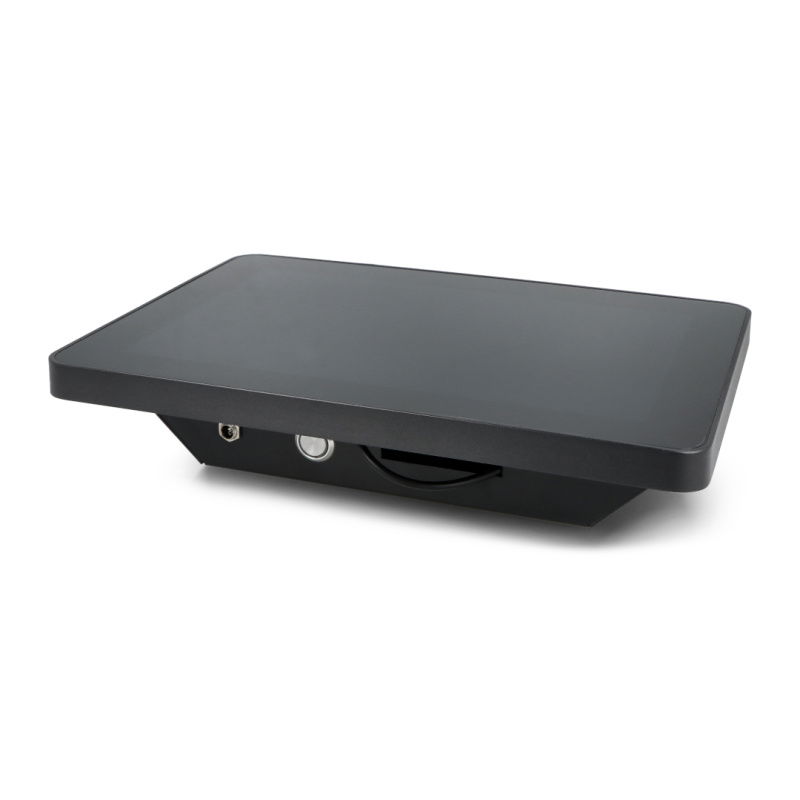

Raio 10.1 R4 V4 panel touchscreen.
The kit does not include the Raspberry Pi 4B/Raspberry Pi 5 minicomputer, they can be purchased separately. |
Industrial panel computer. Illustrative drawing .
Panel computers
Due to their relatively small size and extensive computing capabilities, panel computers are increasingly being used in technologically advanced industries. They are often used in industry as machine control panels or standalone industrial computers. So-called operator panels are characterized by high mechanical durability and increased performance.
Slightly less complex models also find applications in many areas of everyday life. Panel computers can be found in increasingly popular self-service checkouts, customer service panels , and interactive learning platforms, among others.
Raspberry Pi compatibility
Combining a Raio touchscreen with a Raspberry Pi creates a fully-fledged panel computer running the Raspberry Pi operating system. This Raio panel computer model is designed for easy installation on a Raspberry Pi 4B/Raspberry Pi 5. The video below shows how to install the popular Raspberry Pi in a panel in just a few steps.
Example of using a panel computer .
iTouchSystem Panel Computer Specifications
| Specification | |
|---|---|
| Case | Steel and aluminum powder coated |
| Screen diagonal | 10.1" |
| Screen resolution | 1280 x 800 px |
| Display type | LCD TFT |
| Display brightness | 250 cd/m2 |
| Touch | Capacitive |
| Supply voltage | 12V |
| Power consumption | 25 W |
| Video input | HDMI |
| Operating temperature | from 0°C to 50°C |
| Working humidity | from 10% to 95% RH at 40°C |
| Available ports | 2x USB 2.0 Ethernet SMA WiFi antenna |
| Dimensions | 267 x 183 x 60 mm |
| Mass | approx. 1 kg |
Installing Raspberry Pi in iTouchSystem Raio .
The set includes
- iTouchSystem Raio 10.1 R4 V4 screen

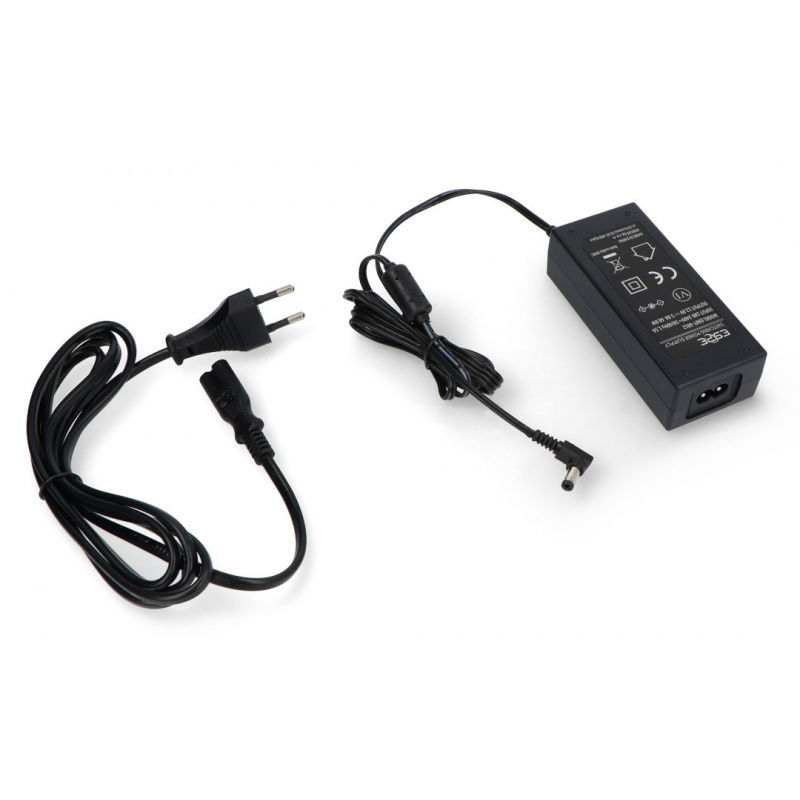

- 12V power supply
iTouchSystem Raio 10.1 R4 V4 capacitive LCD TFT touchscreen display 10.1'' 1280x800px in steel housing for Raspberry Pi 4B/Raspberry Pi 5
We offer a professional screen with a built-in capacitive touchscreen, measuring 10.1 inches diagonally and maintaining a resolution of 1280 x 800 pixels. The display is designed to work best with the Raspberry Pi 4B/Raspberry Pi 5 minicomputer.
The touchscreen display has been designed to be easily used in industrial environments (e.g., a factory). The screen is housed in a special steel housing and has all the ports from the Raspberry Pi 4B/Raspberry Pi 5.
Raspberry Pi 4B/Raspberry Pi 5 screen - display for industrial applications
The offered touchscreen will work perfectly as a full-fledged panel computer using the Raspbian OS operating system.
These types of touchscreen displays, when combined with a Raspberry Pi 4B/Raspberry Pi 5, can be used both at home and in factories. For example, they can act as a control panel for modern machines or as a customer dashboard.
