Product description: iTouchSystem Raio 15 capacitive LCD touchscreen display 15.6'' 1920 x 1080 px in a steel housing for Raspberry Pi 4B/5
An LCD touchscreen display from iTouchSystem, designed for the Raspberry Pi 4B/Raspberry Pi 5 minicomputer. The screen has a diagonal of 15.6" and a resolution of 1920 x 1080 px . It is housed in a sturdy steel housing. This design is perfect for a variety of electronics projects. It allows you to build a panel computer based on the Raspberry Pi. The set is suitable for use in production halls and warehouses, including harsh industrial environments. The display is based on the Linux family of systems available for the Raspberry Pi. It is powered by 12 V and its current consumption is approximately 15 W. The monitor weighs 3 kg .
The sale is for a touchscreen display. The Raspberry Pi 4B/Raspberry Pi 5 minicomputer must be purchased separately.

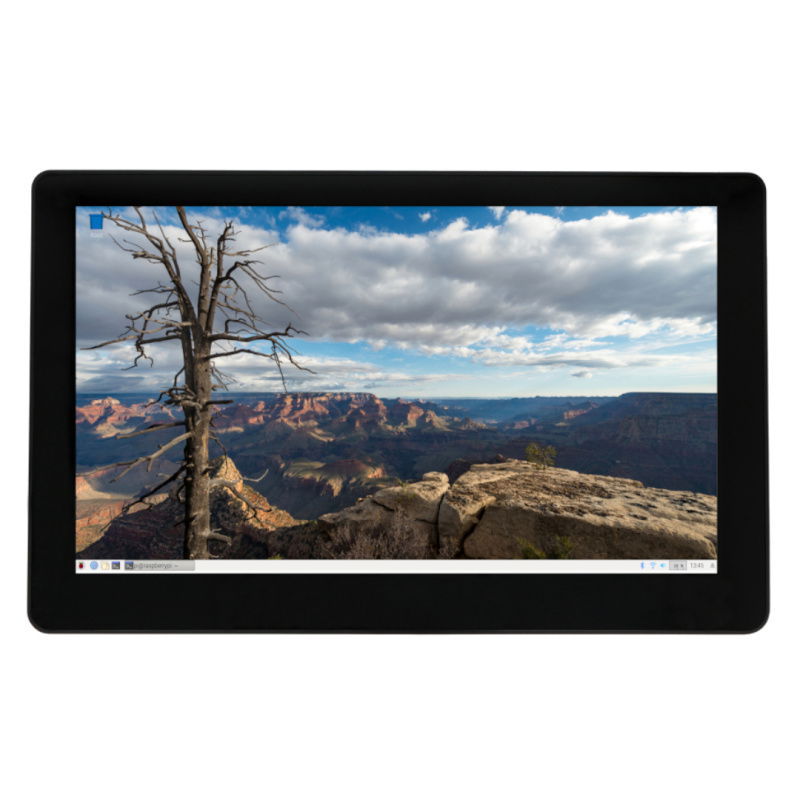

iTouchSystem Raio 15 touchscreen display.
The kit does not include an RPi board. It must be purchased separately.
Main features of the Raio 15 display
- Touchscreen LCD display
- Dedicated to Raspberry Pi 4B/Raspberry Pi 5
- Solid steel housing
- Possibility of building a panel computer
- Can be used in electronic projects intended for use in industrial conditions
Panel computers
Due to their relatively small size, mechanical durability, and extensive computing capabilities, panel computers are increasingly being used in technologically advanced industries . In industry, they serve as machine control panels or standalone industrial computers. They can also find applications in everyday life , such as self-service checkouts in stores or panels facilitating customer service. and interactive educational platforms.
Raio 15 allows you to create a panel computer.

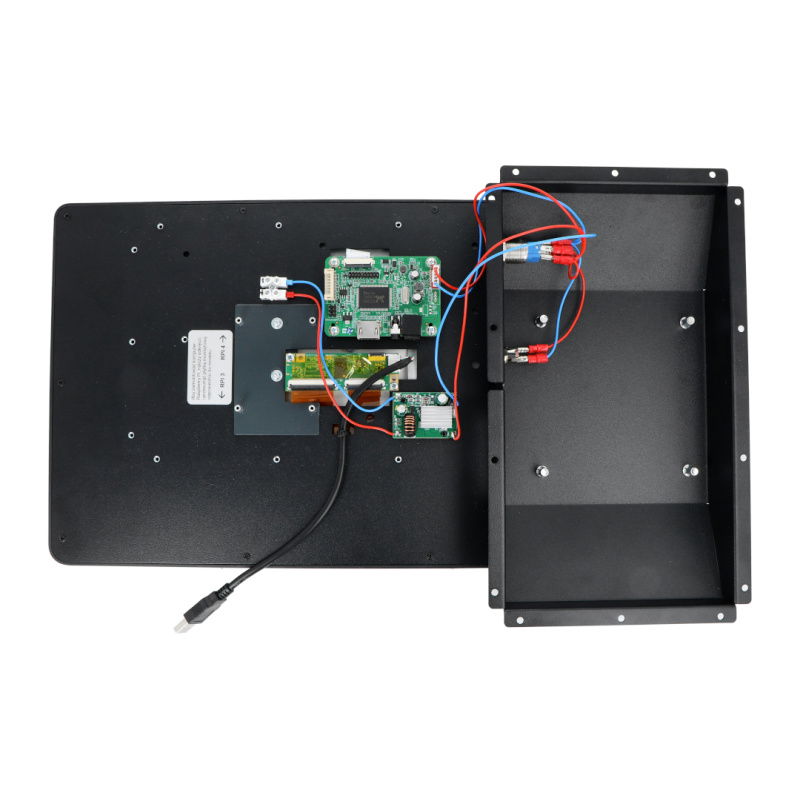

Inside the case.
Raspberry Pi compatibility
Combining a Raio touchscreen with a Raspberry Pi minicomputer creates a fully-fledged panel computer running the Raspberry Pi OS. The Raio 15 model is designed for easy installation on a Raspberry Pi 4B/Raspberry Pi 5. Inside the display's steel housing, there's a dedicated space for the board. All the necessary cables for connecting the Raspberry Pi to the screen are included.
Raio 15 display technical specifications
- Manufacturer: iTouchSystem
- Model: Raio 15
- Compatibility: Raspberry Pi 4B/Raspberry Pi 5
- Display type: LCD TFT touchscreen
- Screen diagonal: 15.6"
- Resolution: 1920 x 1080 px
- Operating temperature: 0°C to 50°C
- Relative humidity: 10% to 95%
- Input voltage: 12V
- Power consumption: approx. 15 W
- Weight: 3 kg
Contents of the set
- Raio 15 LCD 15.6'' touchscreen display
- Charger
- microUSB - HDMI cable
- MicroUSB connection cable
- USB C connection cable

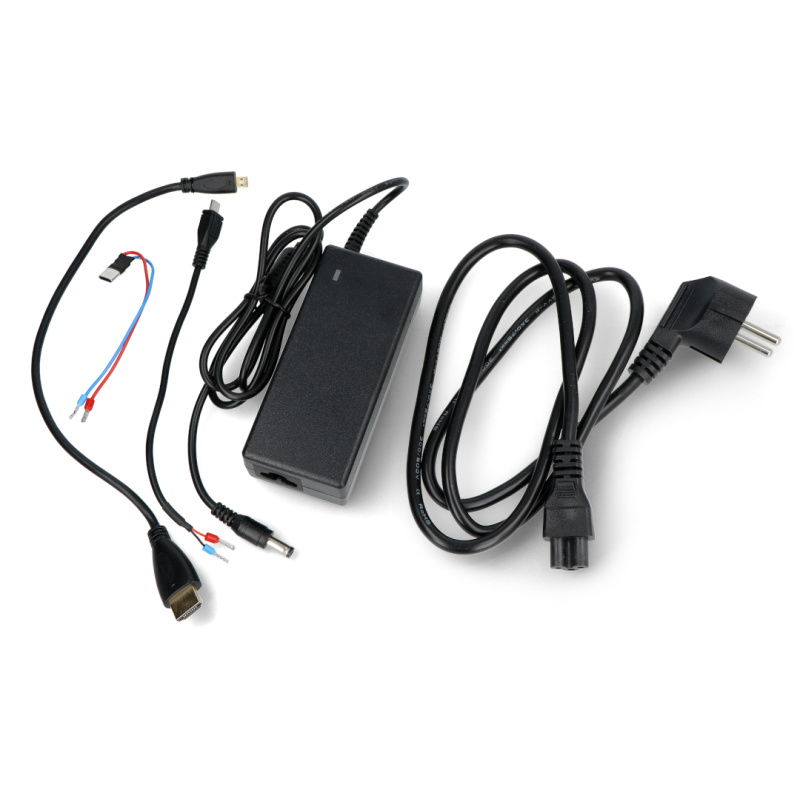

Cables included in the kit.
