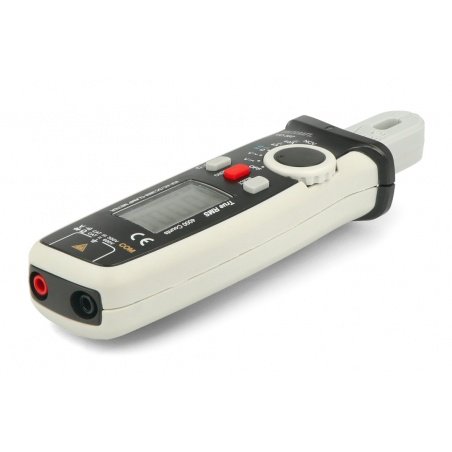

Clamp Meter Voltcraft VC-337

Index: CNR-19319 EAN: 4053199957033
Clamp meter for measuring DC and AC voltage up to 600 V and DC and AC current up to 40 A. It also allows to measure the value of resistance and capacitance. With specially designed, narrow jaws can be used in hard to reach places, with tightly arranged wires. The product can be used, among others, in control cabinets.
€65.78
€53.48 tax excl.
Delivery scheduled for 2022-01-21
Waiting for delivery
30-day returns
PayPal payment
Manufacturer: Voltcraft

Product description: VolTCRAFT Clamp meter VC-337

Clampmeterfor measuring DC and AC voltageup to 600 Vand DC and AC currentup to 40 A. It also allows to measure the value of resistance and capacitance. With specially designed, narrow jaws can be used in hard to reach places, with tightly arranged wires. The product can be used e.g. in control cabinets.

Within the scope of quality control, allVoltcraftmeasuring devices undergo calibration in accordance with the workshop standard after the production phase. The certificate is not issued in a paper form.

Miernik cęgowy Voltcraft VC-337

VoltcraftVC-337 clamp meter.

Pomiar z wykorzystaniem VOLTCRAFT VC-337 w szafie sterowniczej

Measurement using the Voltcraft VC-337 in a control cabinet.

Specially designed for use in hard-to-reach places

Narrow pliers allow precise measurement even in hard to reach places. When measuring current values, the product does not require the cable to be pulled out of the connection. For this purpose, it is enough to press the jaws between the cables. The integrated stops eliminate the risk of the cable going too deep into the clamps. VOLTCRAFT VC-337 is suitable for use in control cabinets, for example.

Other functionalities of the VOLTCRAFT VC-337

  • The measurement opening of the VOLTCRAFT VC-337 has a diameter of 5.5 mm and allows for current measurements on wires with a cross-section of up to 6 mm2.
  • Rubber casing provides a stable and firm grip on the device during measurement.
  • The meter does not require disconnection of the measuring system. This allows to avoid downtime of the tested machines
  • TrueRMS measurement allows precise measurement of asymmetrical voltages and currents, deviating from the basic sinusoidal waveform

Miernik cęgowy VOLTCRAFT VC-337
Example of using the Voltcraft VC-337 clamp meter.

Parameter Range
Minimum measurement range of DC voltage 0.1 mV
Maximum measurement range of DC voltage 600 V
Minimum measuring range of AC voltage 0,001 V
Maximum measuring range of AC voltage 600 V
Minimum measuring range of DC current 0,001 A
Maximum measurement range of DC current 40 A
Minimum measuring range of AC current 0.001 mV
Maximum measuring range of AC current 40 A
Resistance measurement range 0.1 Ω to 40 MΩ
Capacitance measurement range 0.1 nF to 100 µF
Basic accuracy (+/-) 0,8%
Type of measurement True RMS
Voltage measurement DC / TRMS, AC / DC
Current measurement AC / DC, DC / TRMS
Power supply 2 x AAA battery
Measuring category CAT III 300 V, CAT II 600 V
Type of display digital
Measuring opening (forceps opening) 5,5 mm
Product dimensions 182 x 34 x 51 mm
Weight 134 g

Contents of the kit

  • VolTCRAFT Universal Meter VC-337
  • Protective case
  • Operating instructions
  • AAA batteries

The kit includes twoAAAbatteries necessary to power the device.

Zawartość zestawu Voltcraft VC-337


Contents of the Voltcraft VC-337 kit.

Meter - DC voltage yes
Meter - Diode tester yes
Meter - Battery tester no
Meter - Frequency no
Meter - AC voltage yes
Meter - AC current yes
Meter - Capacitance no
Meter - DC current yes
Meter - Resistance yes
Meter - Transistor tester no
Meter - Inductance no
Meter - Temperature no
Meter - Data Hold no
