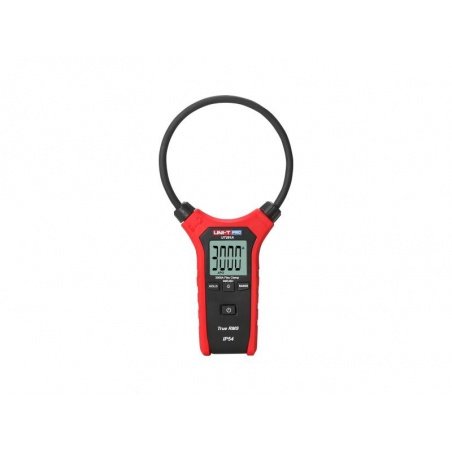

Clamp meter Uni-T PRO UT281A
Clamp meter Uni-T PRO UT281A
Clamp meter Uni-T PRO UT281A
Clamp meter Uni-T PRO UT281A
Clamp meter Uni-T PRO UT281A
Clamp meter Uni-T PRO UT281A
Clamp meter Uni-T PRO UT281A
Clamp meter Uni-T PRO UT281A - zdjęcie 1
Clamp meter Uni-T PRO UT281A - zdjęcie 2
Clamp meter Uni-T PRO UT281A - zdjęcie 3
Clamp meter Uni-T PRO UT281A - zdjęcie 4
Clamp meter Uni-T PRO UT281A - zdjęcie 5
Clamp meter Uni-T PRO UT281A - zdjęcie 6
Clamp meter Uni-T PRO UT281A - zdjęcie 7

Clamp meter Uni-T PRO UT281A

Index: LEC-19075 EAN: 5901890028882
Digital clamp meter manufactured by Uni-T. Designed primarily for professional use. Measurements of AC current are presented on easy to read LCD display. AC current value is measured for TrueRMS rms value. The device is equipped with a flexible Rogowski coil that can be easily fastened on the measured cable.
€72.38
€58.85 tax excl.
Unavailable
Discontinued product
30-day returns
PayPal payment
Manufacturer: UNI-T

Attention!

The product has been discontinued. Check other products in category.

Product description: Uni-T PRO UT281A Clamp Meter

Digital clampmetermanufactured by Uni-T. Designed primarily for professional use.ACcurrent measurements are presented on easy to read LCD display. AC current value is measured forTrueRMSrms value. The device is equipped with a flexible Rogowski coil, which can be easily fastened on the measured wire. The product is placed in a rugged housing that meets theIP54protection standard. The measurement refresh rate is 3 measurements per second. The maximum indication that can be displayed on the screen is3000 A. The measuring ranges can be set both automatically and manually. The device is powered byAAA batteriesincluded in the set.

Baterie potrzebne do zasilania miernika znajdują się w zestawie.Batteries needed to power the meter are included.
Cęgi pomiarowe zastąpione zostały cewką Rogowskiego o średnicy 8 mm.

The clamps have been replaced by a Rogowski coil with a diameter of 8 mm.

Key features of Uni-T UT281A

  • TrueRMS rms measurement
  • Manual and automatic change of measuring ranges
  • Easy-to-read LCD display with automatic backlighting
  • Rogowski coil with a diameter of 8 mm instead of standard measuring clamps
  • Housing resistant to a fall from a height of 2 meters and meeting IP54 protection class standards
  • Maximum measurement possible to display 3000 A

Contents of the kit

  • UT281 meter
  • 3 x AAA batteries
  • User manual

Technical specification of the meter

  • AC current: 0 A to 3000 A
  • Frequency response: from 45 Hz to 500 Hz
  • Size of jaws: 8 mm Rogowski coil
  • TrueRMS: yes
  • Sampling rate: 3 measurements per second
  • LCD display: yes
  • Automatic range change: yes
  • Manual change of ranges: yes
  • Automatic switch off: yes
  • Buzzer: yes
  • Low battery indicator: yes
  • Data hold function: yes
  • Backlight: yes
  • Operating temperature: 0°C to 50°C
  • Degree of protection: IP54
  • Safety rating: CAT IV 600 V
  • Dimensions: 300 × 150 × 55 mm
  • Weight: 220 g
Miernik zasilany jest trzema bateriami AAA znajdującymi się w zestawie.

The meter is powered by threeAAA batteriesincluded in the package.

Meter - DC voltage no
Meter - Diode tester no
Meter - Battery tester no
Meter - Frequency no
Meter - AC voltage no
Meter - AC current yes
Meter - Capacitance no
Meter - Auto Range yes
Meter - DC current no
Meter - Resistance no
Meter - Transistor tester no
Meter - sound yes
Meter - Inductance no
Meter - Backlight yes
Meter - Temperature no
Meter - Data Hold yes
