• EOL

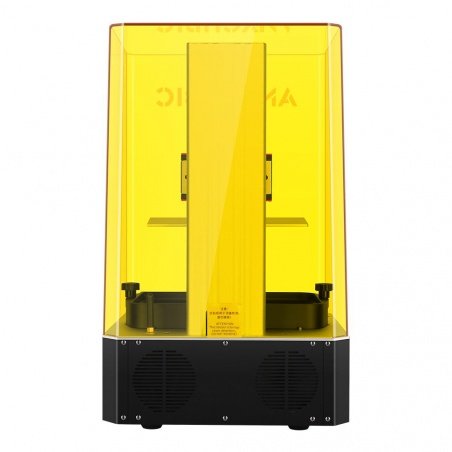

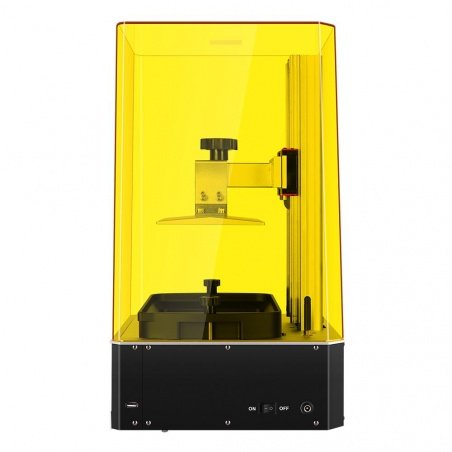

3D printer - Anycubic Photon Mono X

Index: ANY-20136 EAN: 6974662350008
3D printer using LCD-based SLA technology to form 3D prints. In the device for the emission of UV light with a wavelength of 405 nm, which cures the resin, is responsible for the monochrome LCD 4K projector with a diagonal of 8.9''. The improved UV matrix ensures more stable and uniform illumination. The working area of the printer is 192 x 120 x 245 mm. The construction of the printer has the following dimensions: 270 x 290 x 475 mm.
3D printer - Anycubic Photon Mono X
€595.90
€484.47 tax excl.
Unavailable
Discontinued product
PayPal payment
Manufacturer: Anycubic

Attention!

The product has been discontinued. Check other products in category.

Product description: 3D Printer - Anycubic Photon Mono X

3D printer using LCD-based SLA technology to form 3D prints. In the device for the emission of UV light with a wavelength of 405 nm, which cures the resin, is responsible for the monochrome LCD 4K projector with a diagonal of 8.9''. The improved UV matrix ensures more stable and uniform illumination. The working area of the printer is 192 x 120 x 245 mm. The construction of the printer is 270 x 290 x 475 mm.


3D printer - Anycubic Photon Mono X.

Funkcja zatrzymania pracy po zdjęciu pokrywy

The function of stopping the work after removing the cover.

Safety of use

Anycubic Photon Mono X will immediately shut down if the top cover of the device is removed. This feature protects against uncontrolled exposure to the projector's UV light. It is enabled by default on the device.

Anycubic Slicer Software

New features have been added to the manufacturer-supplied 3D printer software. Slicer supports up to 8x anti-aliasing. This makes cutting and splitting the model even faster.

Ulepszony slicer

Improved Software.

Prędkość druku Photon Mono X to nawet 60 mm/h

Photon Mono X print speed is up to 60 mm/h.

Even faster printing

With the Anycubic Photon Mono X, the exposure time is only 1.5 to 2 seconds and the maximum printing speed is 60 mm/h. These parameters make the printer even 3 times faster than the standard Photon model.

Precise Z-axis movement

The Z-axis design is based on a combination of dual linear rails, a stepper motor and a spacer nut. This solution significantly improves stability during movement and reduces the risk of layer shift.

Rozwiązania konstrukcyjne osi Z

Z-axisdesign solutions.

Nowe źródło światła UV Matrix
New UV Matrix light source.

New UV Matrix light source

Improved matrix design for uniform, consistent UV light illumination. Monochrome 4K LCD display (projector) with 8.9'' diagonal provides high quality 3D resin prints.

Efficient cooling system

The cooling system of Anycubic Photon Mono X, is based on dual fans. Thanks to high efficiency it provides high stability and long life of the device.

Wydajny system chłodzenia

Efficient cooling system.

Duży obszar roboczy

Large working area.

Large working area

Anycubic Photon Mono X has a working area with dimensions: 192 x 120 x 245 mm. It can be used to form large, complex 3D models. Thus, the printer is widely used in various fields, from amateur home applications to typically technical ones.

Monochrome 4K LCD display

The Anycubic Photon Mono X uses a 4K monochrome LCD projector with a diagonal of 8.9'', which allows for shorter exposure time of layers. It also ensures high detail of the final models. The Photon Mono X user gets high-quality prints in a short time.

Monochromatyczny wyświetlacz LCD 4K

Monochrome 4K LCD display.

Anycubic Photon Mono X 3D Printer Specifications

Technical specification
Printing method: LCD-based SLA
Power: 120 W
Printing speed: up to 60 mm/hour
LCD projector: 8,9'' 4K
Supported resin: UV 405 nm
Print thickness: 0.01 mm to 0.15 mm
XY axis precision: 0.050 mm (3840 x 2400 px - 4K)
Z axis precision: 0.01 mm
Operating mode: USB
Software: Photon Workshop
Print size: 192 x 120 x 245 mm
Printer dimensions: 270 x 290 x 475 mm
Weight: approx. 10 kg

3D - print surface 192 x120x245 mm
3D - type of printout UV - resin
3D - printing speed 60 mm/h
3D - printing thickness 0.01 - 0.15 mm
3D - UV wavelength 405 nm
Package width 39 cm
Package height 60.5 cm
Package depth 38 cm
Package weight 15.5 kg
