Kailh Big Mechanical Key Switch - Clicky Pale Blue - Adafruit 5307

Index: ADA-20793

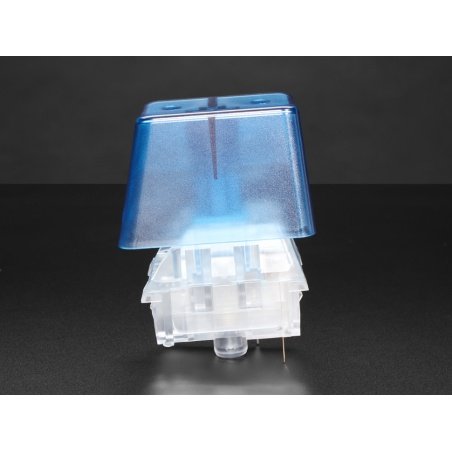

The big mechanical switch is based on Kailh brand switches. The Kailh Big Switch is fully functional and four times larger than a normal MX switch. The click button is equipped with a blue click cap. The dimensions of the switch without the cap are 62.4 x 55.8 x 55.8 mm. The switch operates with a voltage from 2 V to 12 V AC / DC and a current from 10 μA to 10 mA. Kailh Big Switch can be used as a fidget toy or soldered into NeoKey trinkey to create the largest Escape key known to mankind.
€32.78
€26.65 tax excl.
Unavailable
Only on request
30-day returns
PayPal payment
Manufacturer: Adafruit

Product description: Kailh Big Mechanical Key Switch - Clicky Pale Blue - large mechanical button - blue - Adafruit 5307

The big mechanical button is based on Kailh brand switches. The Kailh Big Mechanical Key Switch is fully functional and four times larger than a normal MX switch. The click switch is equipped with a blue cap marked Click. The dimensions of the switch without the cap are 62.4 x 55.8 x 55.8 mm. The switch operates with a voltage from 2 V to 12 V AC / DC and a current from 10 μA to 10 mA. The Kailh Big Switch can be used as a fidget toy or soldered into a NeoKey trinkey to create the largest Escape key known to mankind.

Duży przycisk mechaniczny Kailh
Big Click mechanical button with Kailh switch.

Kailh Big Mechanical Key Switch Specifications

  • Type: click (Clicky)
  • Travel distance:
    • actuation: 4.8 mm
    • bottom: 14 mm
  • Press force:
    • minimum: 280 g
    • working: 280 g
    • minimum level: 360 g
  • Mounting: plate
  • Color: light blue
  • Operating voltage: 2 V to 12 V AC / DC
  • Operating current: 10 μA to 10 mA
  • Storage temperature: from -20°C to 70°C
  • Operation temperature: from -10°C to 70°C
  • Operating humidity: 45% to 85% RH
  • Life: 5000000 cycles
  • Dimensions: 62.4 x 55.8 x 55.8 mm

Switch - type2 monostable
Switch - type mechaniczny
Switch - shape square
Switch - backlight no
