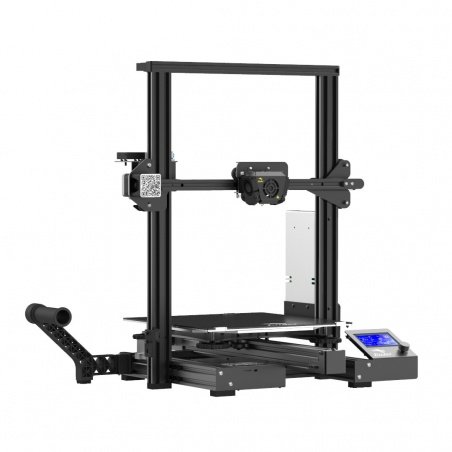

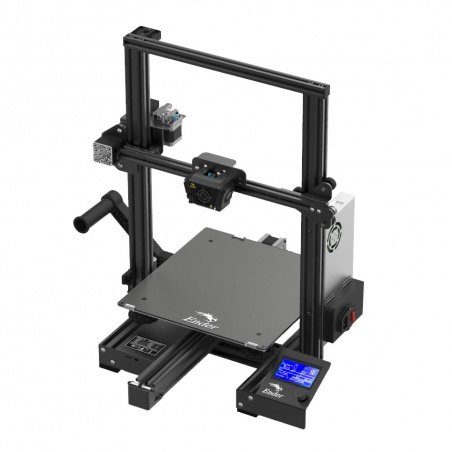

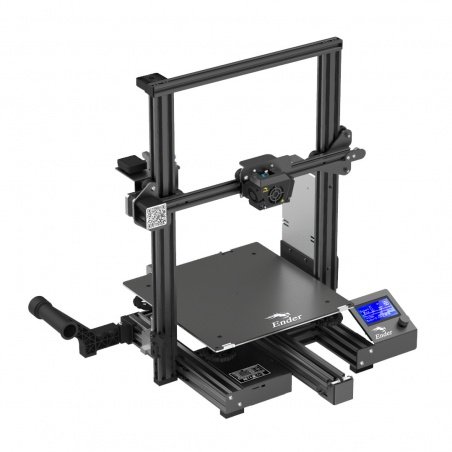

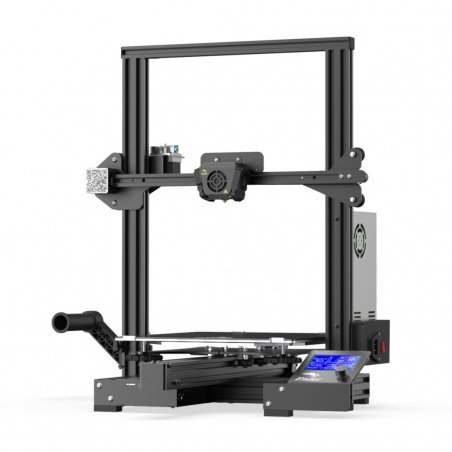

Product description: 3D Printer - Creality Ender-3 Max
A modified version of the hugely popular Creality Ender-3, the Max variation offers a larger workspace to create advanced models with maximum dimensions: 300 x 300 x 340 mm. The device has an efficient cooling system, based on the operation of several fans. Ender-3 Max has an upgraded print head with a hotend equipped with a copper nozzle and an all-metal extruder. The device features a resume function when power is lost. The dimensions of the 3D printer design are 513 x 563 x 590 mm.
The kit consists of partially assembled components.
Creality Ender-3 Max 3D Printer Assembly.
Aluminum printer frame
The construction of the printer is based on an aluminium frame, which ensures great stability during operation. High-quality materials used in the process of creating structural elements of the printer allow to achieve even better precision during the creation of 3D models. In the Ender-3 Max the utility values of the 3D printer are combined with a highly aesthetic appearance of the device.
The Ender-3 Max offers a large workspace, allowing you to create 3D prints with maximum dimensions of 300 x 300 x 340 mm. This allows for much larger models than the basic Ender-3, while maintaining a consistently high quality. The surface of the heating table features carborundum glass, which provides increased adhesion, an almost perfectly smooth first layer and easy removal of finished 3D prints.
High precision of the printer
The mechanics of the movement of the printing elements in the Ender-3 Max is the responsibility of a system consisting of a screw guide that is responsible for movement in the Z axis, V profiles and pulleys. Thanks to their high quality, these components ensure a smooth and stable movement of the printhead.
Improved cooling system
The Ender-3 Max uses a double cooling system to increase the efficiency of heat dissipation. An axial fan continuously supports the head's heat dissipation. An air supply on both sides ensures rapid cooling of the extruded felt.
Metal extruder and felt sensor
The Ender-3 Max has an all-metal extruder for easy filament application. In addition, the printer is equipped with a sensor, which immediately stops the printer in case of a break or the end of the printing material. It is possible to resume operation after reloading the filament.
Upgraded power supply and silent drivers
The Creality Ender-3 Max comes standard with a 350W power supply. Silent drivers are used for the X and Y axis stepper motors. They effectively reduce the noise and vibration of the motors generated during the printer's operation. This significantly increases the comfort of using the device.
Other printer features
Creality Ender-3 Max has a number of features and improvements that allow for more efficient use of the device. These include:
- Clear 3.5'' display controlled by a convenient rotary knob
- Supports both memory cards and USB communication
- Large knobs to facilitate the process of leveling the heating table
- Dedicated, easy to use filament holder
- Powerful stepper motors for precise movement
- Dedicated clutches to protect against excessive overload
- Additional, aesthetic cable protection
Technical specification Creality Ender-3 Max 3D Printer
|Supply voltage:||115 V to 240 V (AC - mains)|
|Operating voltage:||24 V (built-in power supply)|
|Total power:||350 W|
|Printing speed:||Up to 100 mm/s (recommended 30 to 60 mm/s)|
|Printing accuracy:||± 0.1 mm|
|Print thickness:||0.1 mm to 0.4 mm|
|Nozzle diameter:||standard: 0.4 mm,|
|Supported filament:||PLA, TPU, PETG, ABS|
|Filament diameter:||1.75 mm|
|Operation mode:||USB or from SD card,|
|File format:||STJ, obj, G-Code|
|Software:||Cura, Repetier-Host, Simplify3D|
|Print size:||300 x 300 x 340 mm|
|Nozzle temperature:||255°C max.|
|Work table temperature:||100°C|
|Printer dimensions:||513 x 563 x 590 mm|
