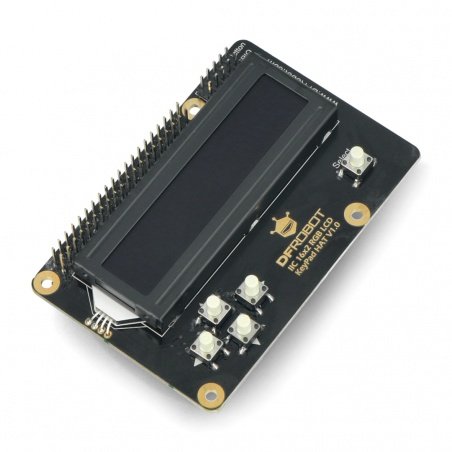

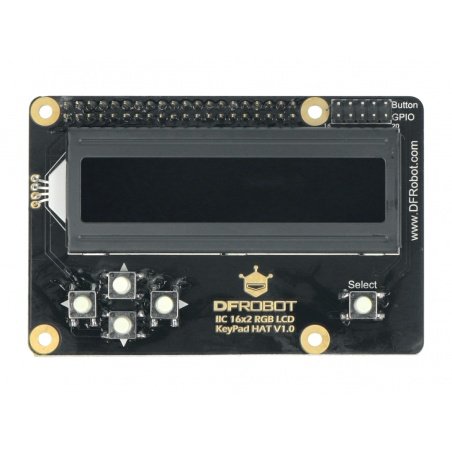

Product description: 16x2 RGB I2C KeyPad LCD display overlay for Raspberry Pi 3B+/4B - DFRobot DFR0603
Overlay forRaspberry Pi 3B+and4Bin form ofLCD displayproduced by DFRobot. The screen presents characters in atwo line 16x2layout. It displays values in the following configuration: black background andcolored subtitles. It performs a display in theRGBrange - 16 million colours, while it also enables to adjust the brightness of the backlight. The module is also equipped with5functionalbuttonsto control the Raspberry Pi, through which it is possible to switch the display and configuration. The 16x2 LCD can be used to build a miniature data display monitor or create a small operating platform together. The overlay uses theI2Ccommunication interface.

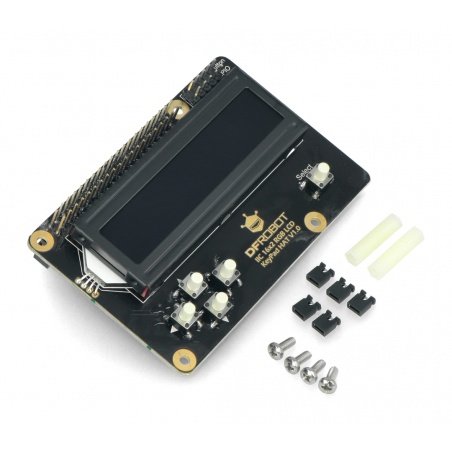

Contents of the set
- LCD 16x2 RGB I2C KeyPad - Raspberry Pi overlay
- Mounting elements
Product is compatible with Raspberry Pi.
A detaileduser guideis available on the manufacturer's website, which makes getting started with the display much easier. Among other things, it includes a description of the pins and instructions for configuring the overlay with the Raspberry Pi.
Technical specification of the overlay
- Overlay type: LCD display

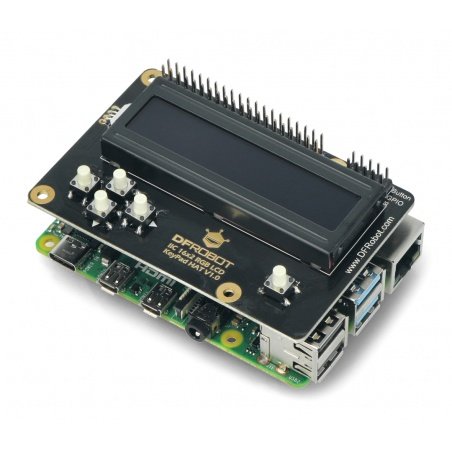

- Overlay compatible with Raspberry Pi versions 3B+ and 4B
- Supply voltage: 5 V
- Logic voltage: 3,3 V
- Operating current: ≤ 60 mA
- Display size: 16 x 2
- Communication interface: I2C bus
- Backlighting: adjustable RGB backlighting
- Color gamut displayed: RGB 16 million
- Display effects: black background - coloured inscriptions
- Equipped with 5 user buttons
- Operating temperature range: from -20°C to 70°C
- Storage temperature range: from -30°C to 80°C
- Module dimensions: 85 x 56 x 13 mm
In our offer you will also find a model with a display effect:coloured background - black lettering. You are welcome!
