Product description: Sonoff ZBBridge-U - ZigBee / Matter gateway - WiFi / Ethernet
The Sonoff ZBBridge-U gateway is the command center of your smart home. With support for the ZigBee 3.0 protocol and integration with Matter , the central unit allows for smooth and trouble-free connection to popular Smart Home ecosystems. The efficient 1.5 GHz processor , 1 GB RAM and 8 GB eMMC memory guarantee reliable operation and support for up to 256 devices simultaneously . The gateway offers not only a WiFi connection, but also a wired connection via the RJ45 Ethernet port, which ensures greater stability and responsiveness of automation. ZBBridge-U is the perfect solution for those who value the reliability and convenience of home control.

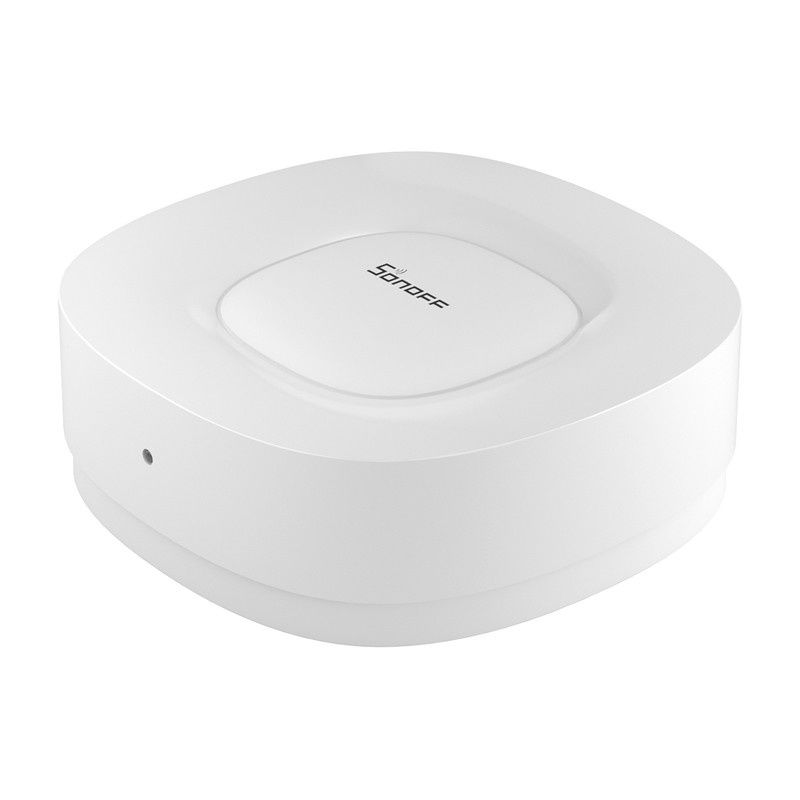

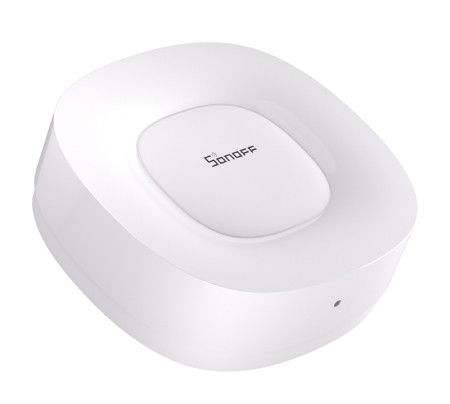

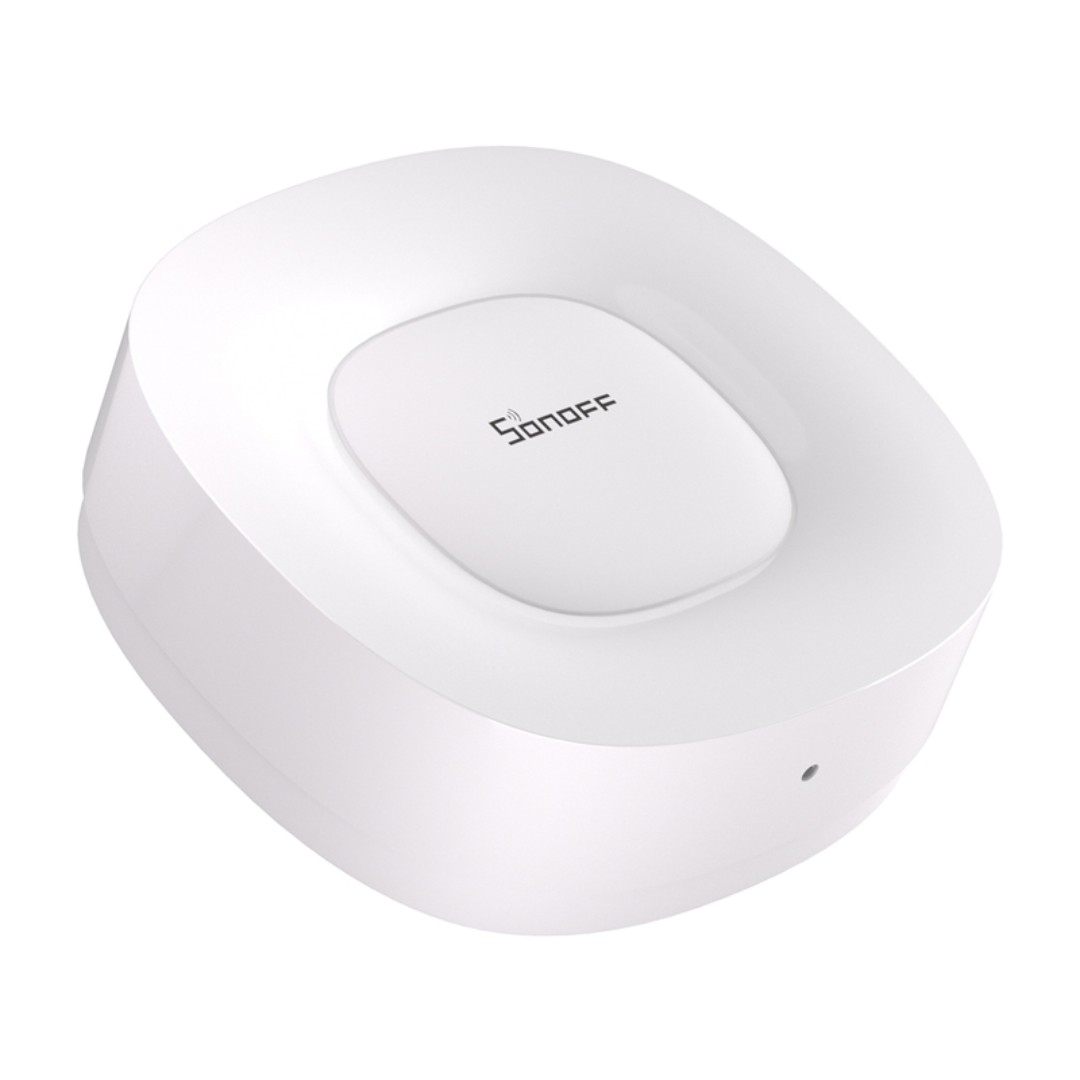

Sonoff ZBBridge-U - ZigBee / Matter - WiFi / Ethernet gateway.
The gateway connects Zigbee devices to the Matter ecosystem.
Main Features of the Sonoff ZBBridge-U Gateway
- Support for up to 256 ZigBee devices: allows for almost unlimited expansion of your smart home system
- Built-in RJ45 Ethernet port: provides a stable and fast network connection
- Matter Integration: Allows compatibility with multiple platforms such as Apple Home and Google Home
- Voice Control: Works with Siri, Amazon Alexa and Google Assistant
- Emergency center function: allows you to create security scenarios and notifications
- Modern hardware architecture: 1.5 GHz dual-core processor, 1 GB RAM and 8 GB eMMC memory
ZigBee and Matter support
ZBBridge-U connects ZigBee devices to the modern Matter ecosystem, allowing them to integrate with a variety of smart home platforms . This allows you to control Sonoff sensors, switches, and other accessories with Siri, Google Assistant, and Alexa . It's the perfect solution for people who want to combine ZigBee flexibility with Matter interoperability and enjoy the smart home of the future.
ZBBridge-U is compatible with Alexa, Siri and Google Assistant.

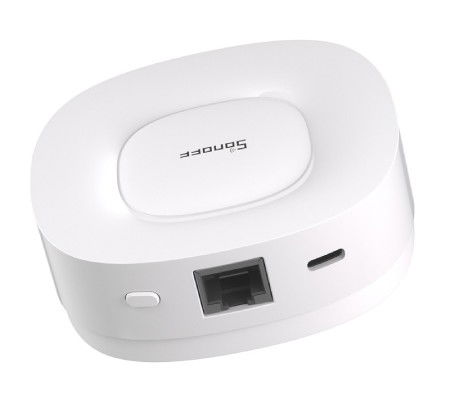

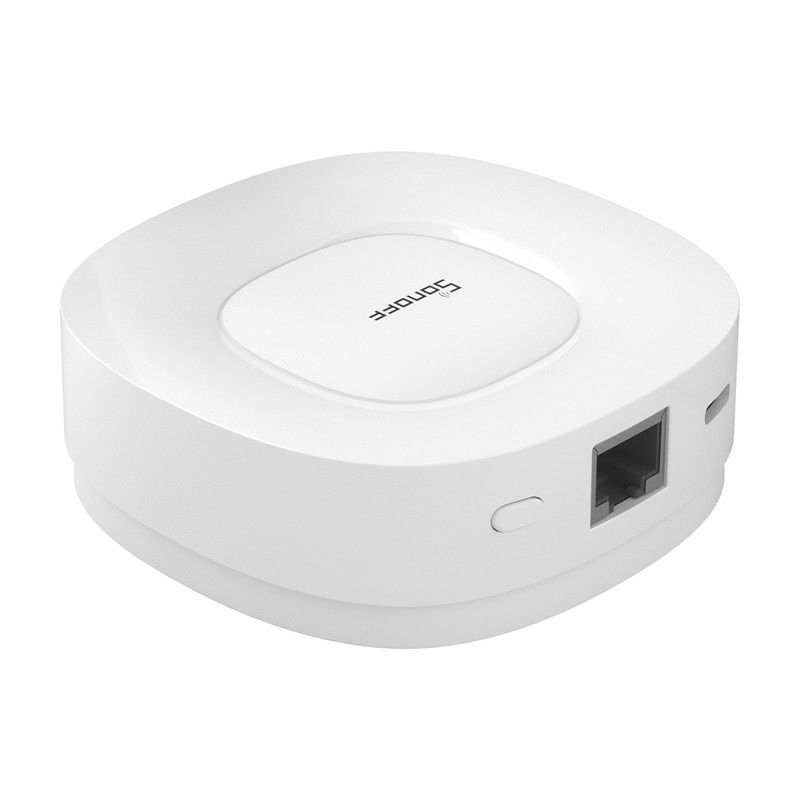

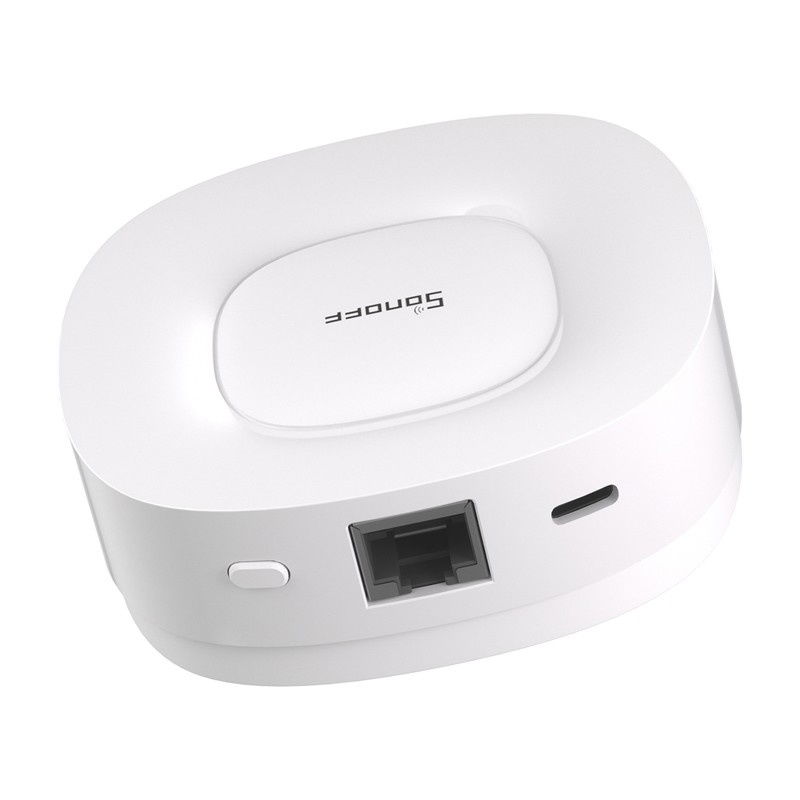

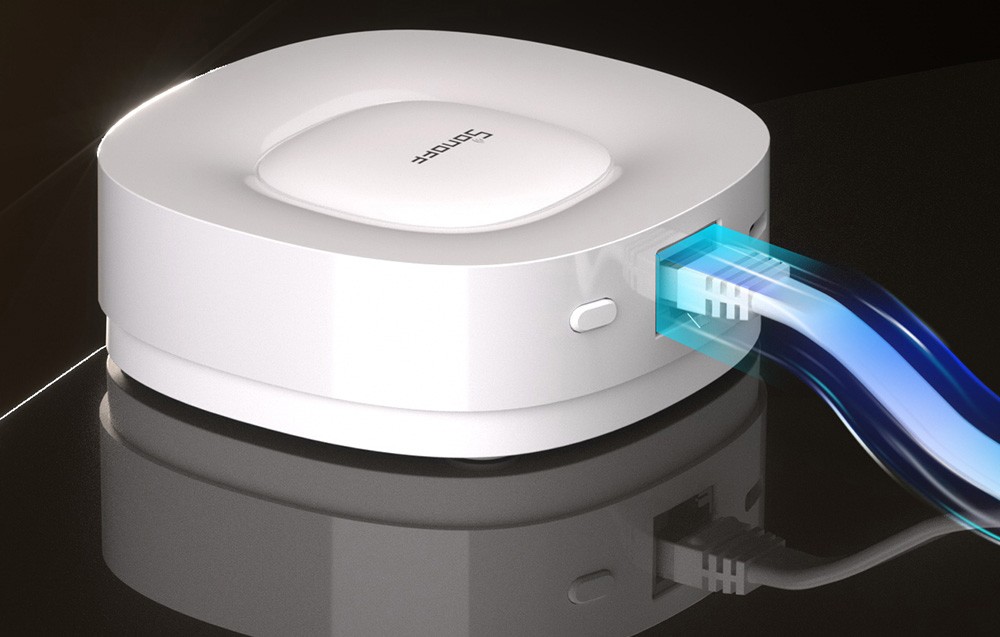

In addition to WiFi connectivity, the gateway offers an RJ45 Ethernet port, ensuring a stable and fast connection to the network.
Connectivity without compromise - WiFi, Ethernet and full compatibility
Sonoff ZBBridge-U gateway supports both 2.4GHz WiFi and Ethernet , offering more stable connections than pure wireless models. ZBBridge-U is compatible with a wide range of Sonoff ZigBee devices, and also works with Apple Home, Amazon Alexa, Google Home and SmartThings apps for maximum setup versatility.
Gateway Technical Specifications
- Model: ZBBridge-U
- Network interface: RJ45 (10/100 Mb/s)
- Power interface: USB Type-C
- Power supply: 5V/1A
- Connection: WiFi / Ethernet
- Wireless connectivity: WiFi IEEE 802.11 b/g/n 2.4 GHz, ZigBee 3.0
- System: EFR32MG21 + RV1109
- Processor: 1.5 GHz Dual-core
- DDR4 Memory: 1GB
- eMMC memory: 8GB
- Maximum number of connected devices: 256
- Compatibility: Apple Home, Amazon Alexa, Google Home, SmartThings
- Housing material: PC + ABS
- Operating temperature: -10°C to 40°C
- Operating humidity: 5% RH to 95% RH, non-condensing

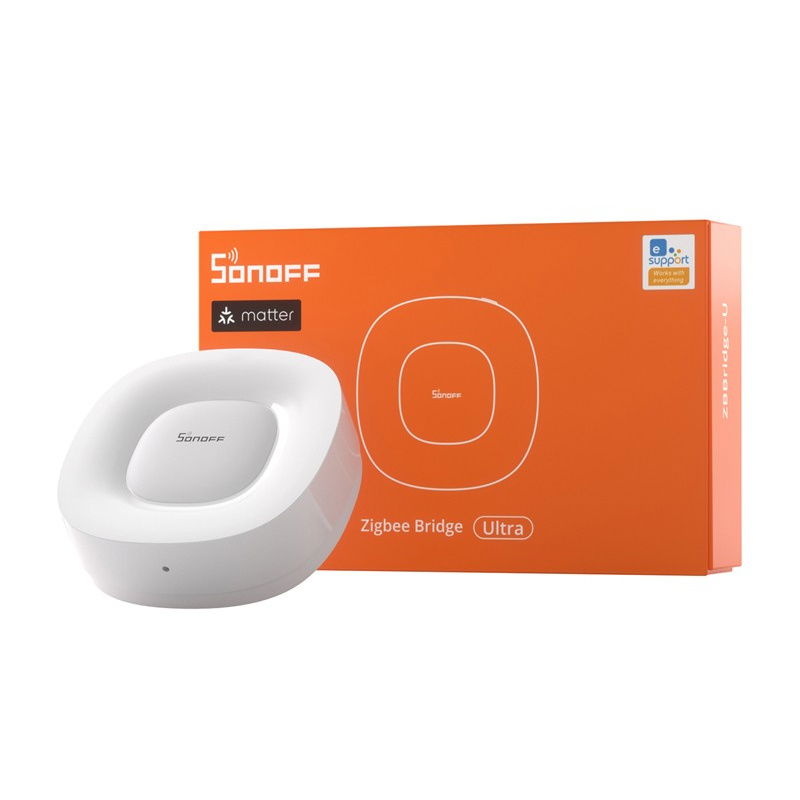

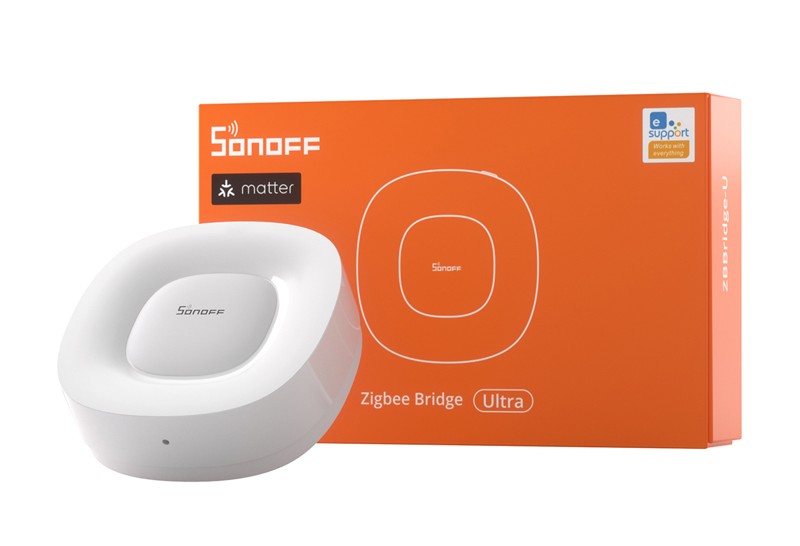

Kit Contents
- 1x Sonoff ZBBridge-U Gateway
- 1x RJ45 network cable (1m)
- 1x USB Type-C Cable (1m)
- 1x Quick start guide
Integration with sensors and other ZigBee devices allows you to create advanced automation.
