Product description: Voltcraft VC130-1 Universal Meter
Digital multimeter enables measurement ofDC and ACvoltageup to 250 V,DC currentflowup to 10 Aand resistance in the range from 0,1 Ω to 20 MΩ. In addition, with the help of the device it is possible totest diodesand hFE transistors. VOLTCRAFT VC130-1 has a Hold function, which allows you to pause the indication on the display. The meter is designed for home use and for simple workshop work.
Within the scope of quality control, allVoltcraftmeasuring devices undergo calibration in accordance with the workshop standard after the production phase. The certificate is not issued in a hard copy.

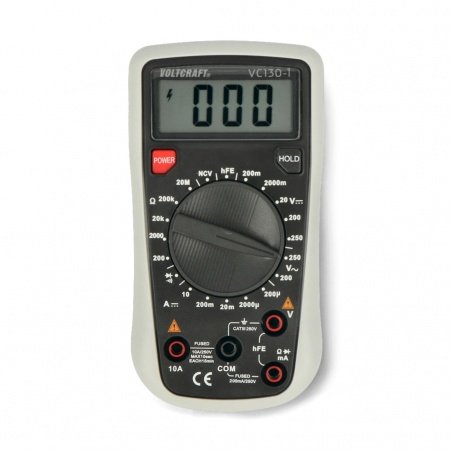

TheVoltcraft VC130-1 Universal Meter.
Front panel of the meter with the display.
Functions of the Voltcraft VC130-1 meter
- The non-contact alternating voltage (NCV) detection function allows to check if current is flowing in the power cable. It also facilitates the location of a damaged cable
- Robust rubber-coated housing protects the device and ensures a firm grip in the hand, even when wearing protective gloves
- The device requires manual adjustment of the measuring range
- The Multimeter has an acoustic circuit continuity tester function
- The meter is equipped with a low battery indicator
Voltcraft VC130-1 Universal Multimeter Specification
| Parameter | Range |
|---|---|
| Minimum measuring range of DC voltage | 0.1 mV |
| Maximum measuring range of DC voltage | 250 V |
| Minimum measuring range of AC voltage | 0,1 V |
| Maximum measuring range of AC voltage | 250 V |
| Minimum measuring range of DC current | 0.1 µA |
| Maximum measuring range of DC current | 10 A |
| Resistance measurement range | 0.1 Ω to 20 MΩ |
| Internal DC resistance | 10 MΩ |
| AC internal resistance | 10 MΩ |
| Basic accuracy (+/-) | 0,5% |
| Voltage measurement | AC / DC |
| Voltage measurement | DC |
| Type of measurement | average value |
| Frequency range | 40 Hz to 400 Hz |
| Power supply | battery 9V 6LF61 (included) |
| Measuring category | CAT III 250 V |
| Type of display | digital |
| Dimensions of product | 137 x 72 mm |
| Weight | 200 g |
Contents of the set
- Voltcraft VC130-1 meter
- Test leads
- Instruction manual
- Battery 9V 6LF61
The kit includes a9V 6LF61battery that is required to power the multimeter.
Contents of the Voltcraft VC130-1 meter set.
