Attention! The product has been discontinued. Check other products in category. |

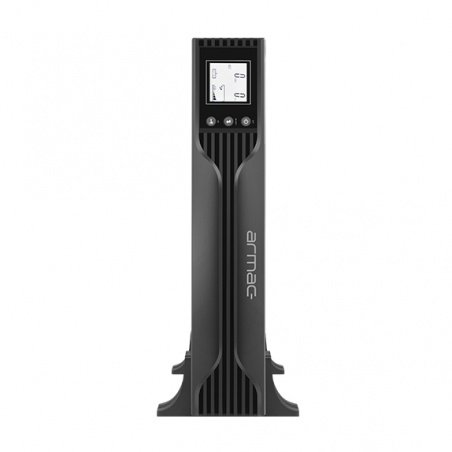

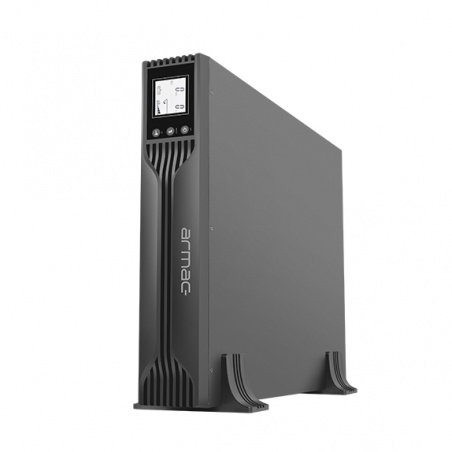

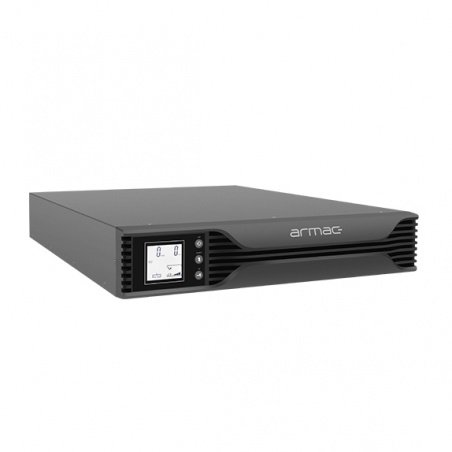

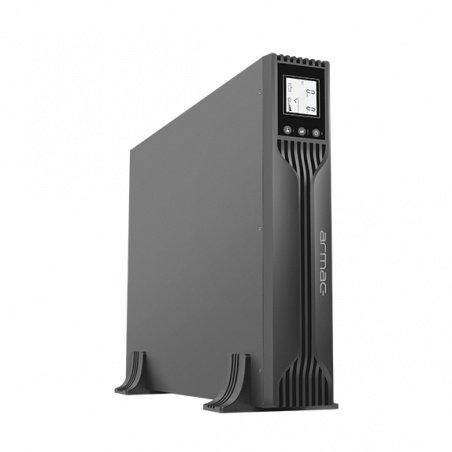

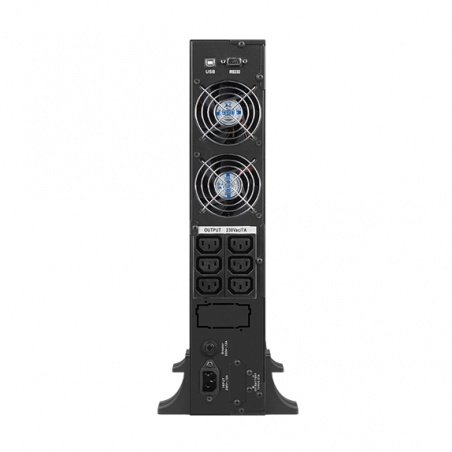

Product description: UPS Armac Rack On-line 19'' 3000I - 6 x 230 V IEC
UPS emergencypower supply unit produced by Armac. It is the most powerful representative of the seriesRack On-line. The power of this power supply is3000 VA / 2400 W. It allows you to protect equipment used in server rooms and IT studios, where power consumption is at a very high level. It can be easily installed in a 19" server rack. The UPS is equipped with surge protection that prevents damage to the UPS and the connected devices. The UPS uses anon-line topologyforcontinuous operationandnear-zerotransfer times. The unit is equipped with six12 V / 9 Ahbatteries with a total voltage of72 V. The UPS has sixIEC C20 output sockets.
Key features
- Compatible with 19" racks
- On-line topology for immediate response to power cuts
- Sinusoidal waveform on the output sockets
- 6 x IEC C20 sockets
- PowerManager II monitoring system
- Convenient vertical and horizontal mounting
- Equipped with an overload protection module
- Microprocessor control
- Built-in automatic voltage regulation (AVR)
On-line rack mount UPS compatible with 19" racks.
Technical specification of the uninterruptible power supply from Armac
- Size: 19"
- Socket type: 6 x IEC C20
- Connectors: RS232, USB B
- Power (apparent / active): 3000 VA / 2400 W
- Input voltage: 230 V
- Output voltage range: 220 V / 230 V / 240 V AC
- Output waveform (battery mode): full sine wave
- Topology: On-line
- PowerFactor: 0.8
- Battery classification: 6 x 12 V / 9 Ah
- Transfer time:
- AC to battery mode: 0 ms
- Inverter to Bypass: 4 ms
- Output frequency: 50 Hz
- Battery charge time: 4 to 6 hours to 90% capacity
- Sustain time: depending on load
- Noise level: < 45 dB
- Telecommunication height: 2 U
- Hold time at 100% load: 5.5 minutes
- Monitoring software: PowerManager II (recommended)
- Operating conditions: Indoor
- Dimensions: 440 x 88 x 600 mm
- Weight: 25.3 kg
