Product description: JT-JDS2960 60MHz function generator - 2 channels

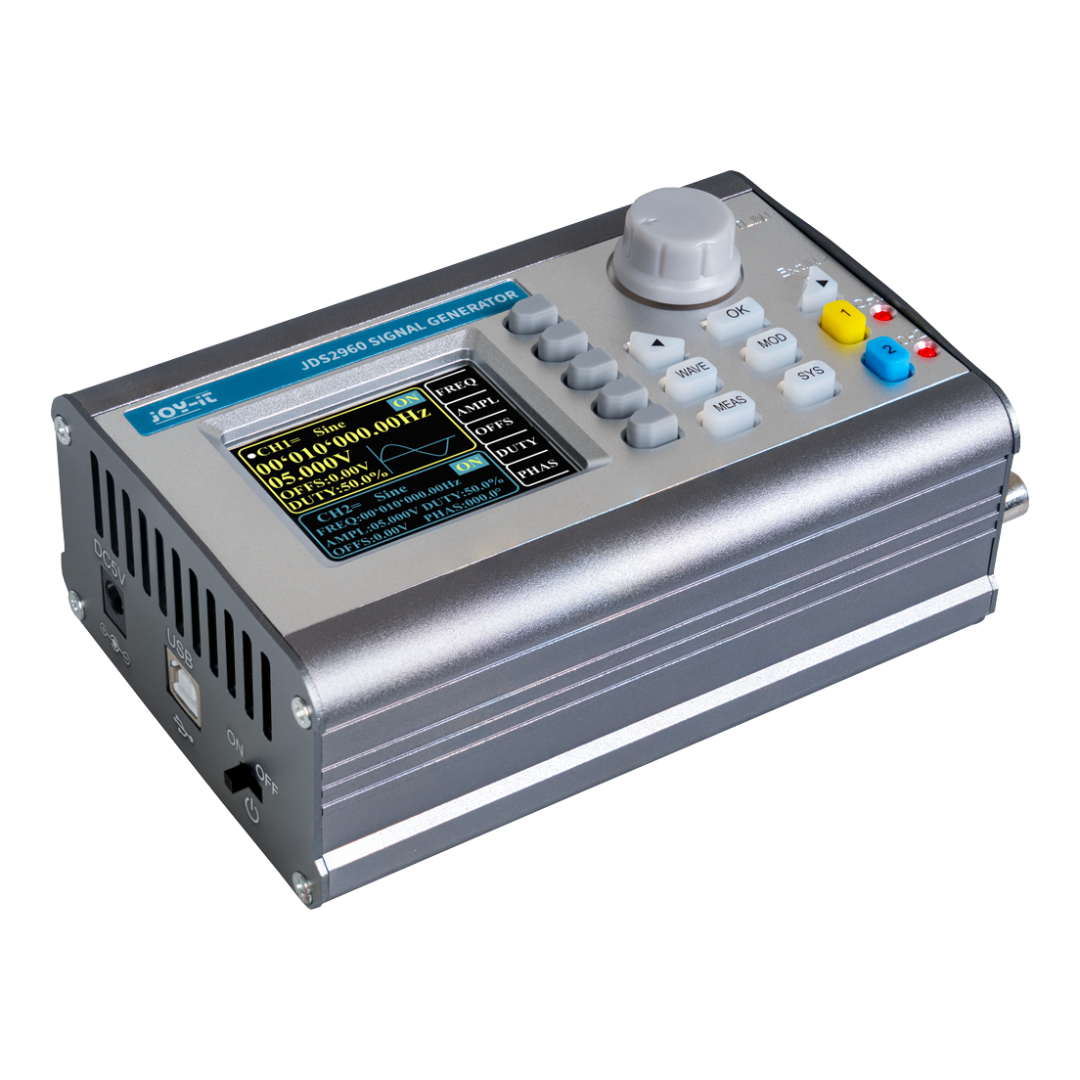

JT-JDS2960 advanced, dual-channel function generator with built-in frequency counter that generates signals with a frequency of up to 60 MHz . It supports a variety of waveforms, including sine, square, triangle , pulse , as well as 60 user-programmed waveforms. It also offers a burst and sweep function (linear and logarithmic transformations), making it a very versatile tool in applications requiring adjustment of the frequency, amplitude and duration of signals. The device is equipped with an integrated frequency counter , with a range from 1 Hz to 100 MHz with an accuracy of ± 20 ppm , which ensures very precise measurements. The 2.4'' TFT display allows easy control over all parameters and provides a clear view of the settings. The compact design of the JT-JDS2960 allows its mobile use, supported by the included USB to DC cable and an optionally available power bank . This combination makes it an excellent tool for testing circuits, communication systems, or measurements in electronics laboratories.
Special Features
- 2 channels: ability to generate two different signals simultaneously
- Frequency range: up to 60 MHz for sinusoidal signal
- Precision frequency counter: 1 Hz to 100 MHz range with an accuracy of ±20 ppm
- Signal versatility: sine, square, triangle, pulse, PWM, CMOS wave, sawtooth wave, exponential rise/fall, etc.
- Burst and Sweep function: allows you to generate bursts (a series of signal cycles) and smoothly sweep the frequency within a specified range
- High precision: 0.01 µHz frequency resolution and 1 mV amplitude resolution
- 2.4” TFT display: for easy operation and configuration
- Advanced Features: Phase Shift Control, Offset Control, Amplitude Stability
Generator Technical Specifications
- Number of channels: 2
- Generator frequency range:
- Sine wave signal: 0 MHz to 60 MHz
- Other waveforms (square, triangle): 0 MHz to 25 MHz
- Amplitude:
- Sinusoidal signal: 2 mVpp to 20 Vpp
- Square, Triangular Signal: 2 mVpp to 10 Vpp
- Pulse signal: 0 MHz to 6 MHz
- TTL/CMOS Signal: 0MHz to 6MHz
- Sampling rate: 266 MSa/s
- Length of run: 2048 points
- Signal vertical resolution: 14 bit
- Frequency accuracy: ±20 ppm
- Square wave rise time: ≤ 10 ns
- Modulation functions: Sweep, Burst, Pulse
- Frequency counter function: up to 100 MHz
- Frequency Stability: ±1 ppm/3 hours
- Power supply: 5V DC ± 0.5V

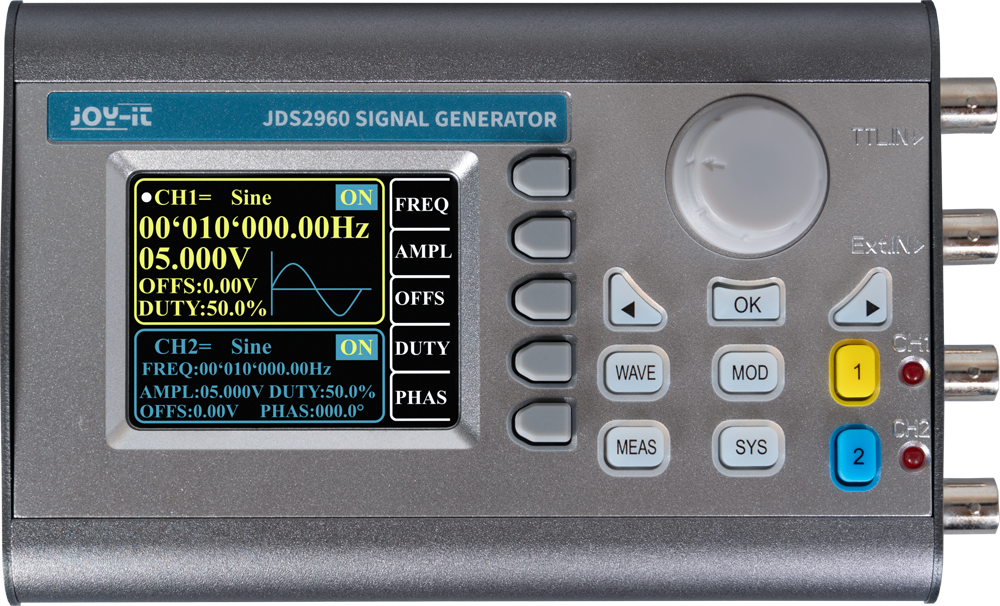

- Display: 2.4 inch TFT color LCD screen
- Operating temperature: 0°C to 40°C, humidity <80%
- Dimensions: 130 x 160 x 38 mm
- Weight: 900 g

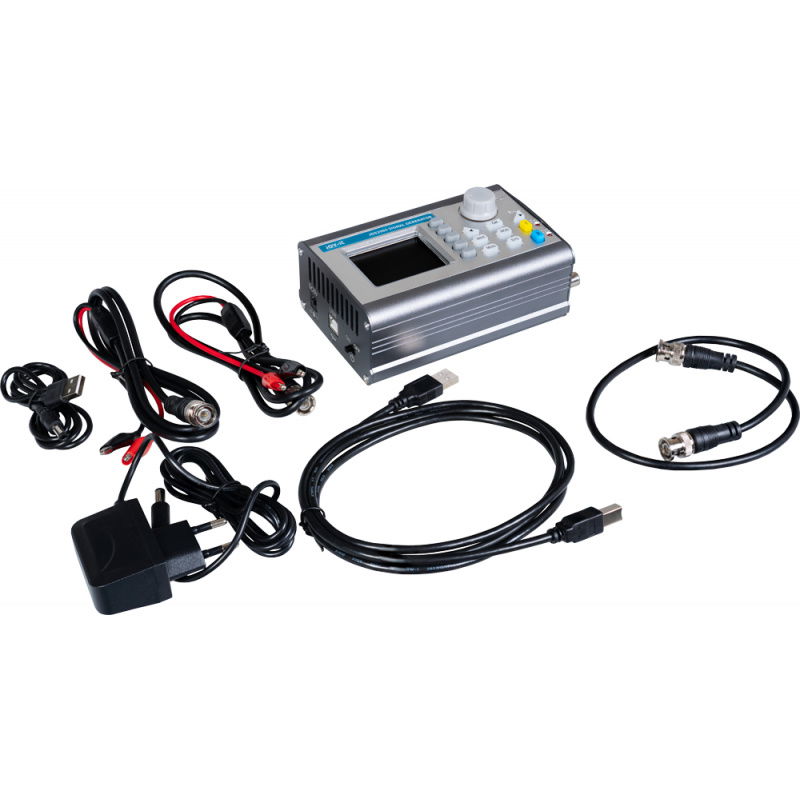

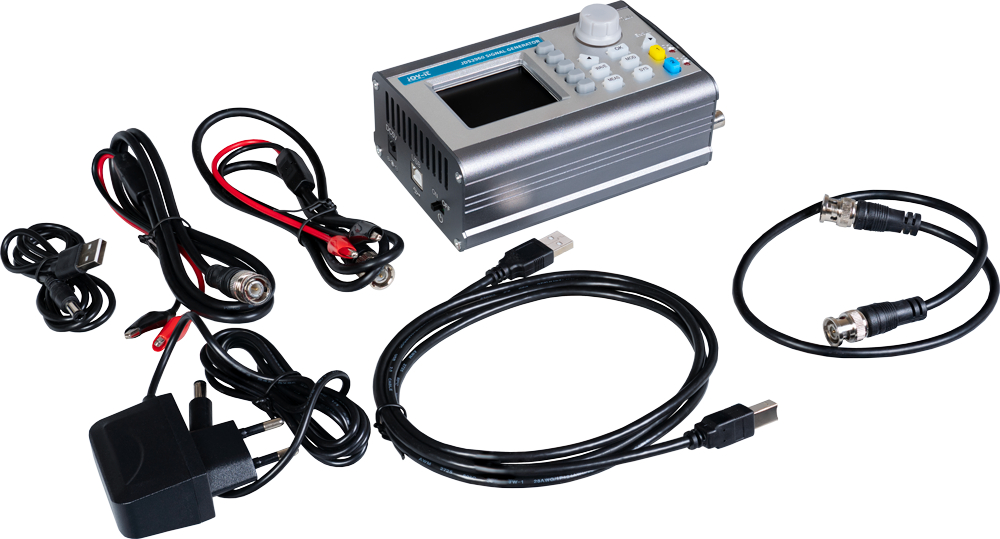

Kit Contents
- 1x JT-JDS2960 60MHz Function Generator - 2 Channels
- 1x Power supply
- 1x BNC to BNC Cable
- 2x Crocodile cables
- 1x USB to DC Power Cable
- 1x USB cable
