Product description: Zamel Supla ZSP-01 - set for controlling water underfloor heating - LLM-01 control strip + SOP-01 actuators - 230 V
The Zamel ZSP-01 kit for controlling water underfloor heating was designed for modern and energy-efficient heating system management. It includes an LLM-01 wired strip and eight SOP-01 thermoelectric actuators . The entire system is based on precise temperature control using wired thermoregulators operating within the Supla ecosystem. This facilitates integration with a smart home and enables remote control via a mobile app.

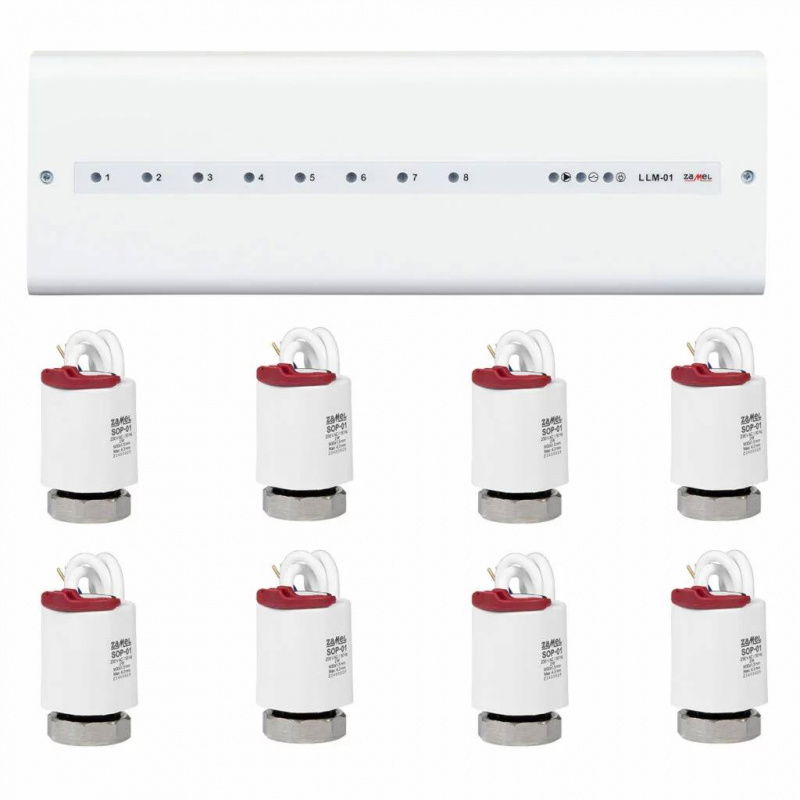

Zamel Supla ZSP-01 - kit for controlling water underfloor heating - LLM-01 control strip + SOP-01 actuators - 230 V.

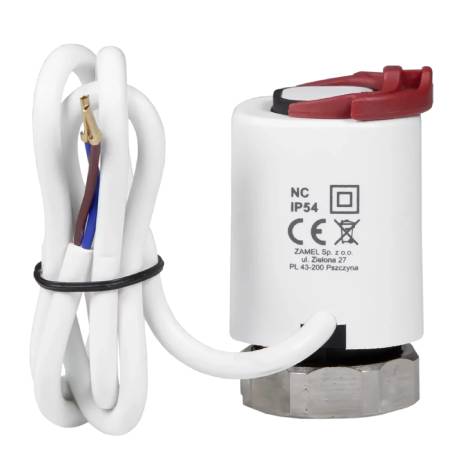

Thermoregulatory actuators are used to control the flow of the heating medium.
Main features of the set
- Support for up to 8 independent heating zones: each with the possibility of connecting up to 6 actuators
- Remote control: temperature control via the Supla app
- Full automation: control of the circulation pump and heating boiler
- Safe operation: NC actuators block flow in the event of a failure
- Low energy consumption: power consumption of the strip is only 4 W, actuators approx. 2 W
- Intuitive installation: strip for TH35 rail or surface mounting, actuators with M30 x 1.5 mm thread
Functional control strip and energy-saving actuators

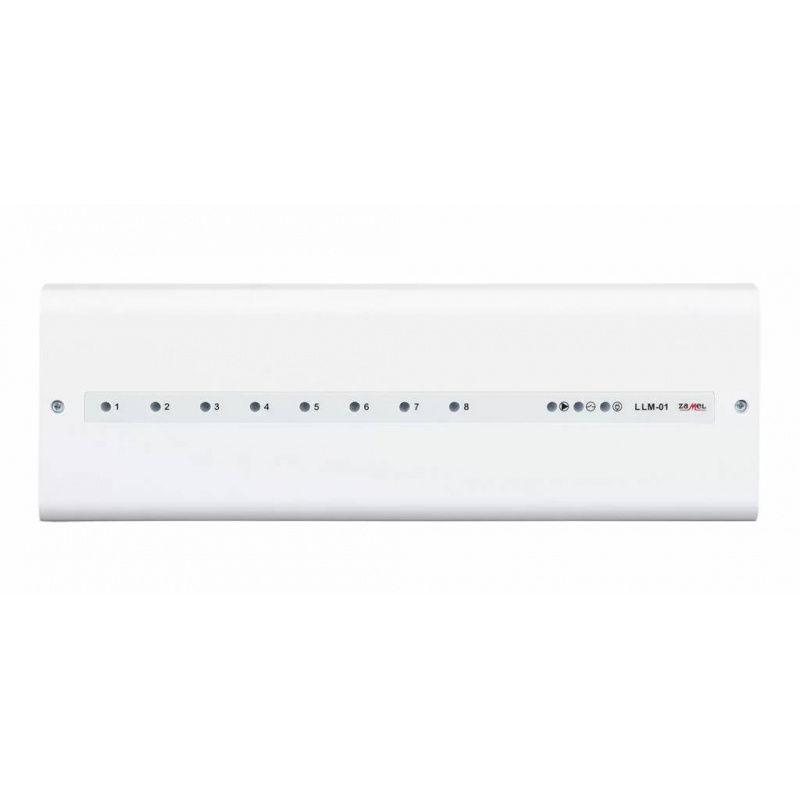

The LLM-01 strip is the system's central module, responsible for logical control of heating zones, the circulation pump, and the boiler . It works with wired thermoregulators and supports up to 8 zones , each with up to 6 actuators. It features visual status indication for the zone, pump, and boiler. SOP-01 actuators are thermoelectric actuators (NC type) that precisely open or close valves in the underfloor heating manifold . Their installation is quick and tool-free, and the M30 x 1.5 mm thread ensures broad compatibility.

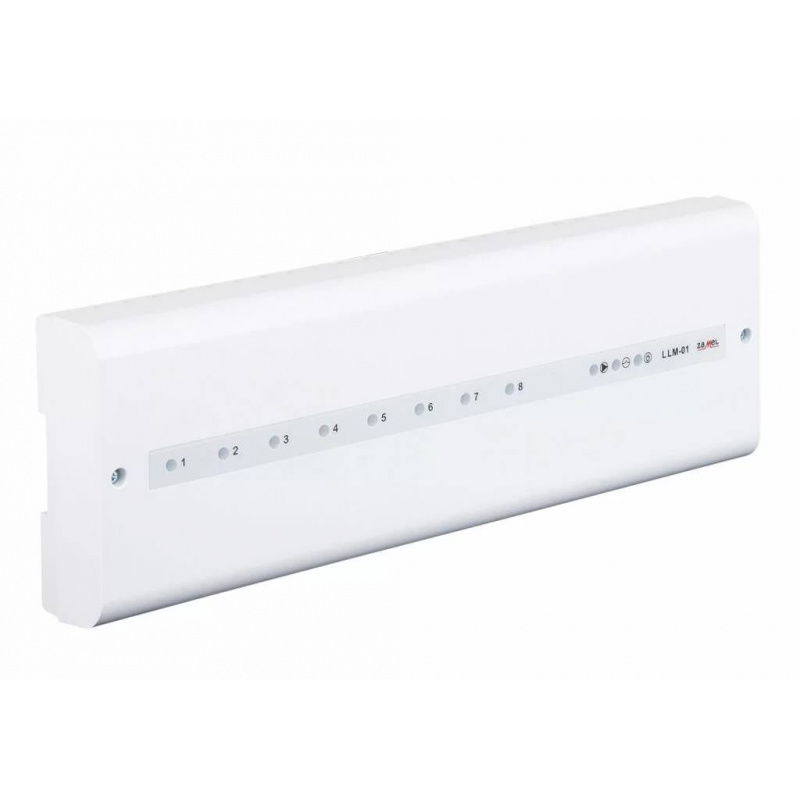

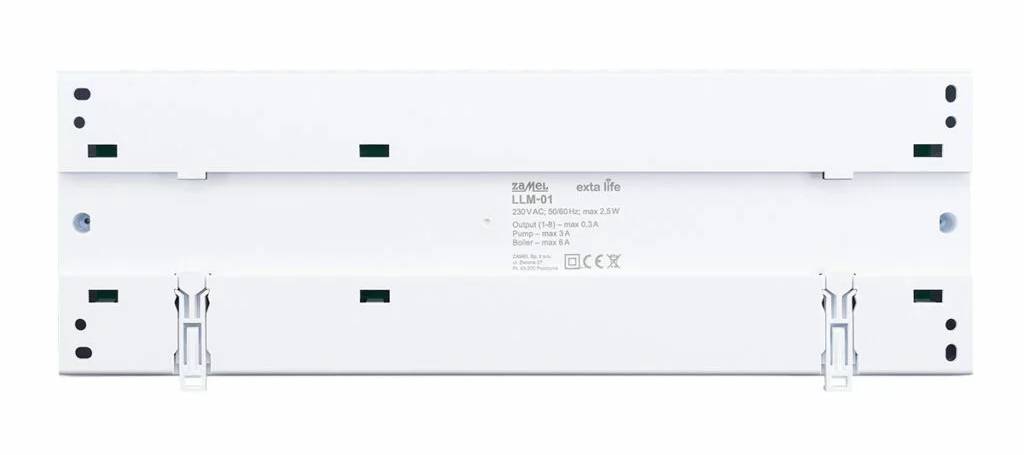

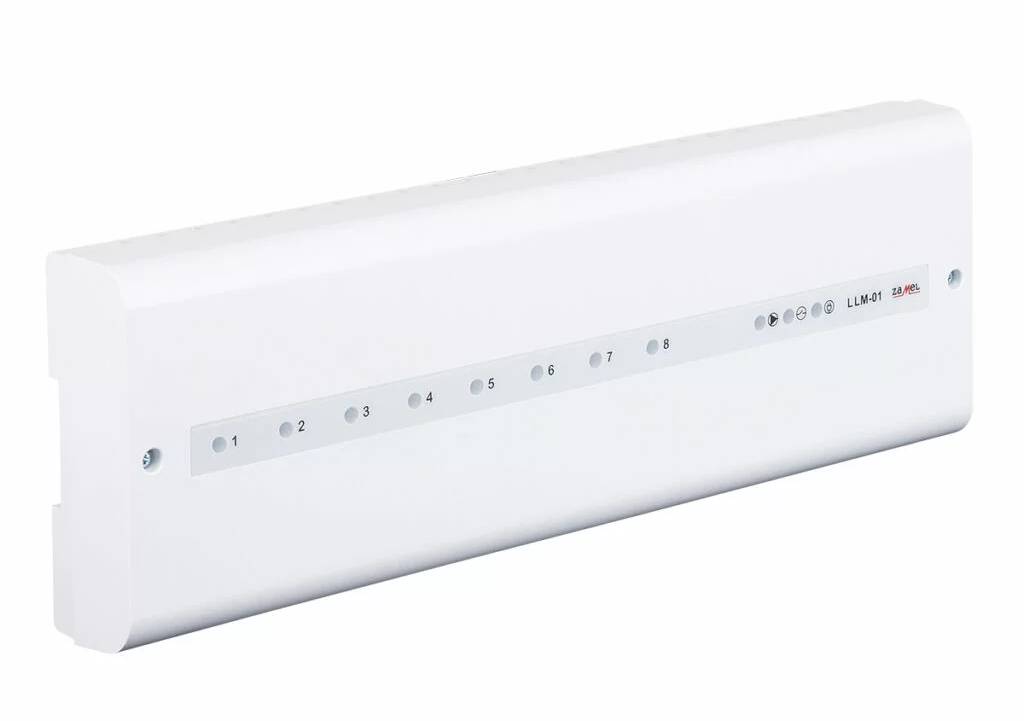

The strip is designed for installation in distribution boxes using a TH35 rail or surface mounting.

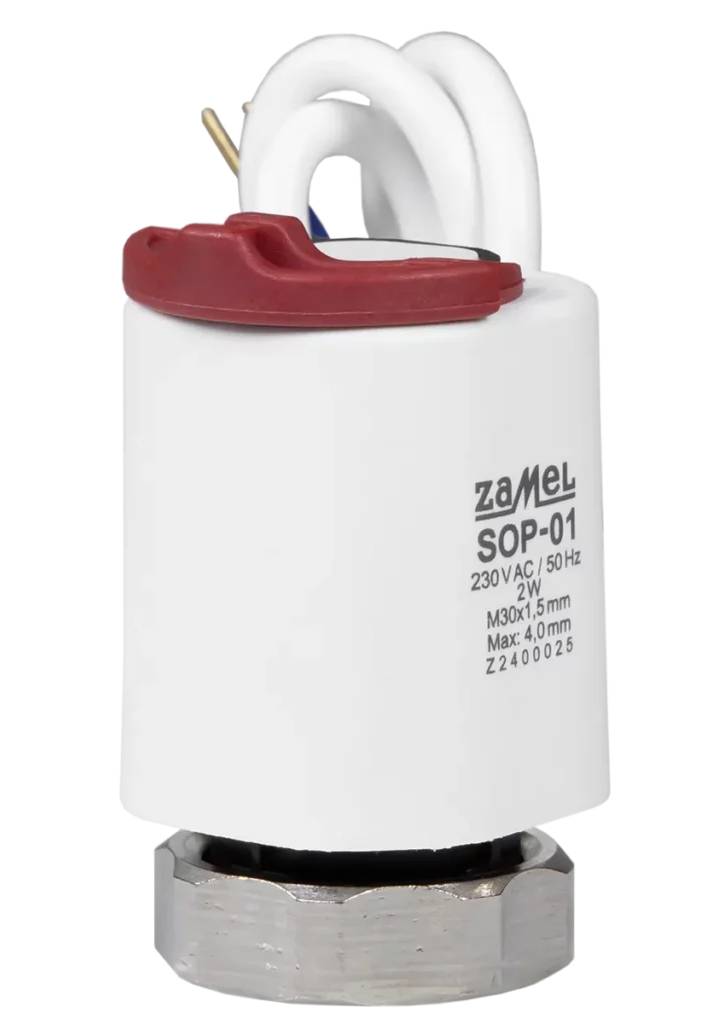

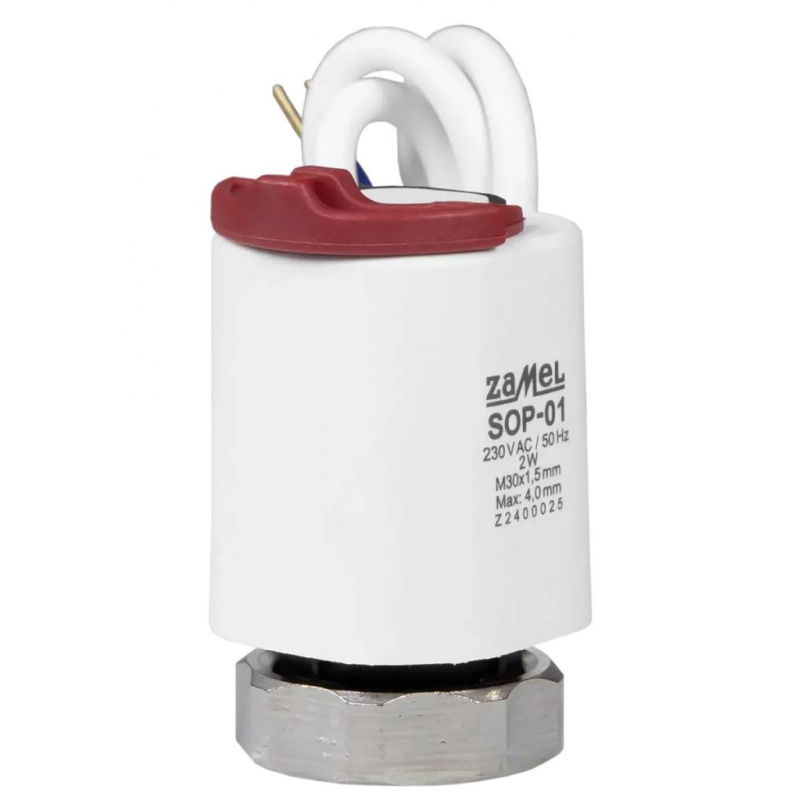

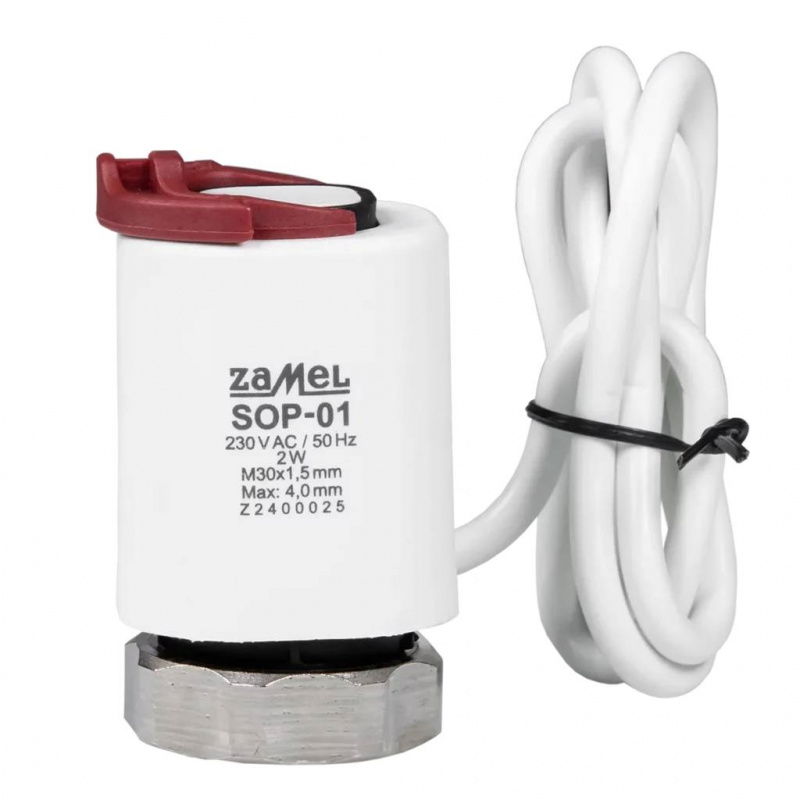

The actuators have an M30 x 1.5 mm mounting thread.
Control via the Supla application and simple installation
The ZSP-01 kit is compatible with the GKW-01 and GKW-02 thermostats , and the entire system operates within the popular Supla ecosystem . Configuration is performed via a mobile app, where you can set schedules, heating zones, and monitor device status . The strip can be mounted on a DIN rail (TH35) or directly in a distribution box. Labeled cables and a modular design ensure smooth and hassle-free installation.
Technical specifications of the set
- Power supply: 230 V AC ±10%
- Power consumption of the strip: 4 W
- Number of zones: 8 (up to 6 actuators per zone)
- Zone output load: max 0.3 A
- Pump output load: max. 3 A
- Boiler output load: max. 6 A (NO / COM / NC)
- Actuator type: SOP-01, NC (Normally Closed)
- Actuator power supply: 230 V AC ±10%
- Actuator power consumption: ~2 W
- Actuator thread: M30 x 1.5 mm
- Actuator stroke: 4 mm
- Operating temperature: -20°C to 50°C
- Degree of protection: LLM-01: IP20, SOP-01: IP54
- Strip dimensions: 325 x 115 x 37 mm
- Actuator dimensions: 62 x 36 x 36 mm
- Weight: LLM-01: 578 g, SOP-01: 120 g
Contents of the set
- 1x LLM-01 Cable Strip
- 8x Thermoelectric actuator SOP-01

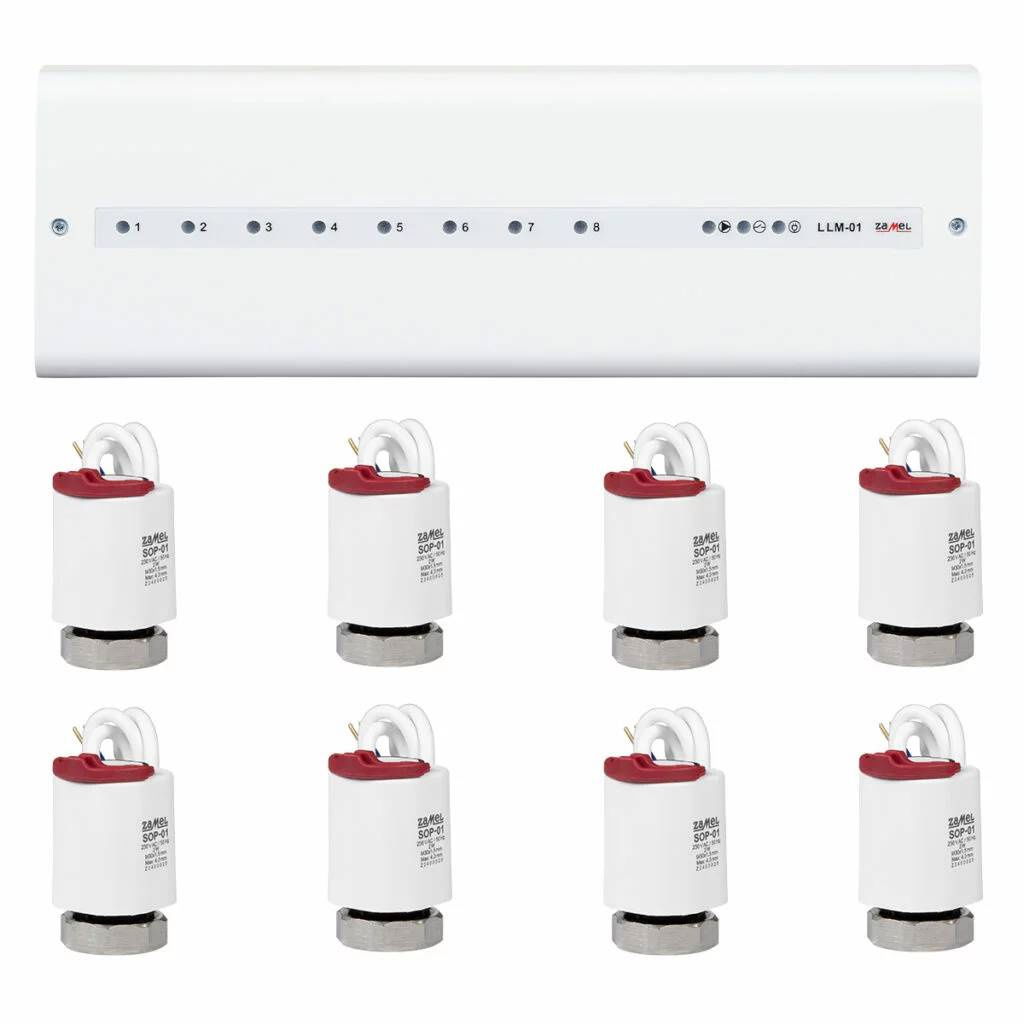

Elements included in the set.
