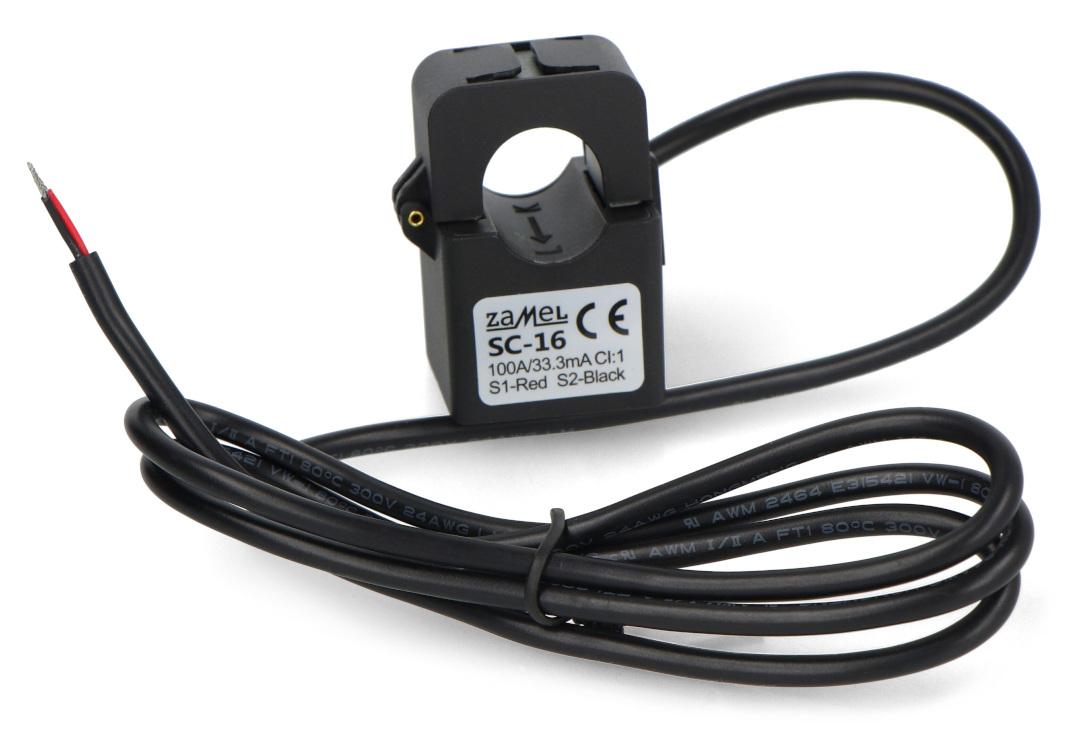

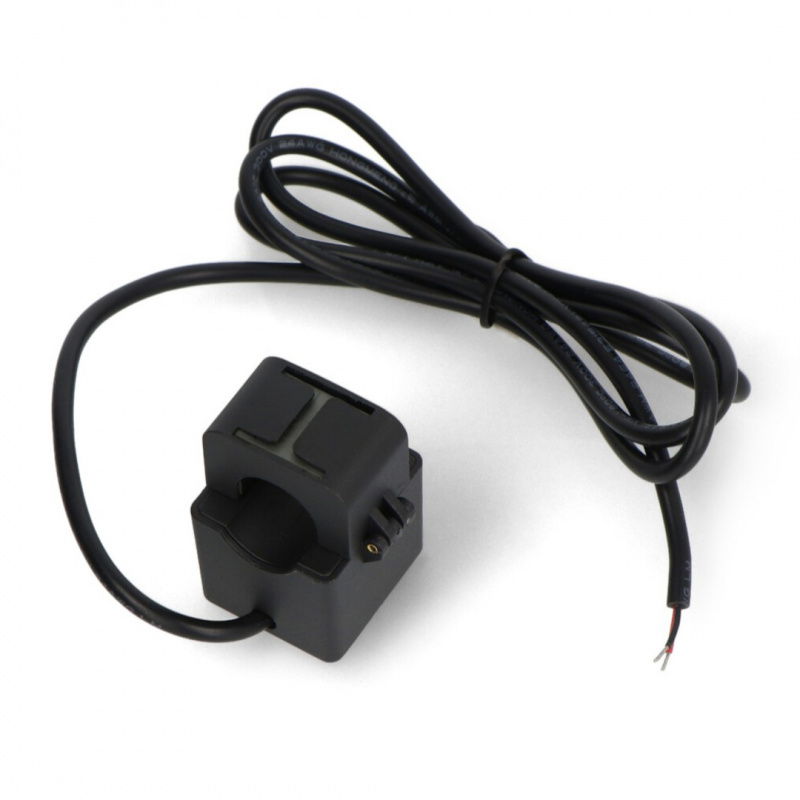

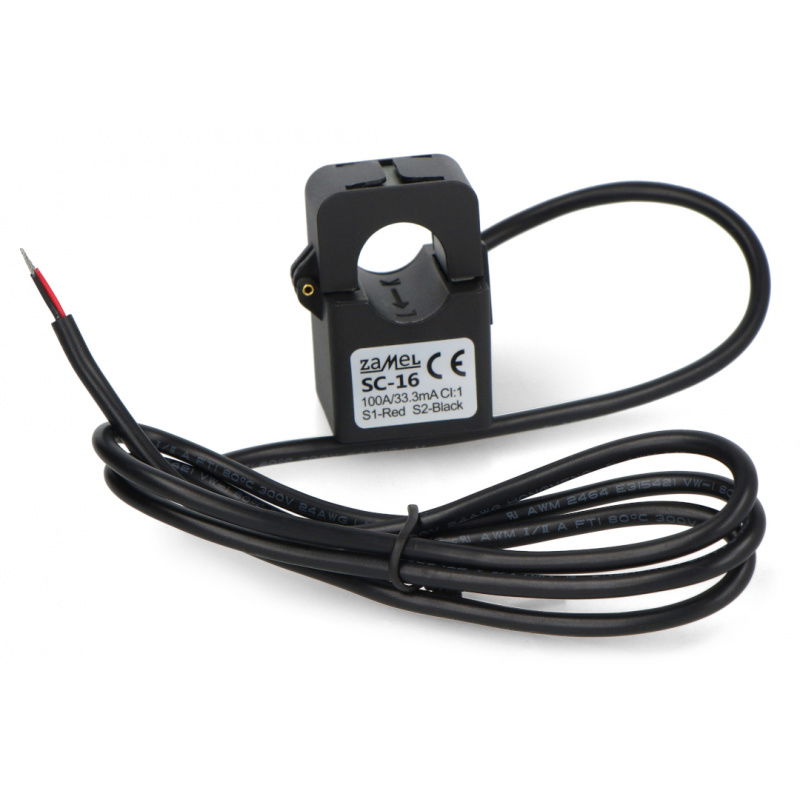

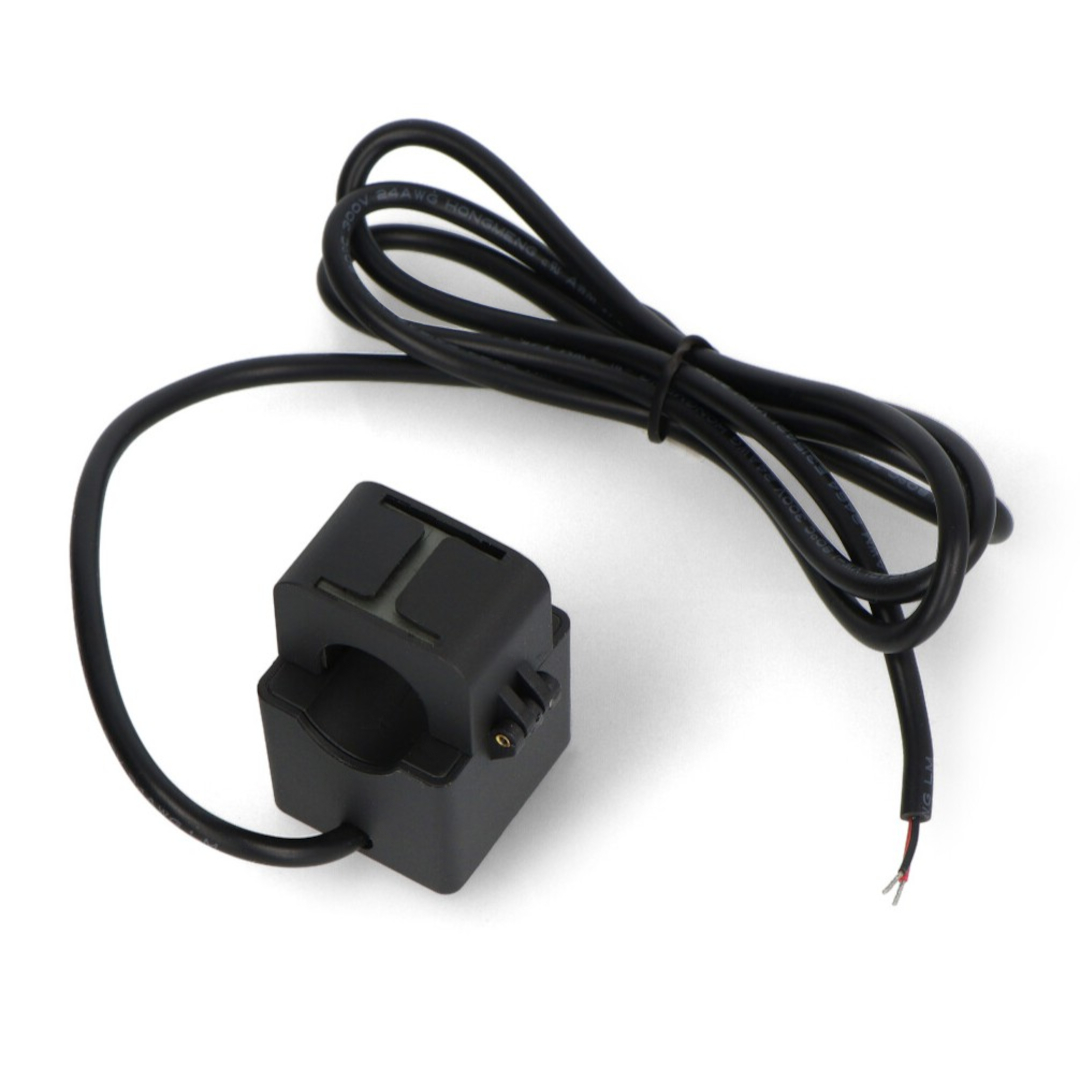

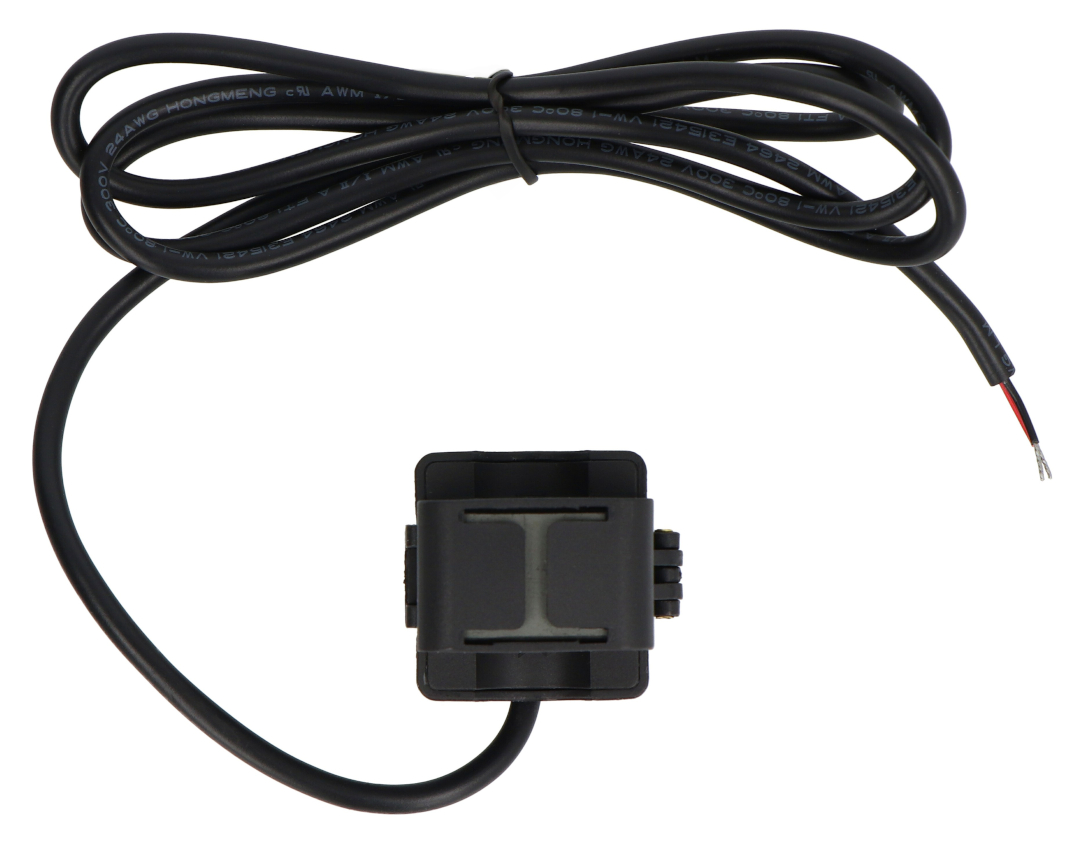

Product description: Current transformer for MEW-01 - 100 A / 33.3 mA - WiFi - Zamel SC-16
The Zamel SC-16 current transformer is a reliable device for accurately monitoring energy consumption in three-phase systems . It is designed to work with the MEW-01 monitor , which enables wireless data transmission to a mobile app or the Supla Cloud panel . This easy-to-install device requires no additional wiring or telecommunications costs. The SC-16 provides precise energy consumption measurements and allows data export in popular formats (XLS, ODS, HTML, CSV). It also supports integration with API and MQTT systems, enabling effective energy consumption monitoring and report generation.
A maximum of 3 transformers can be connected to the MEW-01 monitor.

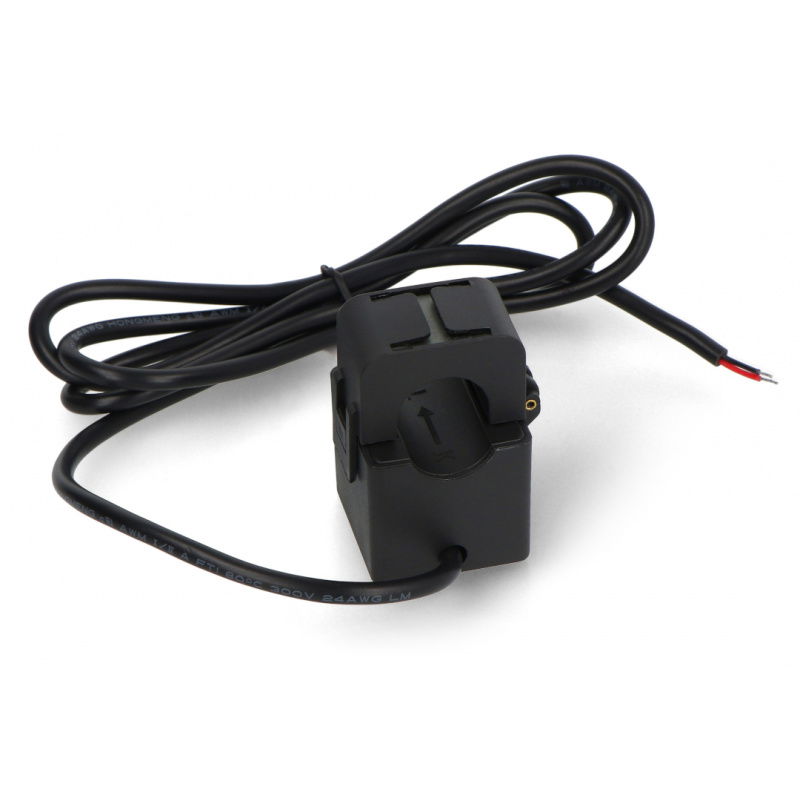

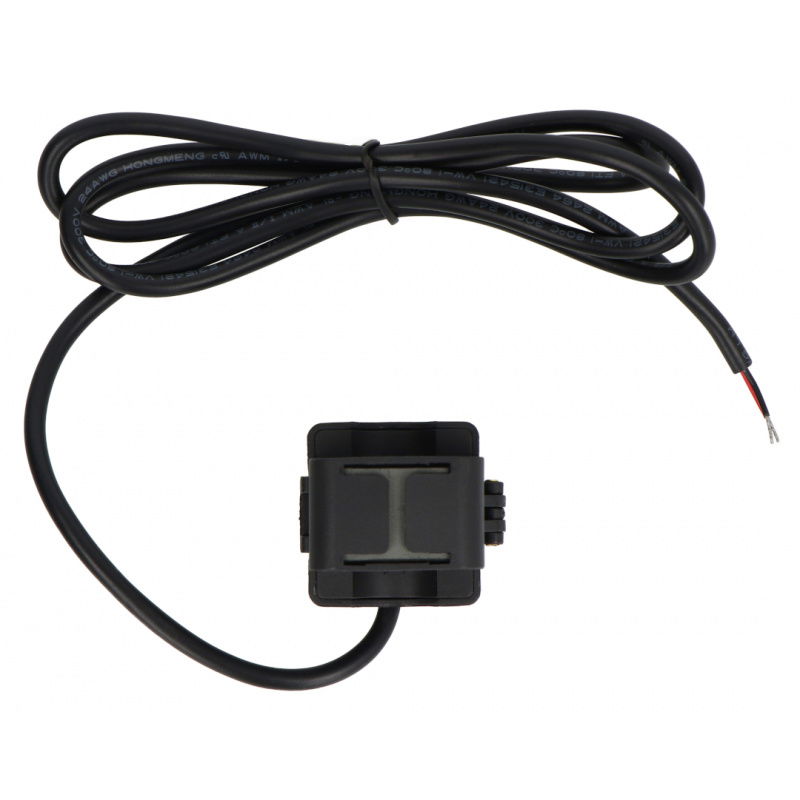

Current transformer for MEW-01 - 100 A / 33.3 mA - WiFi - Zamel SC-16.

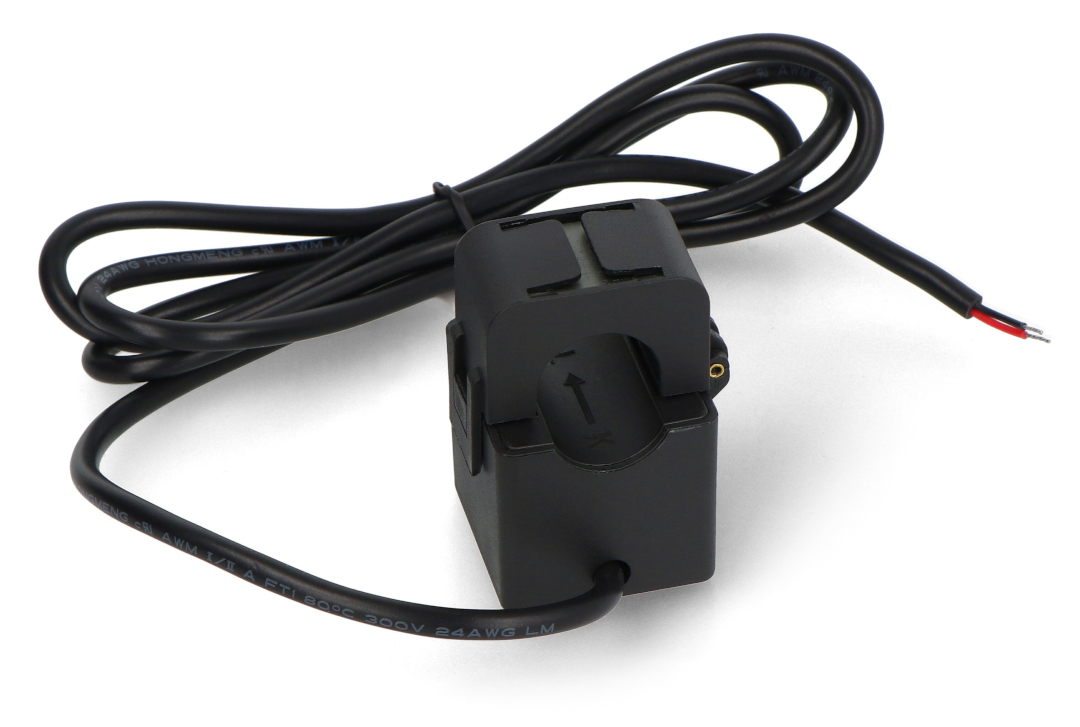

The SC-16 current transformer for MEW-01 enables energy consumption control via the WiFi network.
Main features of a current transformer
- Compatibility with the MEW-01 monitor : allows you to expand the measurement capabilities of the monitor, providing precise control over electricity consumption
- Data analysis in the mobile application : the transformer allows you to monitor energy consumption in real time and export data to popular formats such as xlsx, ods, html, csv
- Wireless communication via WiFi : facilitates integration and control of energy consumption without the need to install additional electrical infrastructure
- API and MQTT integration support : allows for advanced integration with other energy management systems
- Precise measurement accuracy : Accuracy class 1, ensuring exceptional precision in energy consumption measurements
How does the SC-16 current transformer work?
The SC-16 current transformer works in energy consumption monitoring systems, enabling current measurement in three-phase installations . Using WiFi technology, the device wirelessly transmits data to a mobile app or the Supla Cloud panel , allowing for real-time monitoring of energy consumption in any electrical installation. This is a reliable solution for energy management systems, offering high accuracy and ease of use. The SC-16 transformer integrates with popular systems such as API and MQTT, enabling advanced real-time energy monitoring and control. Additionally, exporting measurement data to formats such as .xlsx and .csv enables easy reporting and analysis in various work environments.
The kit allows you to analyze measurements in the mobile application and the Supla Cloud panel.
SC-16 allows you to export data in popular formats: xlsx, ods, html, csv.
Technical specifications of the SC-16 transformer
- Maximum continuous primary current: 100 A
- Secondary current: 33.3 mA
- Accuracy: Class 1
- Insulation voltage: 0.66 kV
- Frequency: 50 Hz to 60 Hz
- Operating temperature: -15°C to 60°C
- Cable hole diameter: 16 mm
- Transformer cable length: 100 cm
- Dimensions: 45 x 34 x 31 mm
- Weight: 89 g
Contents of the set
- 1x Current transformer SC-16
